Universal Radiators

As well as offering High Performance Direct Fit upgrade radiators for many makes and models, CSF also manufactures Universal fit radiators designed for custom builds and Motorsport applications such as drift, drag and highly modified street cars.



All making use of the CSF B-Tube Technology for outstanding performance and low weight.


CSF Part No: Length (MM) Height (MM) Depth (MM) Inlet Outlet Notes
CSF-2858X 349.25 406.40 Slip-on 34.93 or AN-16 Slip-on 34.93 or AN-16 - Includes shroud
- Includes 12" SPAL fan
- Includes Slip-On & AN Fittings
- Direct fit for EVO 7/8/9 & Civic 92-00 (half size)

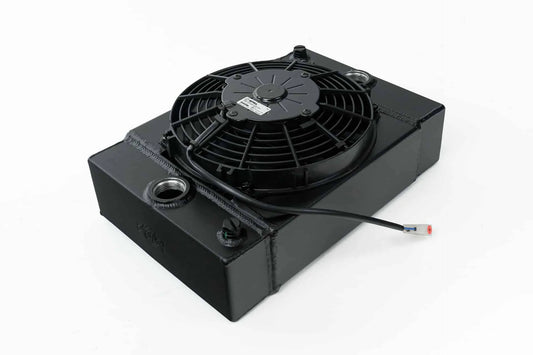

CSF-7065 254 368.3 91.44 (without fan)
143.51 (with fan)
Slip-on 31.75mm
or -16 		Slip-on 31.75mm
or -16 		- Both Slip-on & AN fittings included
- SPAL Fan included

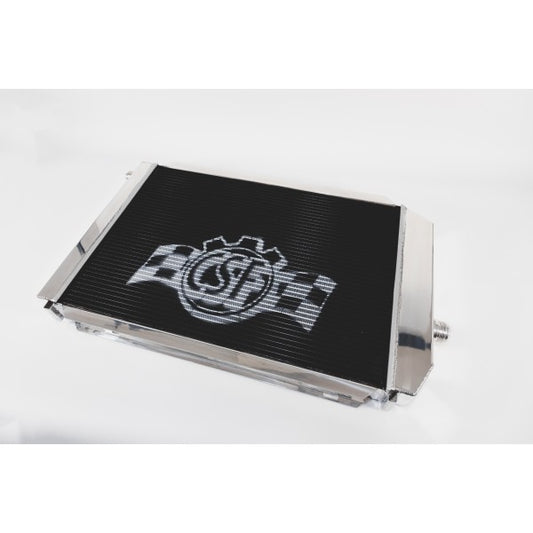

CSF-8023 682.62 427.03 55.03 AN-16 AN-20 Triple Pass
CSF-8024 609.60 228.60 52.38 Slip-on 31.75mm
or -16		 Slip-on 31.75mm
or -16		 - Both Slip-on & AN fittings included
- Derale Fans optional

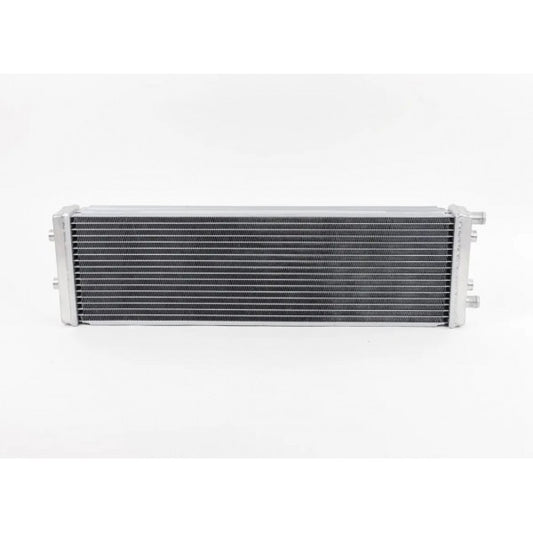

CSF-8030 635 184 64 Slip-on 19.05 Slip-on 19.05 - Dual-Pass
- CNC mounting points
CSF-8049 609.6 336.55 52.38 Slip-on 31.75mm
or -16		 Slip-on 31.75mm
or -16		 - Both Slip-on & AN fittings included
- Derale Fans optional
CSF-8052 541.33 379.33 Slip-on 19.05 Slip-on 19.05 - 1 row

Build quality and performance is great

“Used these radiators to keep my track Porsche cool and also my supercharged E39 in check. Build quality and performance is great, so much so that I've got the engine oil cooler, DCT cooler, power steering cooler and radiator for my E92 M3.”

Ryan Stewart
