With the Gen 1 B58 powered BMWs getting a little bit older, more tuners and enthusiasts are picking them for competition. This has greatly increased the demand for more motorsports grade products for more power and reliability. Many vehicles are pushing well over 600 horsepower and needing additional fuel and cooling to reach their power goals. The CSF "Super Manifold" is the all in one solution for proven performance and the largest feature set in the industry.

The OEM charge-air-cooler manifold for the B58 engine is adequate in cars with little or no modifications. However, it starts to really its weaknesses in cars that have bolt-on modifications, turbo upgrades, increased fueling (such as port injection), and performance tuning. In addition, the OEM intercooler system has been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, and drifting, as well as spirited driving on the street. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs). This can send the car into "limp mode" once temperatures reach a certain threshold. In high boost applications the OEM manifold is also prone to failing at the crimp on gasket joining of the core and tanks.

CSF's experience with the Gen 2 B58 has led to many industry leading standard features that also appear on the new Gen 1 manifold. Many of these have been developed with testing and feedback from industry partners, sponsored race teams, and engineering collaborations. Each kit includes everything you need to take your BMW to the next level.

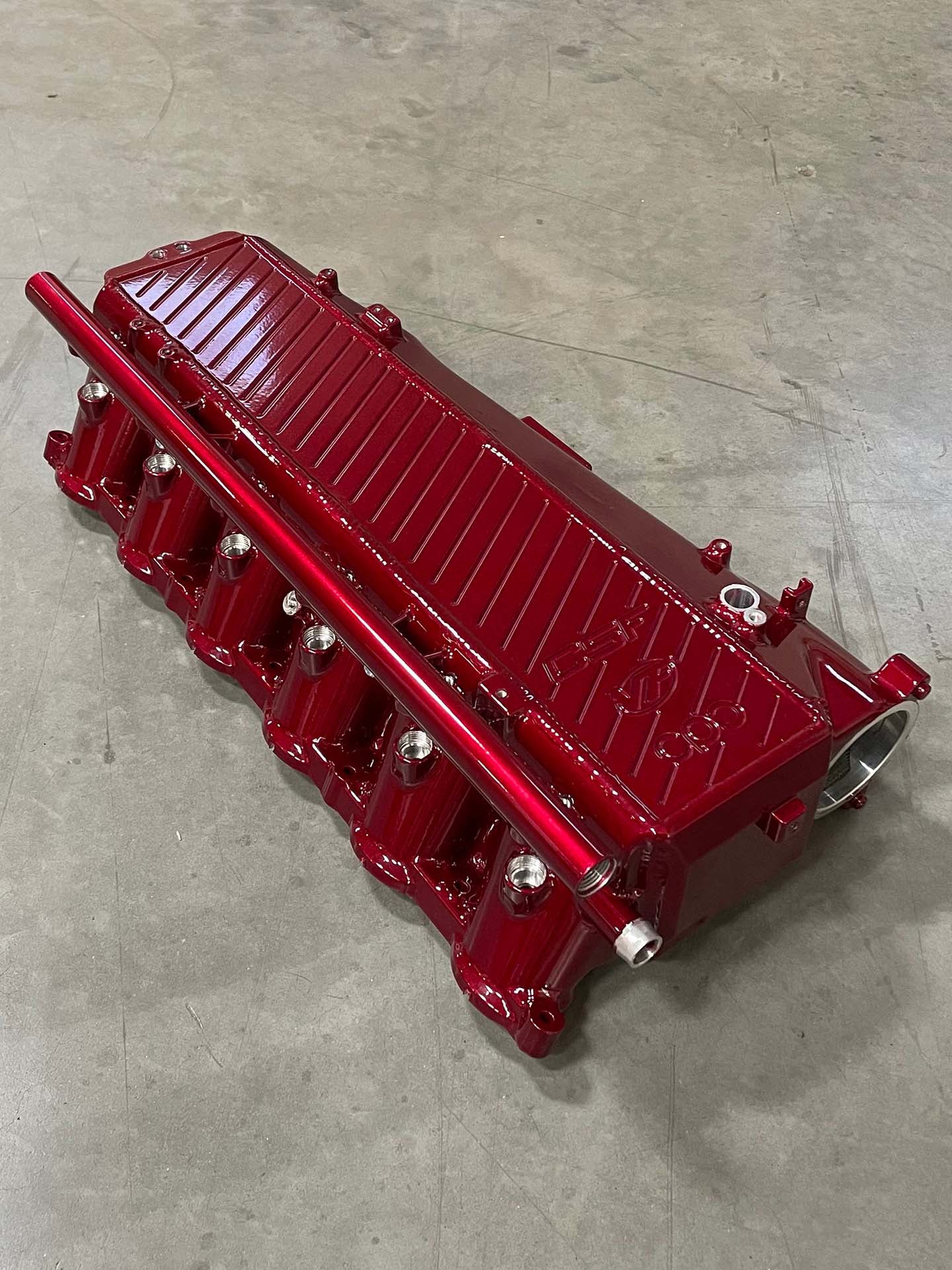

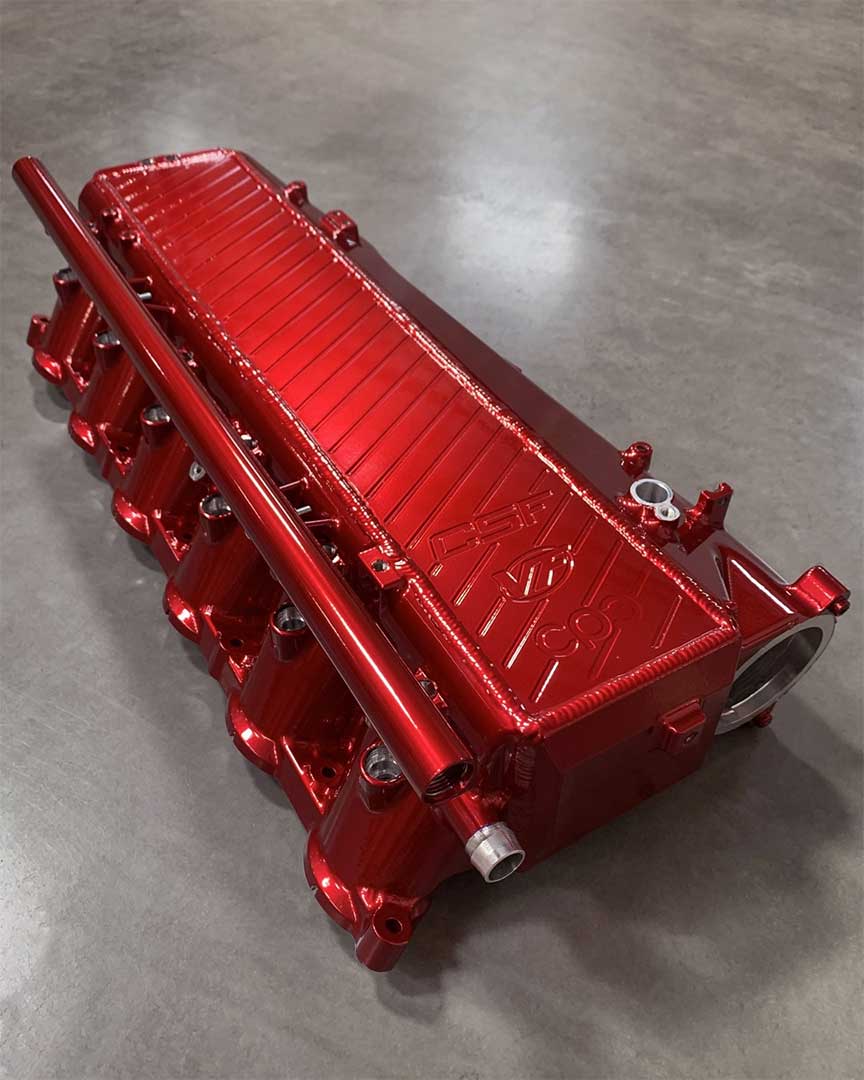

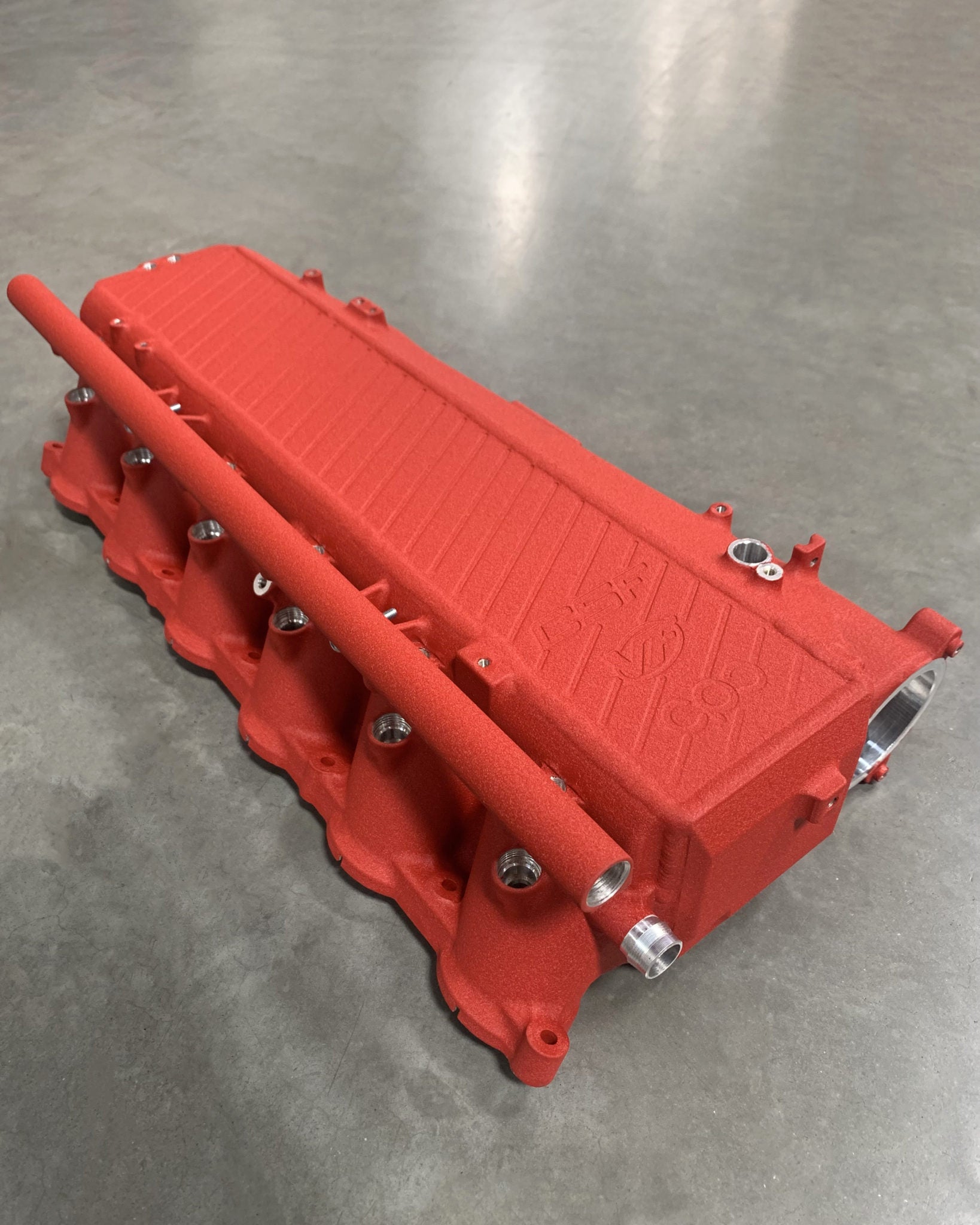

Top Feed Port Injection with Included Fuel Rail & Individual Nitrous / Methanol Injector Ports: The CSF Manifold includes an extruded fuel rail which can be attached to the outlet side of the manifold. The AN-8 fuel rail comes with feed and return -8 internal hex plug fittings from Radium Engineering for a plug and play installation. A 1/8th NPT port on each cylinder runner can be used for nitrous or methanol injection. The CSF manifold allows for maximum spray control and even spray distribution throughout the engine.

Vacuum and Parameter Pad: CSF has included a 3 port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The three 1/8th NPT ports can be plugged with the included hardware kit if they are not used.

Easy Access to Spin-Off Oil Filter With Counter Balanced Design: CSF incorporated a recessed design towards the back of the manifold that allows easy access to the spin-off oil filter. This means you do not have to remove your manifold every time you want to change your oil. While this design feature isn't unique to the CSF manifold, CSF is the only company to account for the airflow issues such a recess can create. CSF Engineers designed and tested a counter balanced protrusion using SolidWorks CFD software. This protrusion sits above the recess to offset the airflow tabulations. This feature ensures smooth air delivery into the rear of the core for the best possible cooling.

Air Inlet Divider: The inclusion of an air divider welded into the inlet side tank of the manifold is another exclusive feature of the CSF manifold. With the length of the manifold, the engineers at VF Engineering wanted to make sure that the volume and velocity of air was consistent to all cylinders. After extensive simulations in SolidWorks CFD software, an air divider was added to the design to ensure the best possible and equal cooling performance to each cylinder of the engine. Airflow to the back of the manifold (cylinders four, five, and six) should be equal to the airflow to the front of the manifold (cylinders one, two, and three) for the best possible performance.

Breather Ports for Inlet/Outlet of Water Tanks: Two 1/8th NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.

Thermal Rejection Competition Spacer: Made from KIYLEX®, a patented revolutionary high-performance final stage polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX® Intake Manifold Spacer for the B58 Motor.

The addition of the Thermal Rejection Spacer is especially useful for Drag/Roll-Racing Events where vehicles typically sit in staging lanes in-between racing. This causes extreme heat soak to the liquid-to-air manifold as there is not sufficient airflow passing over the front mount heat exchanger when the car is idling (which is responsible for cooling the charge air fluid that runs through the manifold). This causes the starting IATs on subsequent runs to be higher than on the initial run.

The CSF Manifold is made from Billet Aluminum and 100% TIG Welded for strength, which allows it to be able to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has higher thermal conductivity than plastic resulting in a higher rate of heat transfer between the cylinder head and manifold. Adding the Thermal Rejection Spacer reduces heat transfer between the two metal components (cylinder head & manifold). The spacer absorbs the heat from the cylinder head and dissipates it rather than transferring it to the manifold. The CSF Thermal Rejection Competition Spacer was designed for vehicles competing in motorsports who demand the absolute best cooling in order to gain a competitive edge. However, including this spacer offers significant advantages to any vehicle.

Hardware Kit, Well Thought-Out Instruction Manual: The supplied hardware kit includes several brackets, bolts, washers, and fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind.

Features

• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
• Significantly Lower Pressure Drop Across the Core Compared to OEM
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD) - Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Improved slotted mounting holes on throttle body side for easier installation.
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change - Counter Balanced Design for Optimized Airflow
• Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters
• Included Optional Fuel Rail for Top Feed Port Injection
• Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
• Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
• Plug-and-Play design, Requiring No Modifications to Install
• Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation

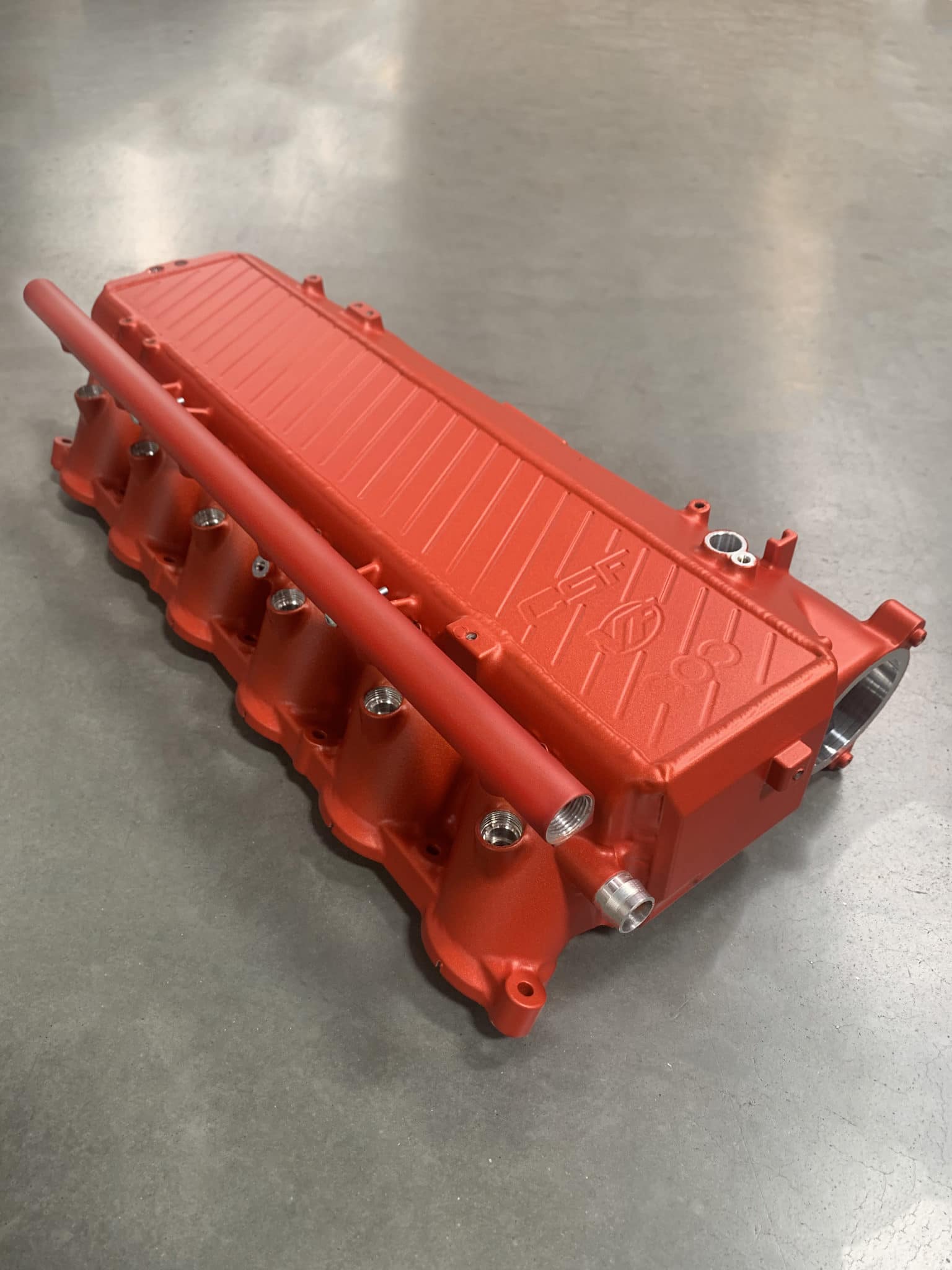

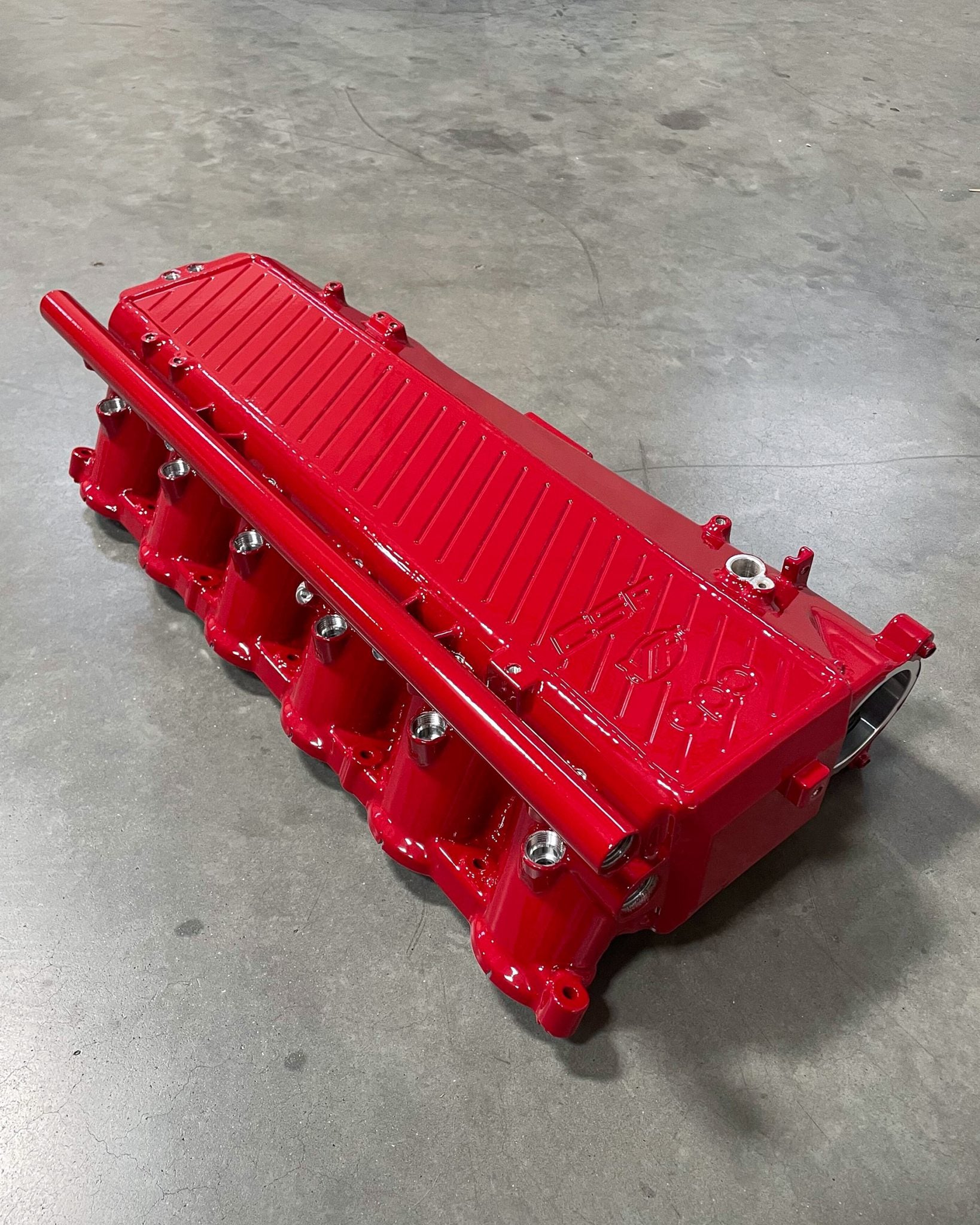

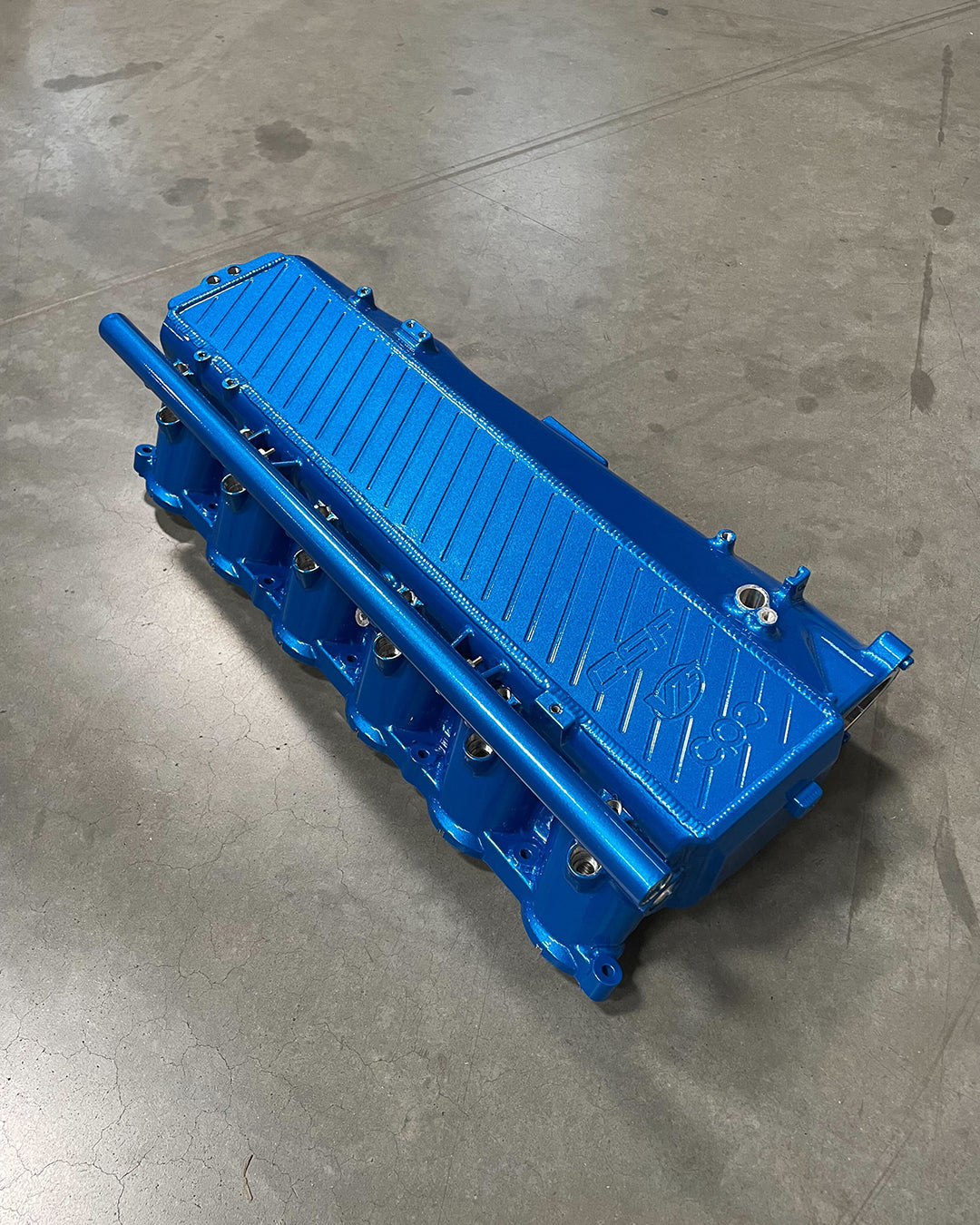

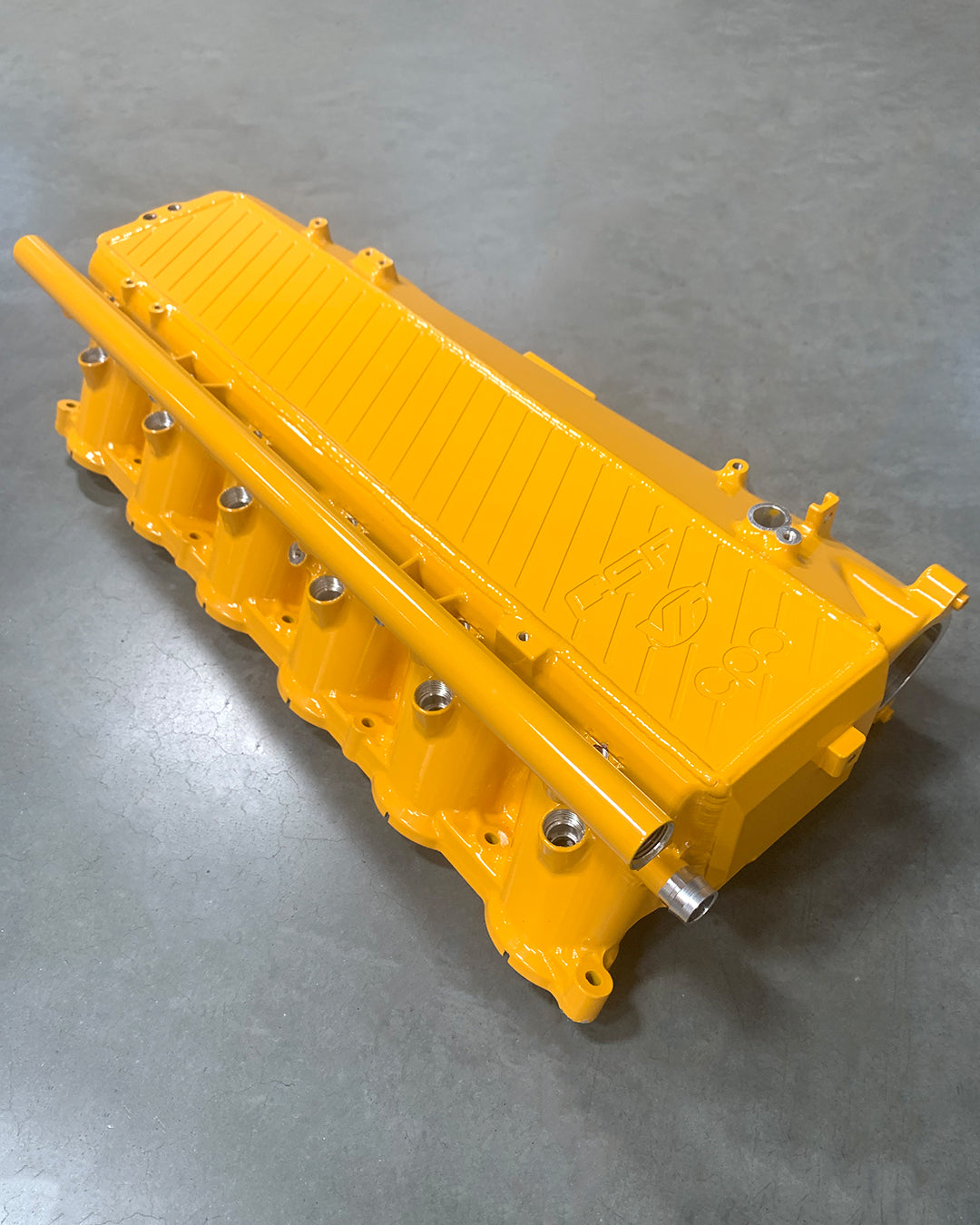

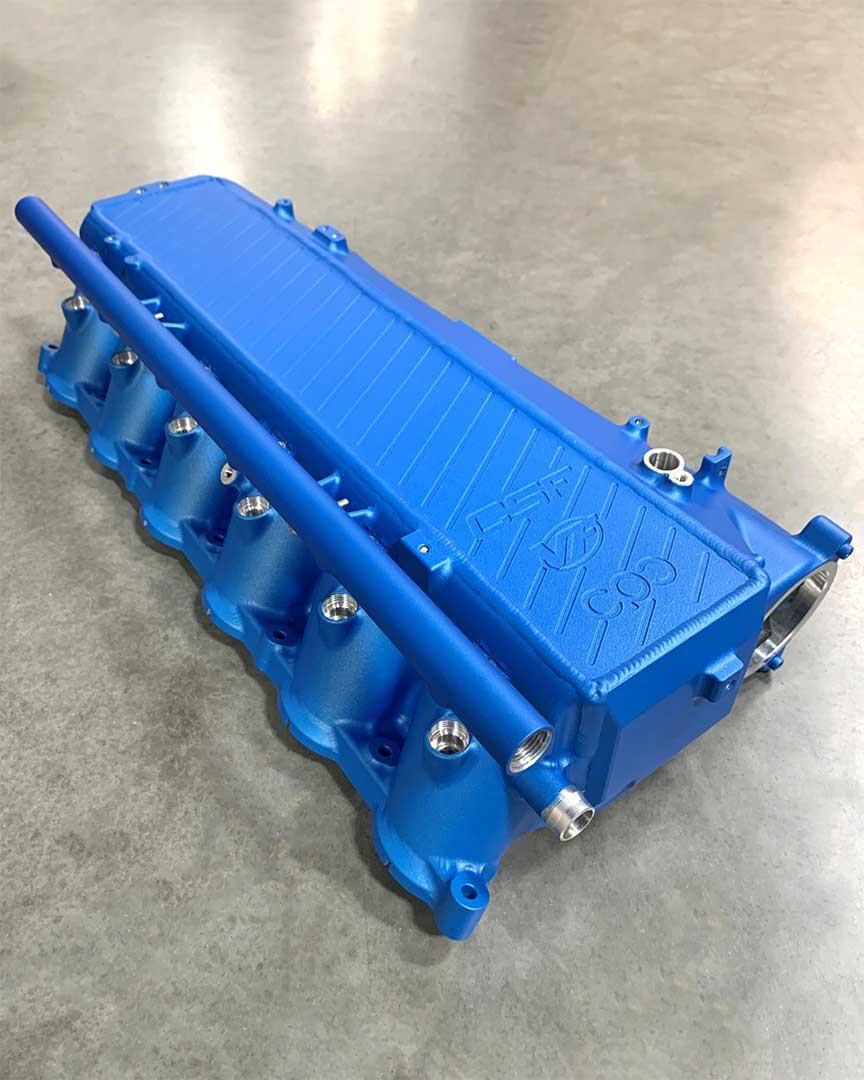

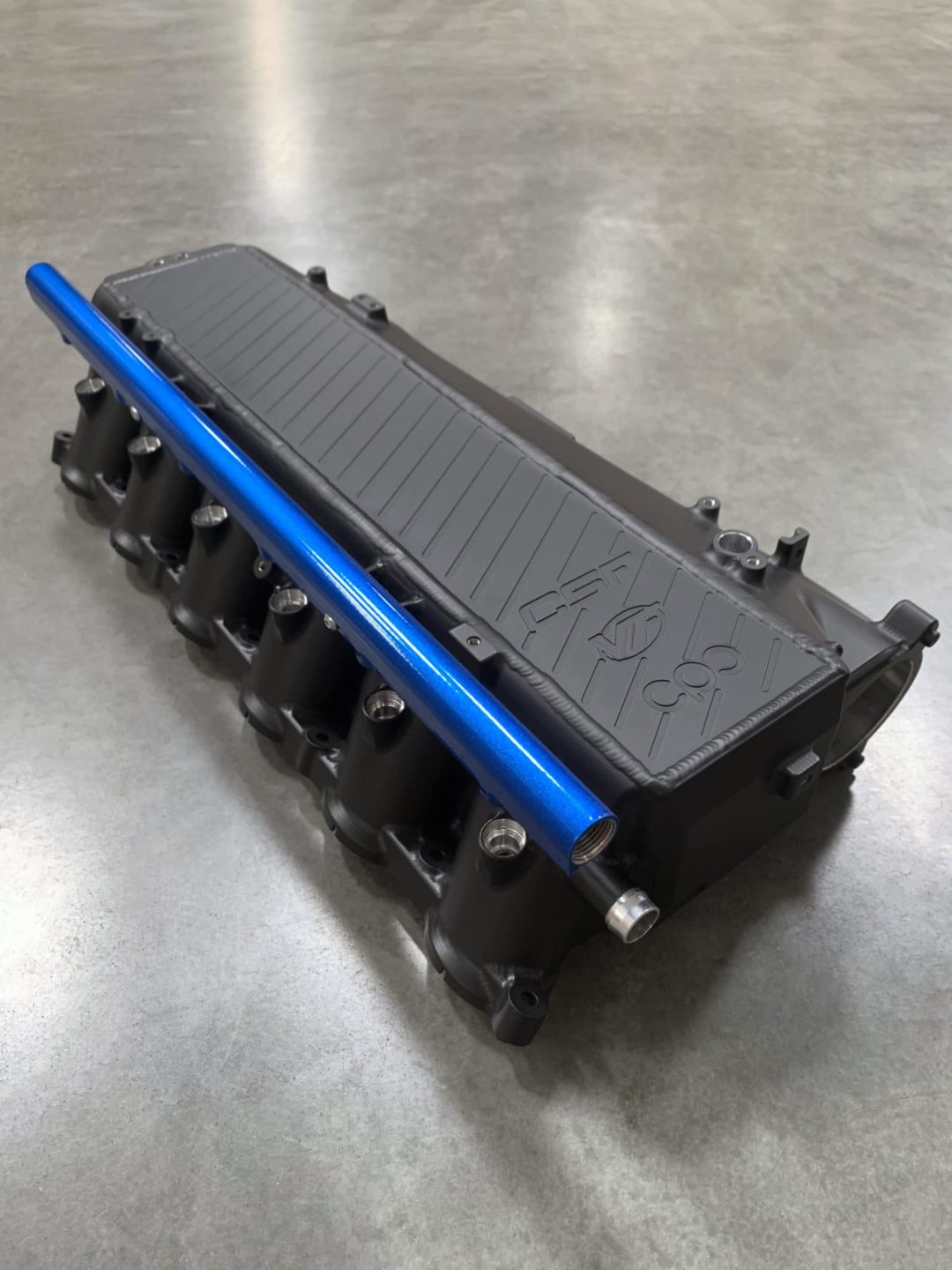

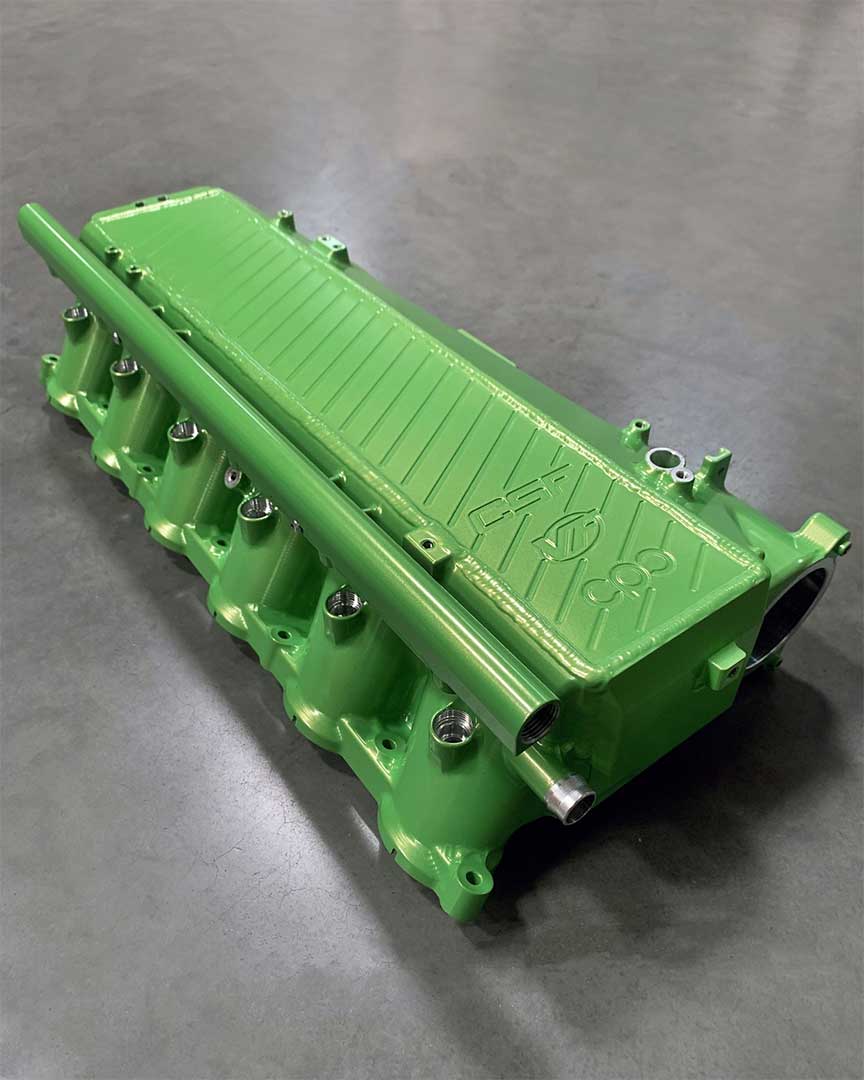

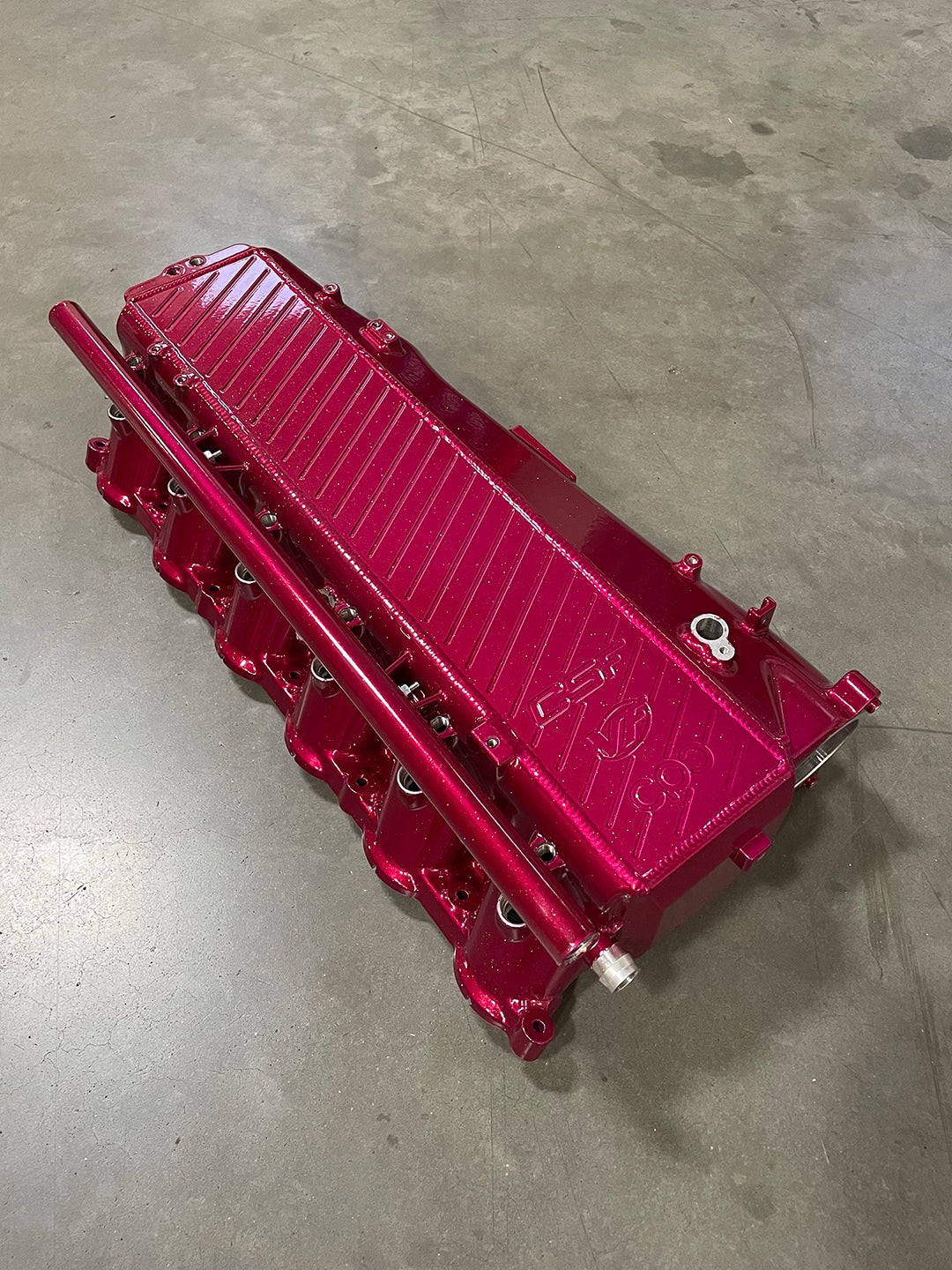

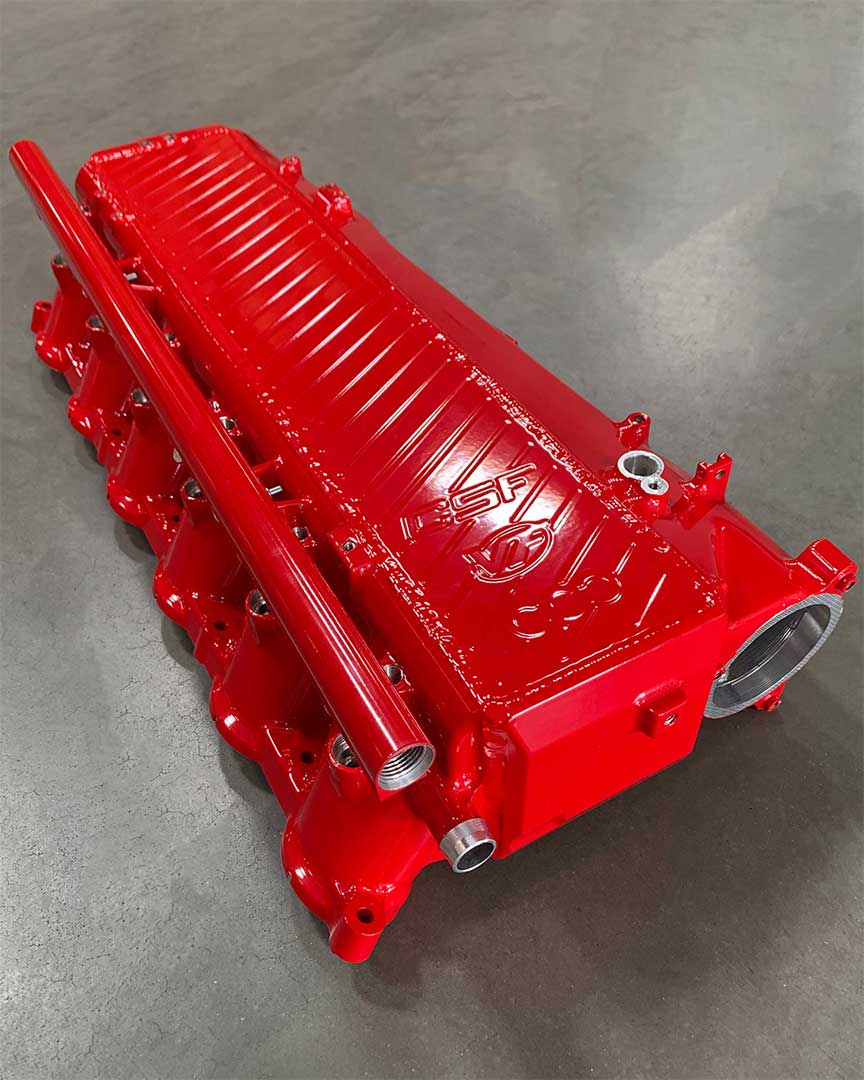

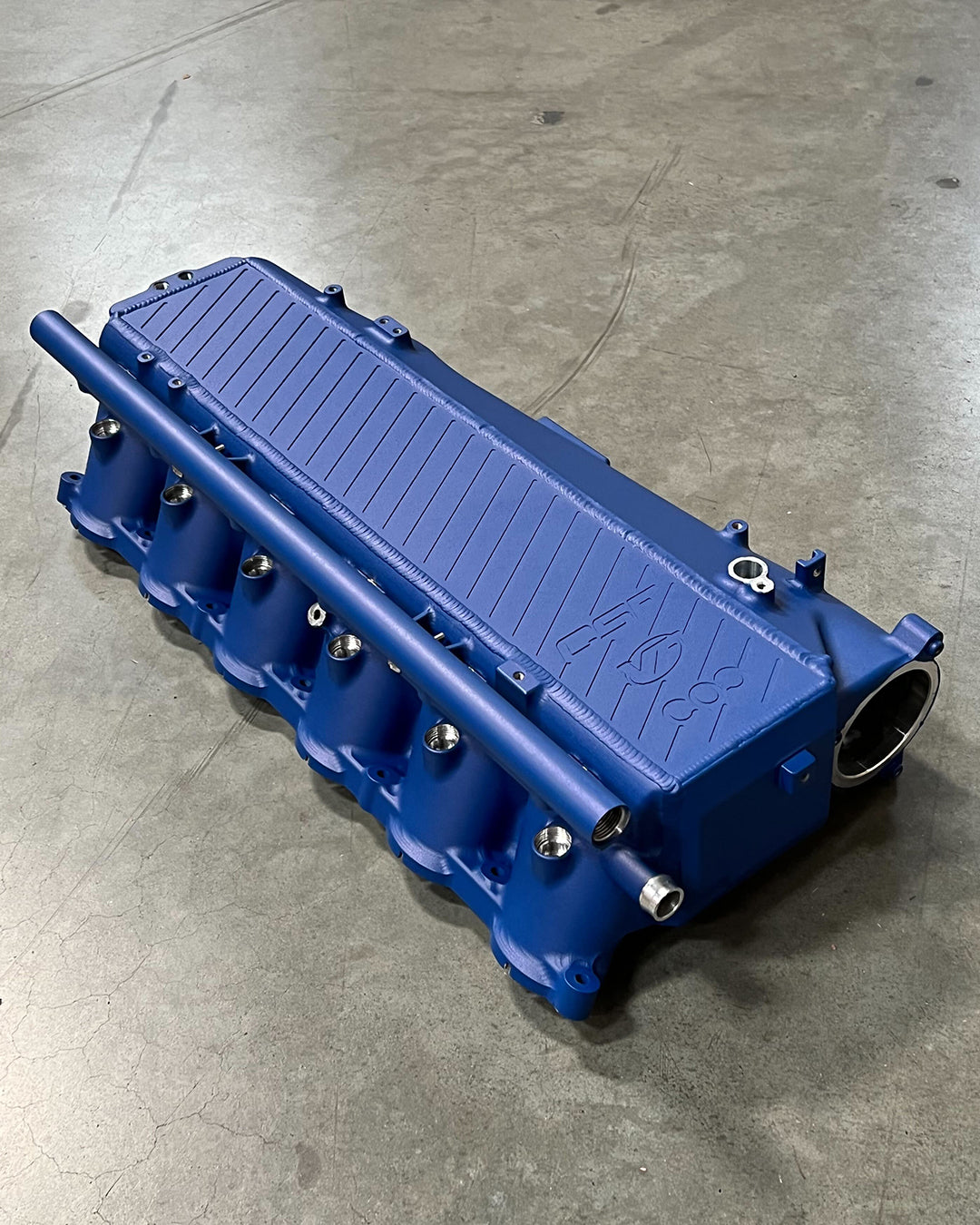

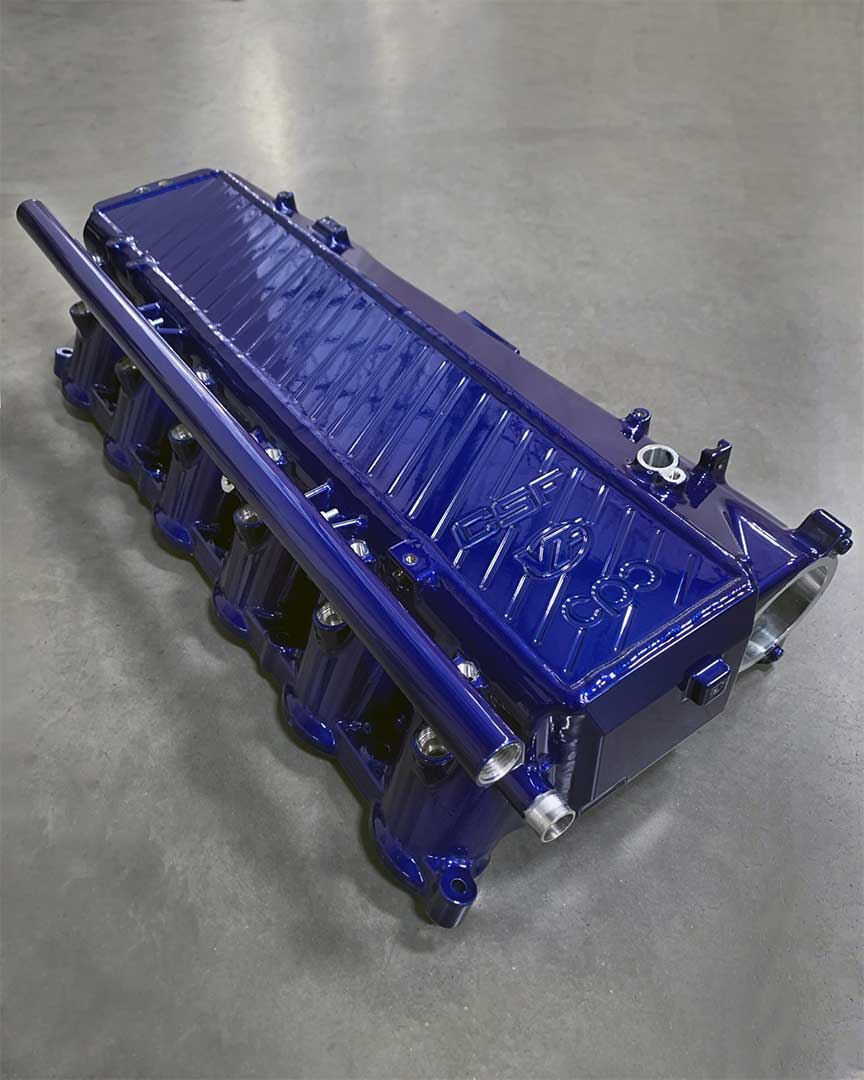

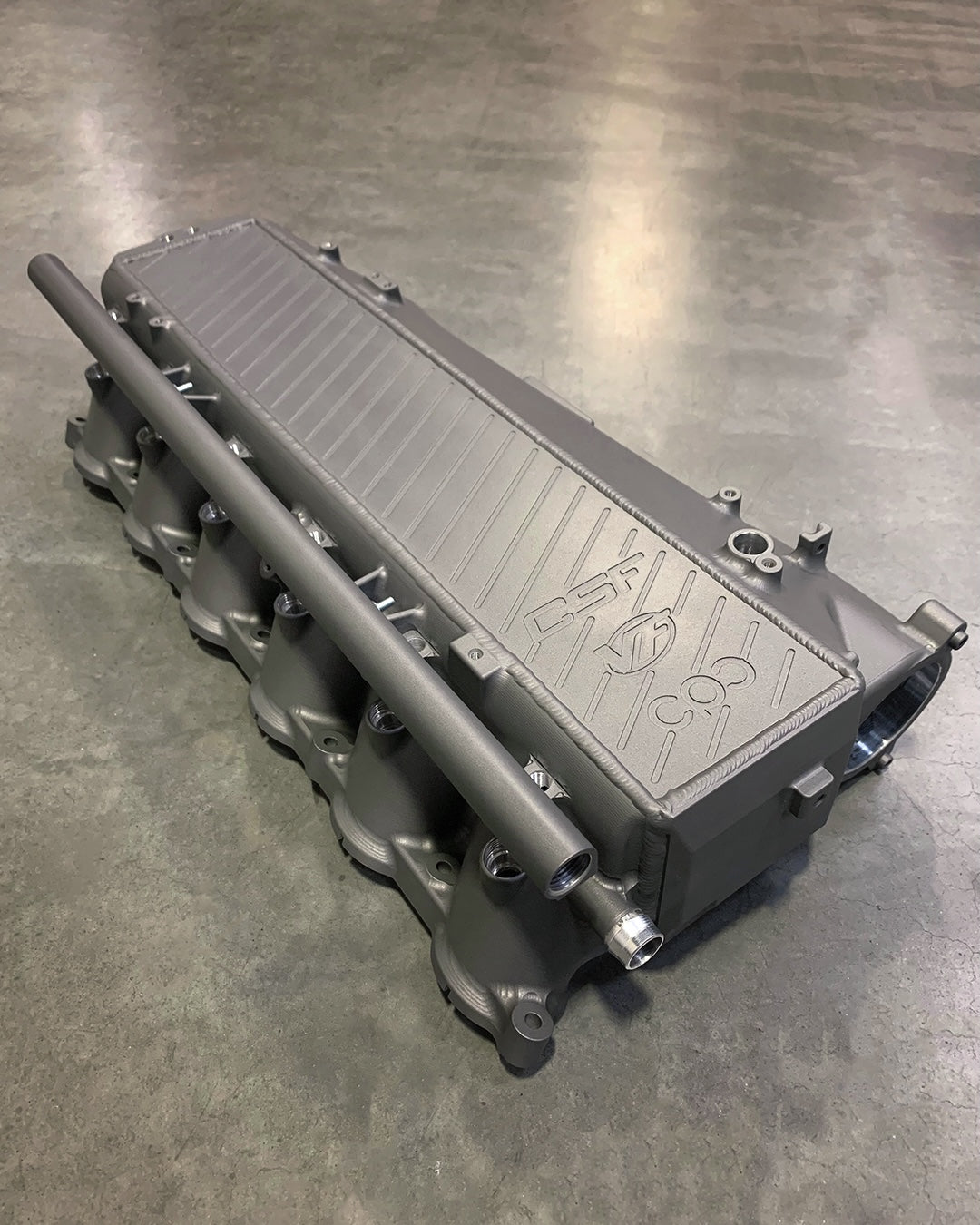

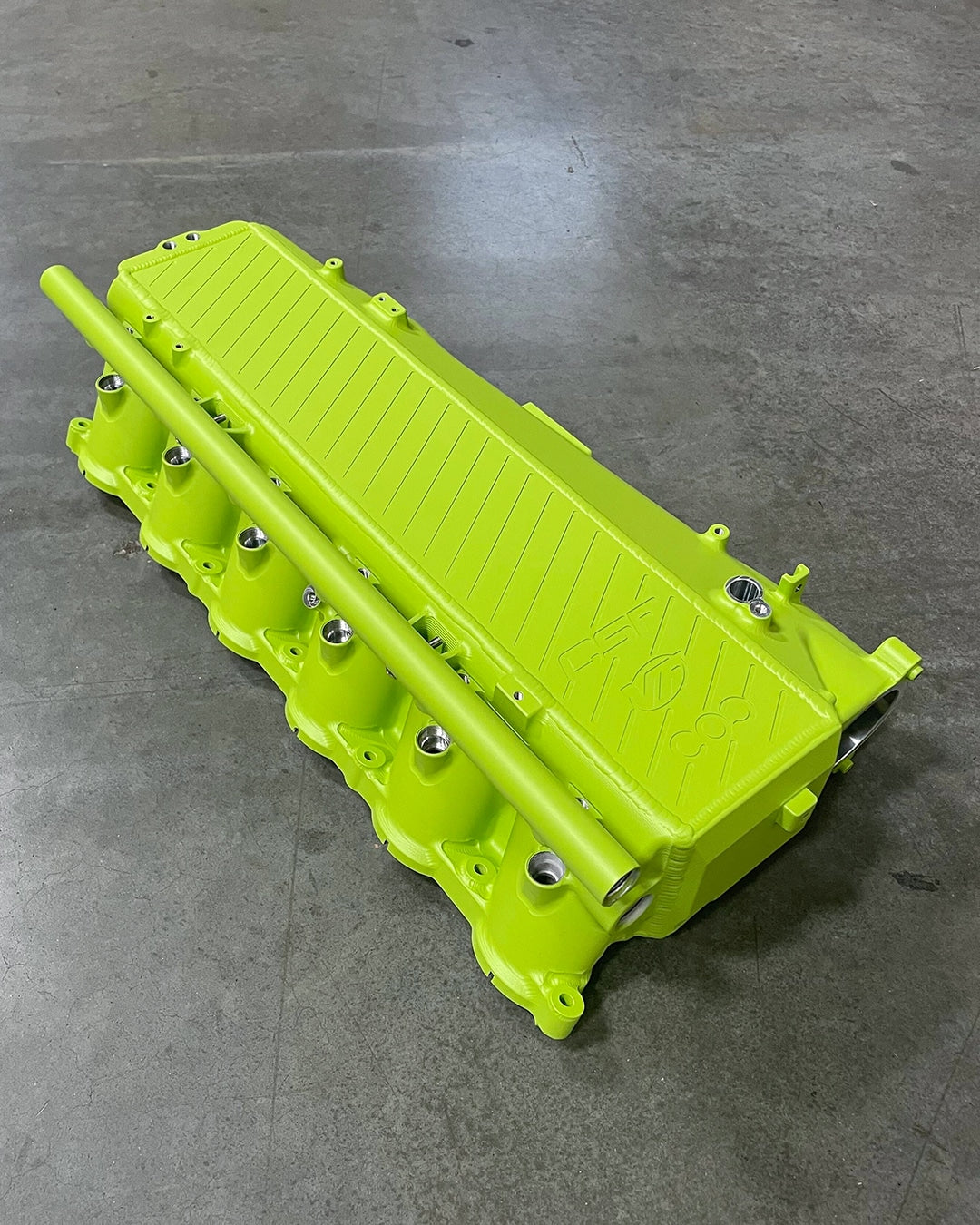

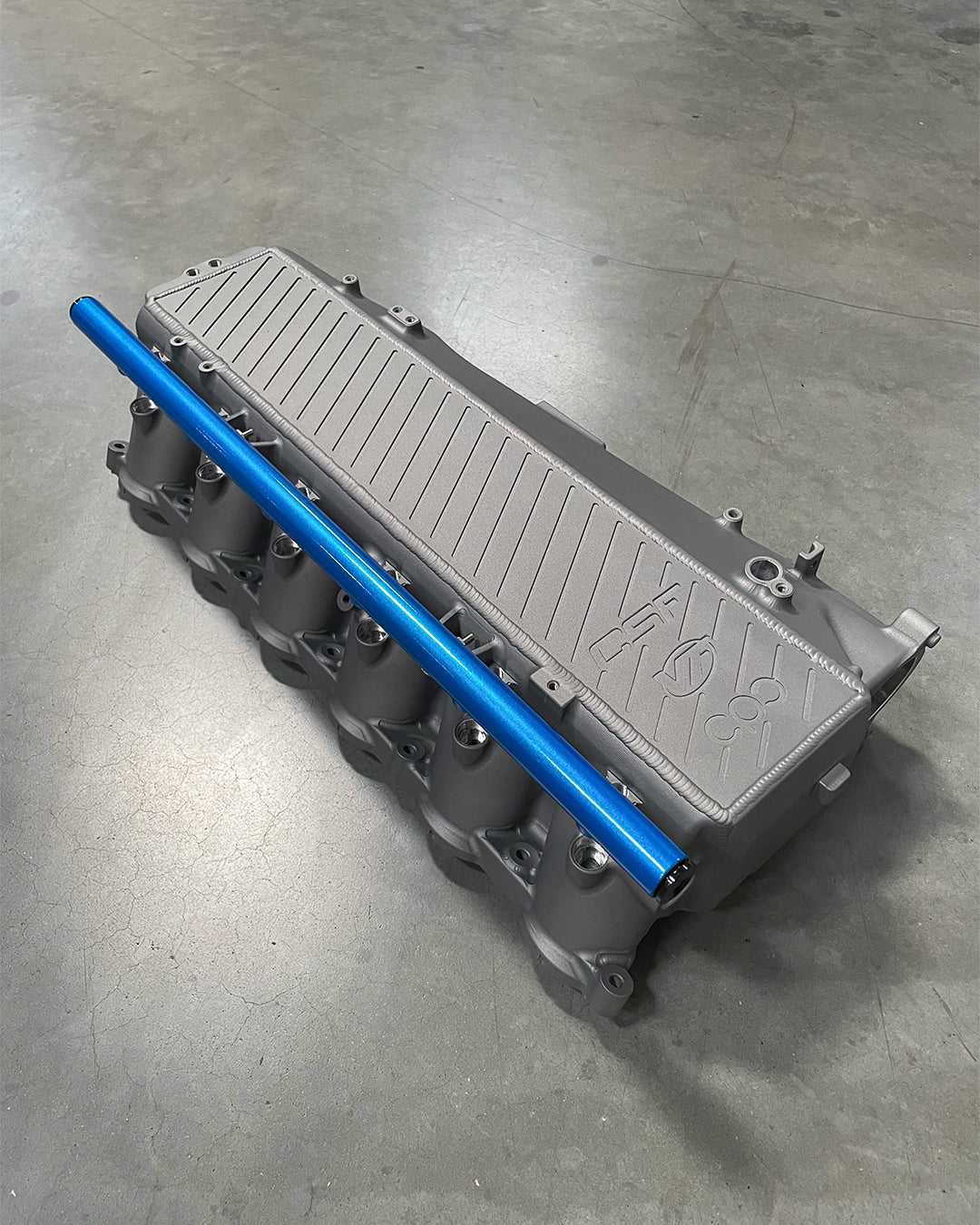

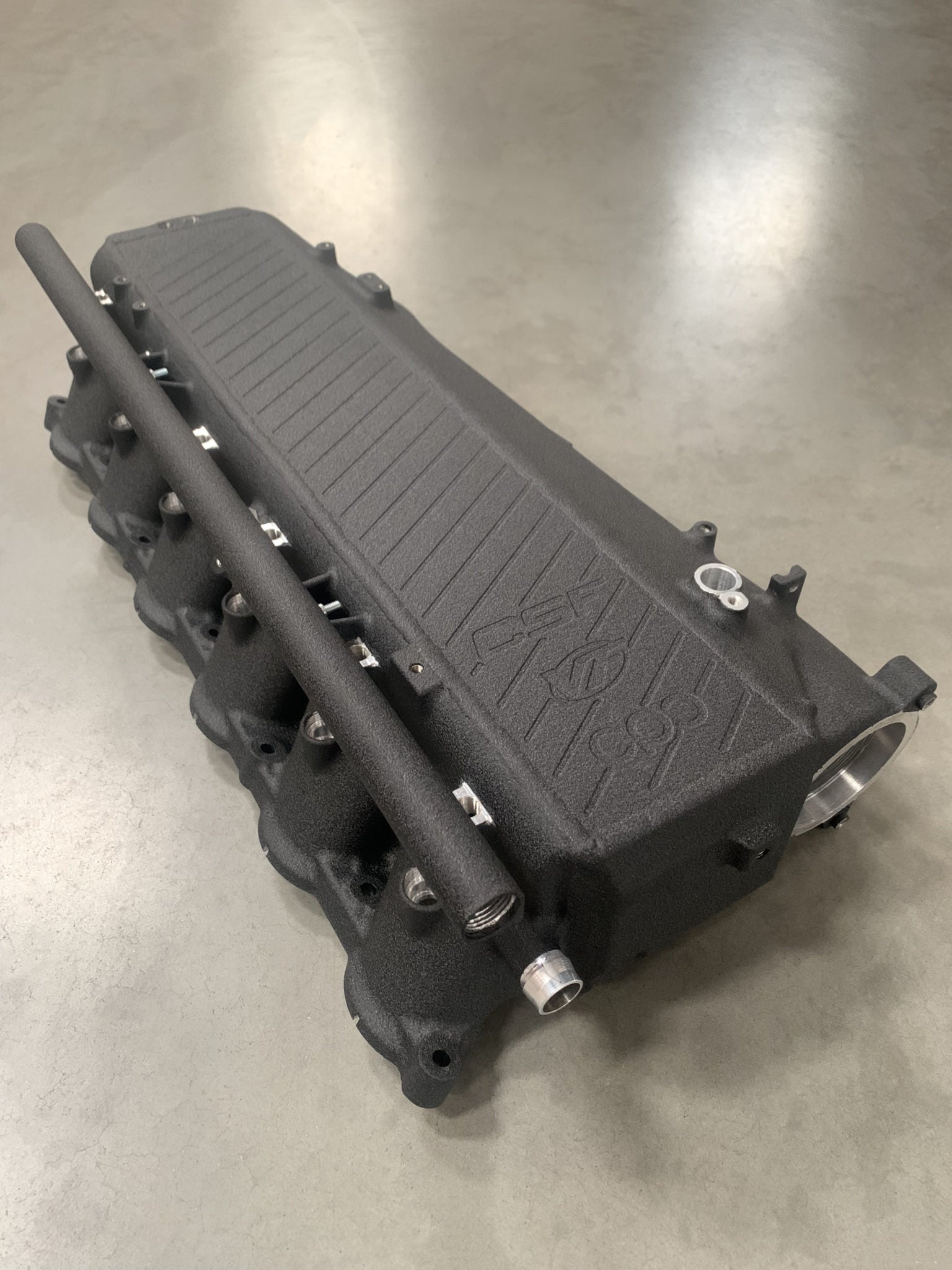

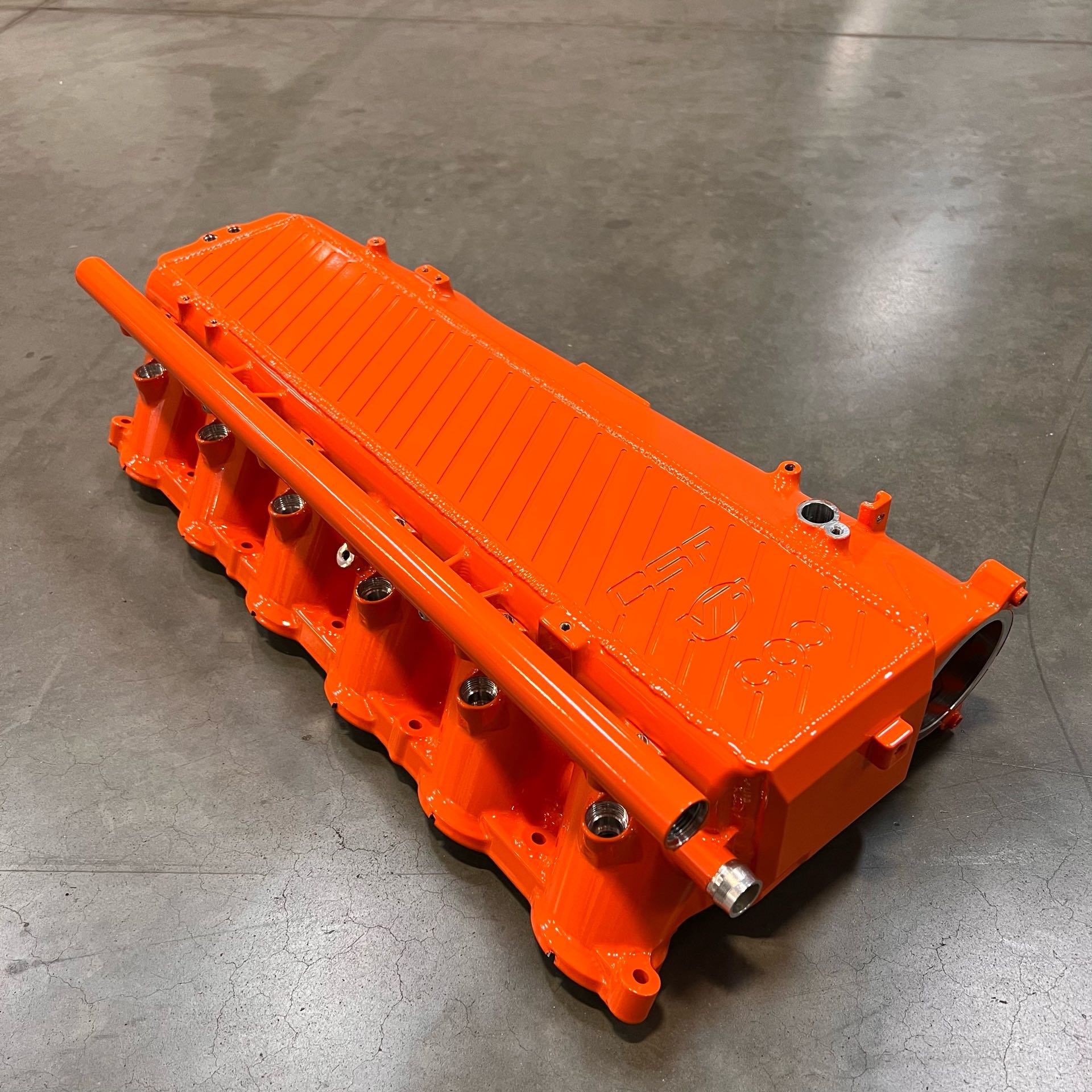

• Custom Finish (Available in Raw Billet - CSF #8300 or Thermal Black Heat Dispersion Cerakote - CSF #8300B)
• Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

Applications

• 2016-2018 BMW 340i - Turbocharged 3.0L L6
• 2017-2019 BMW 340i GT xDrive - Turbocharged 3.0L L6
• 2016-2018 BMW 340i xDrive - Turbocharged 3.0L L6
• 2017-2020 BMW 440i - Turbocharged 3.0L L6
• 2017-2020 BMW 440i Gran Coupe - Turbocharged 3.0L L6
• 2017-2020 BMW 440i xDrive - Turbocharged 3.0L L6
• 2017-2020 BMW 440i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2017-2019 BMW 540i - Turbocharged 3.0L L6
• 2017-2019 BMW 540i xDrive - Turbocharged 3.0L L6
• 2018-2019 BMW 640i xDrive Gran Turismo - Turbocharged 3.0L L6
• 2017-2019 BMW 740i - Turbocharged 3.0L L6
• 2017-2019 BMW 740i xDrive - Turbocharged 3.0L L6
• 2018-2021 BMW M240i - Turbocharged 3.0L L6
• 2017-2021 BMW M240i xDrive - Turbocharged 3.0L L6
• 2018-2019 BMW X3 M40i - Turbocharged 3.0L L6
• 2017-2019 BMW X4 M40i - Turbocharged 3.0L L6

OEM Part Numbers

• BMW: 11-61-8-603-913
• BMW: 11 61 8 603 913
• BMW: 11618603913
