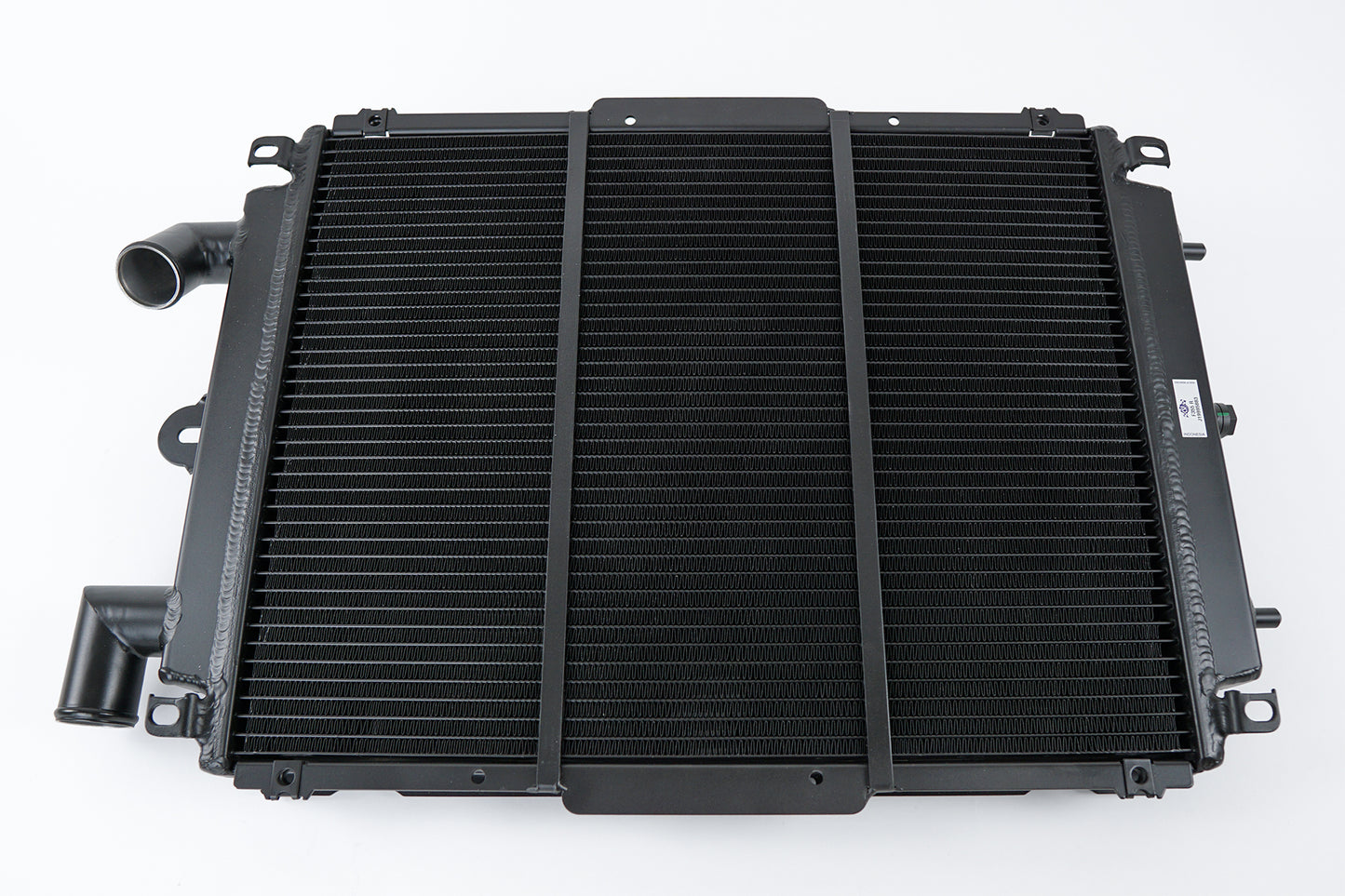

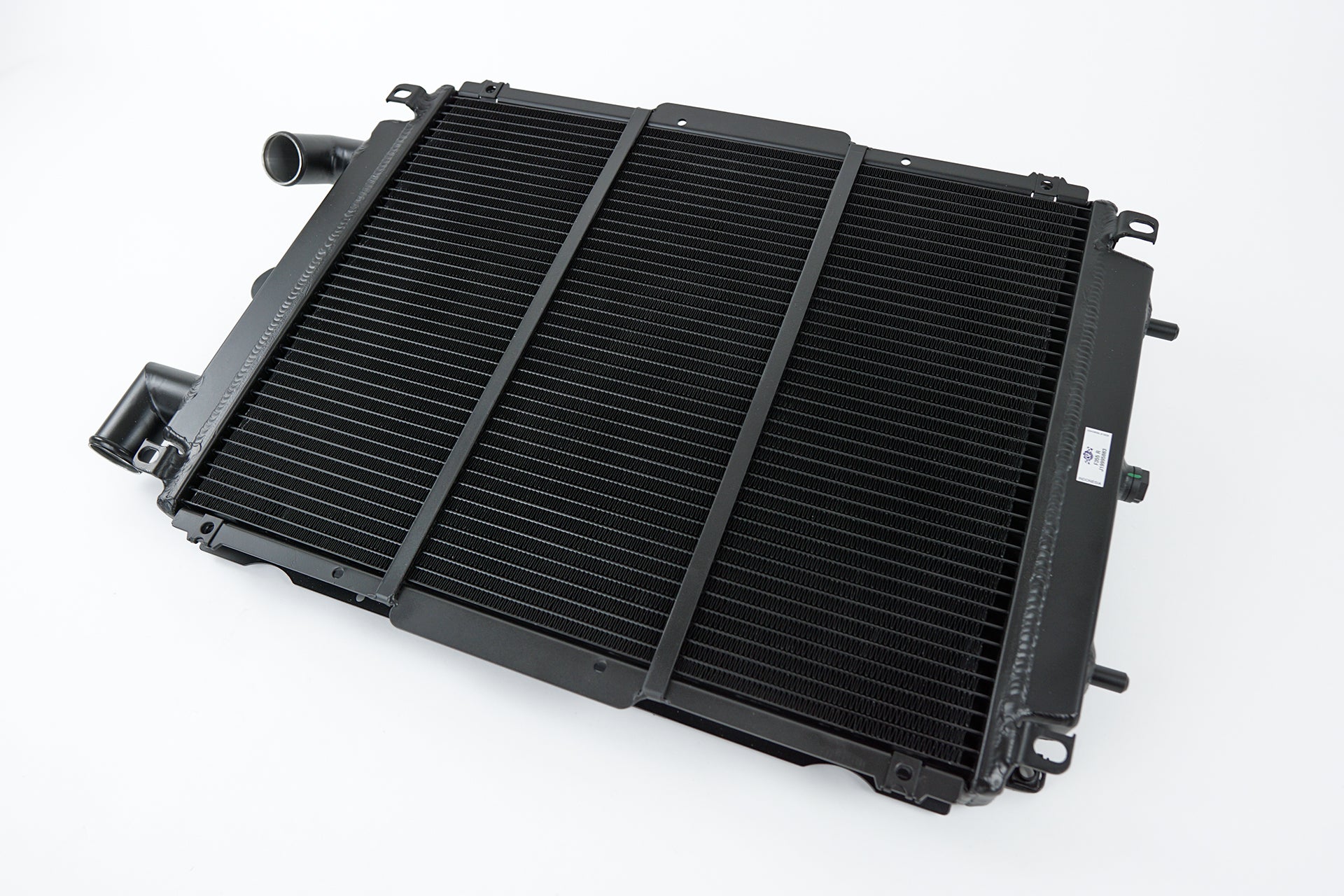

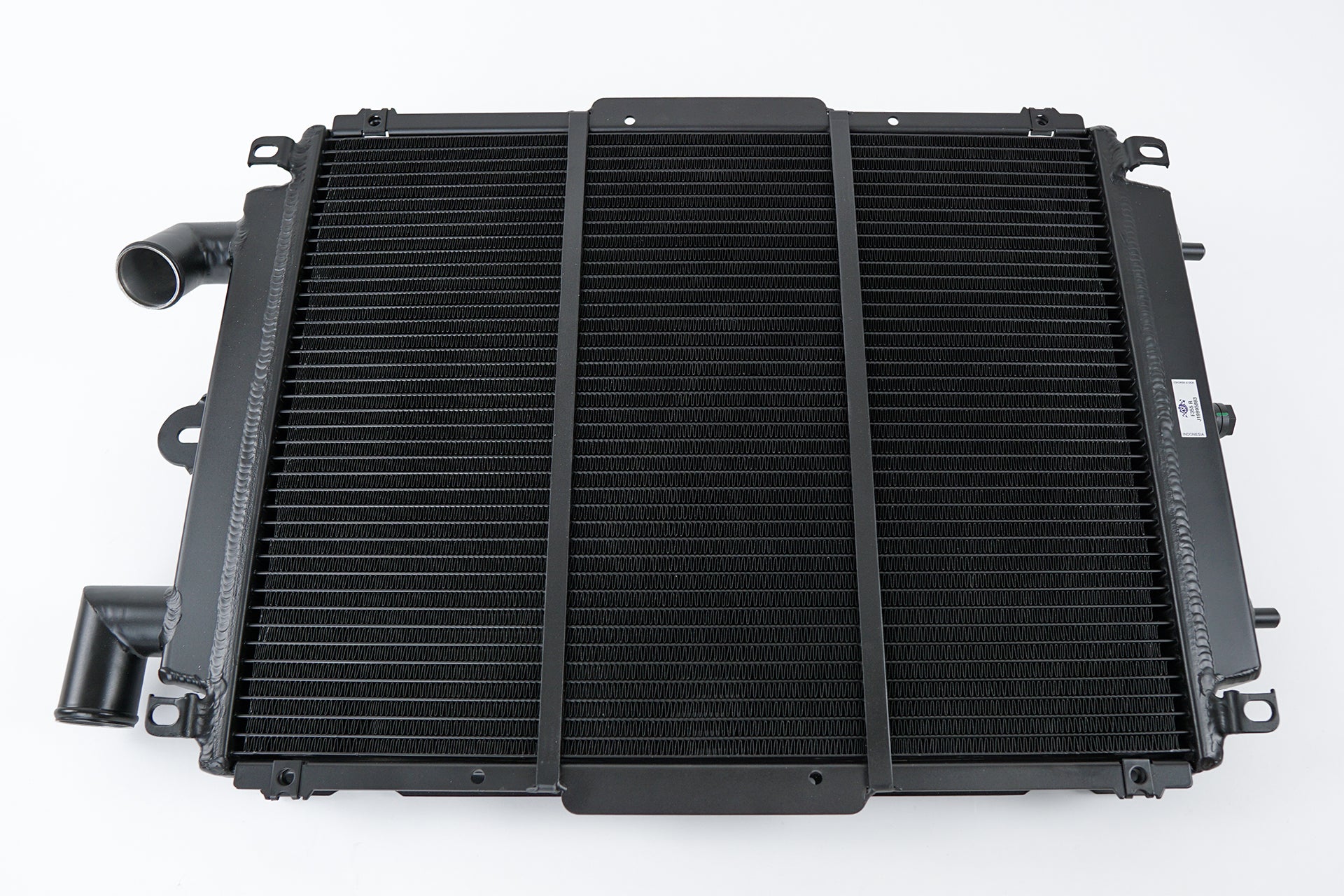

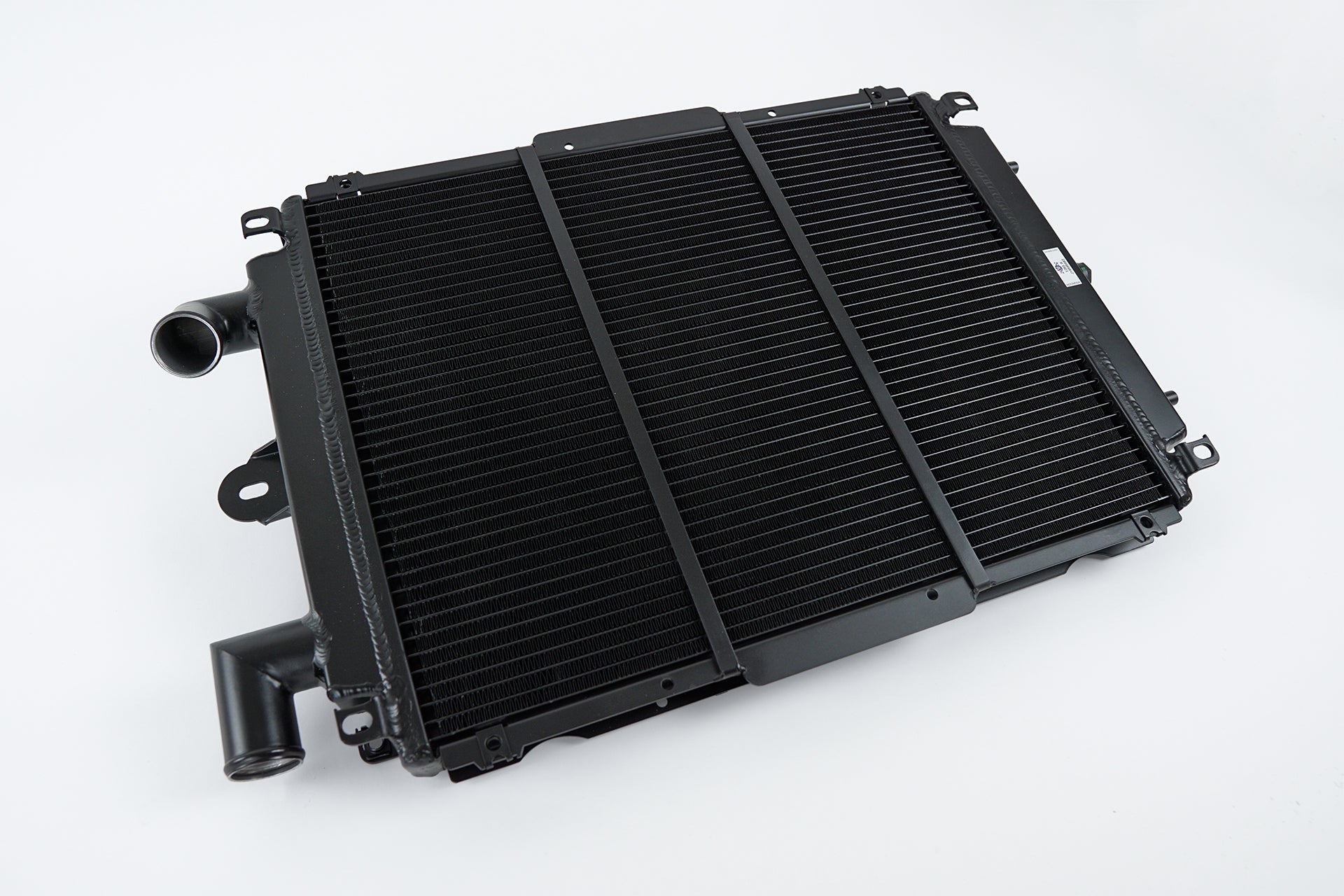

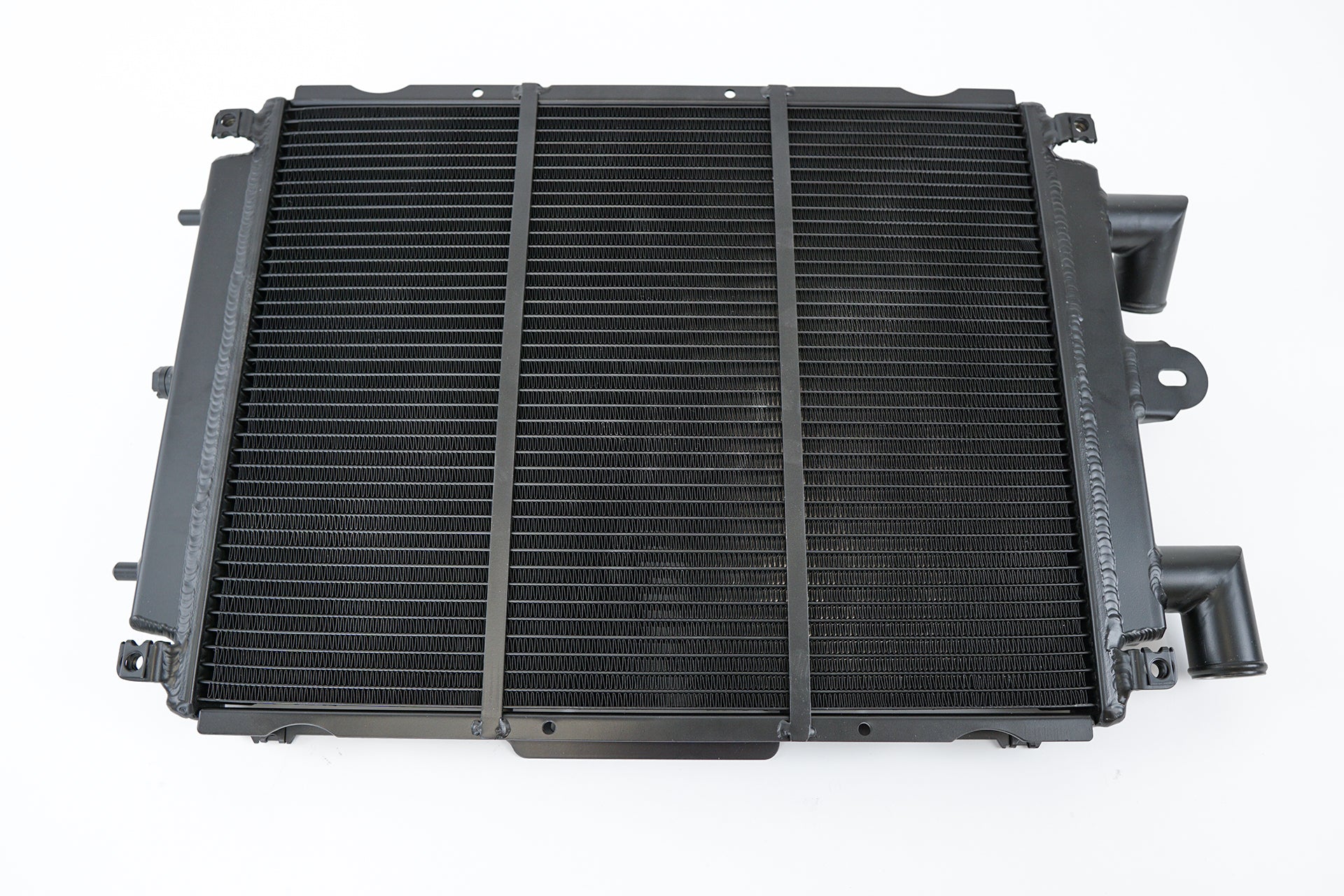

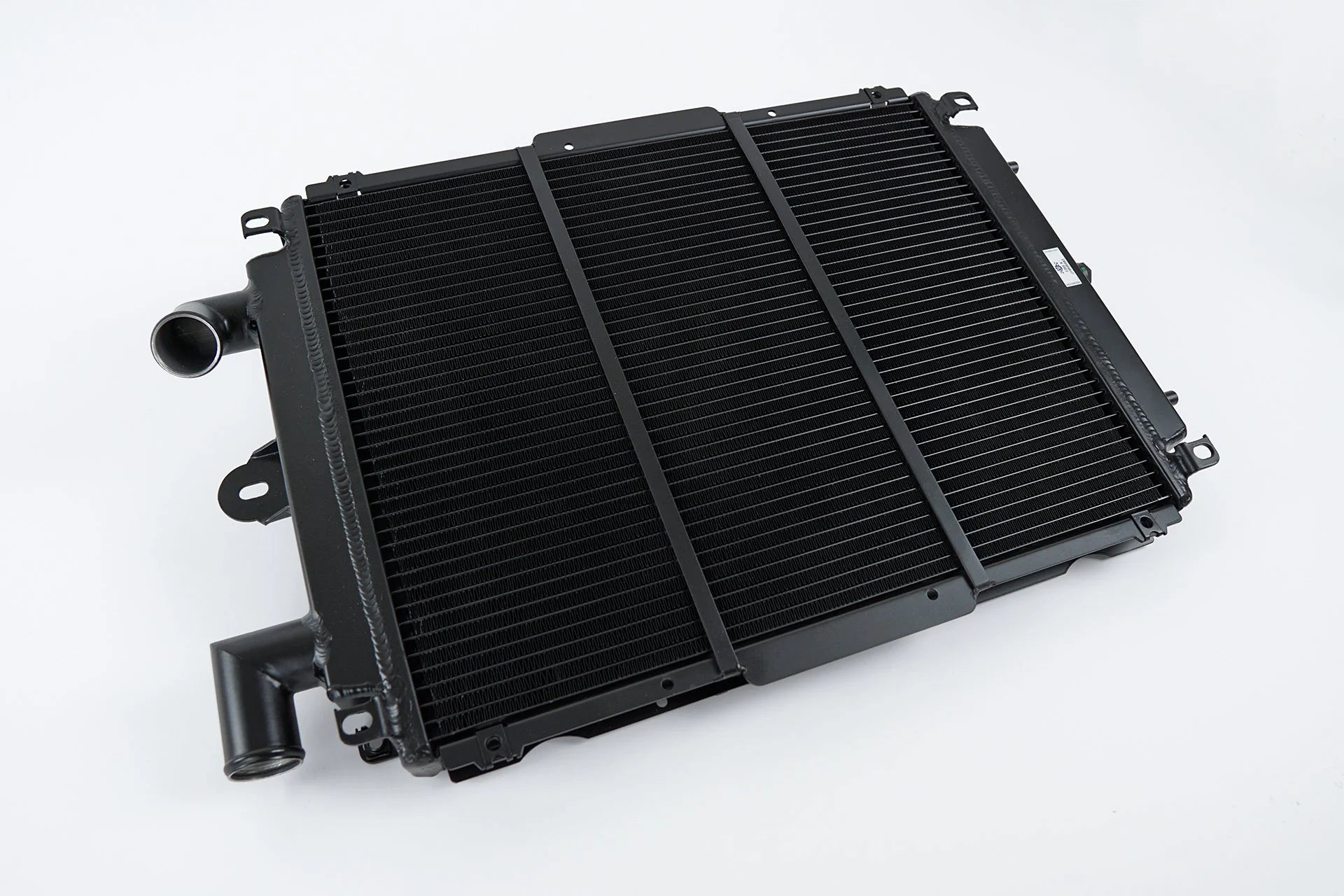

94-99 Ferrari F355 High-Performance All-Aluminum Radiator (RH)

When initially designing these radiators, there were several key features that CSF knew were important to the Ferrari community: OEM Fit & Finish, Increased performance, and improved reliability. The original F355 OE radiators from Ferrari feature aluminum cores crimped onto plastic end tanks. While generally accepted as good quality and durable, this design is significantly weaker than the all-aluminum TIG welded design of the CSF Radiators. Anyone who has restored/updated a older car knows the value of having updated parts that are as efficient as possible.

The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 6.5mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. In addition, CSF was able to fit 2 additional cooling tubes and rows of fins. The combination of TIG-Welded 100% All Aluminum construction and dual core straps increase the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. Additionally, the satin black finish gives the radiator a clean OEM look and both radiators are a true Plug-and-Play "Drop-in Fit" application.

Features

• Single Row 31mm Ultra-High-Performance Dual Pass Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish for OEM+ Look
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty
• Right Hand Side Radiator (CSF #7206 - Left Hand Side Radiator Sold Seperately)

Applications

• 1999 Ferrari F355 - 3.5L V8
• 1994-1996 Ferrari F355 Berlinetta - 3.5L V8
• 1998 Ferrari F355 F1 - 3.5L V8
• 1994-1998 Ferrari F355 GTS - 3.5L V8
• 1996-1999 Ferrari F355 Spider - 3.5L V8

OEM Part Numbers

• Ferrari: 807927
• Ferrari: 157589
• Ferrari: 159919
