While in stock form, the G8X's factory cooling system does a decent job keeping up with the cooling demands. While this was true of the car in factory spec, those results changed when the cars were modified and started pushing more power. As with most performance vehicles, power adders were some of the first products to be released for the new G8X platform. Bolt-on upgrades, software tunes, and upgraded turbos are all great for speed, but start to create heat issues. Any time you add power to your car, you naturally increase the amount of heat the engine produces.

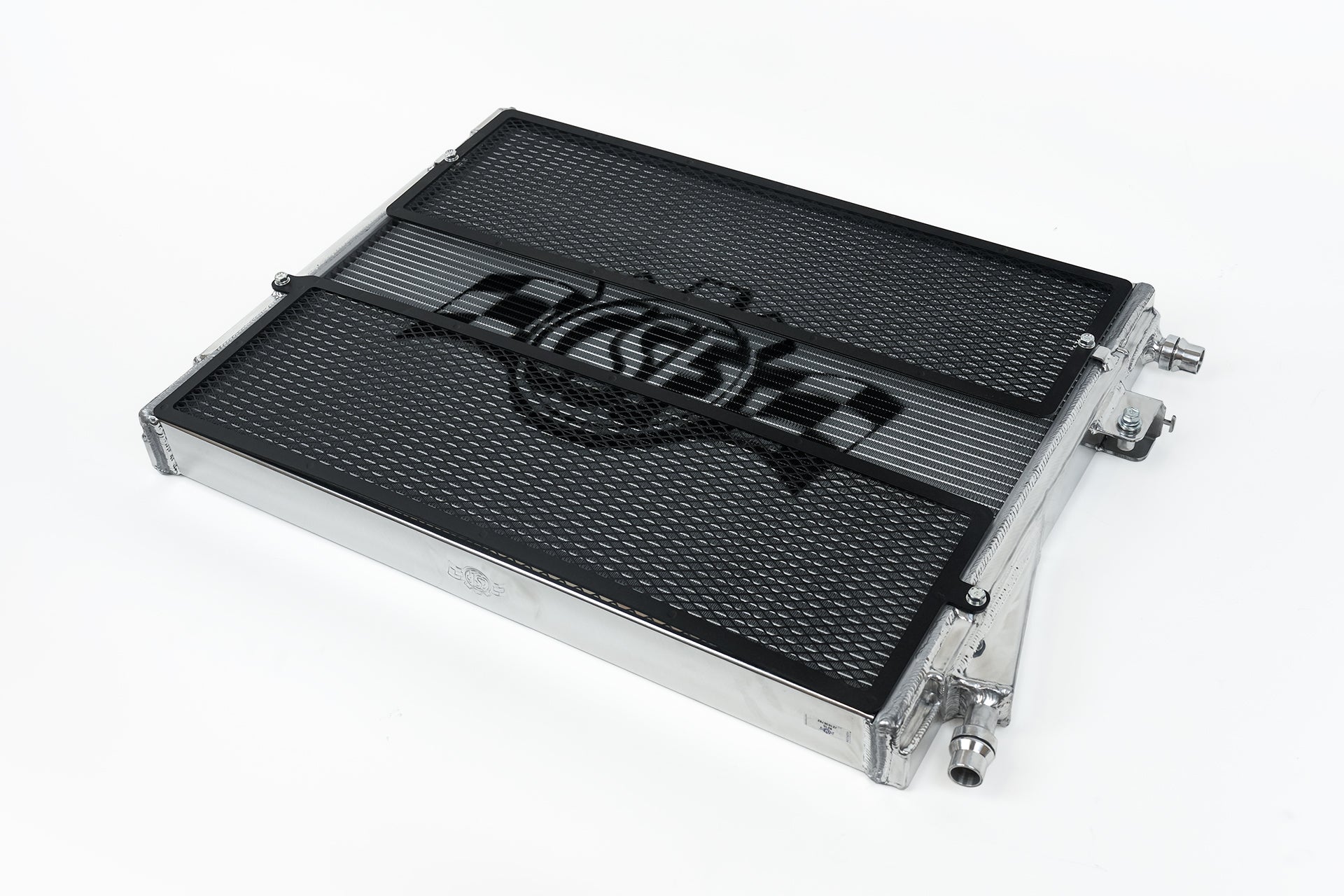

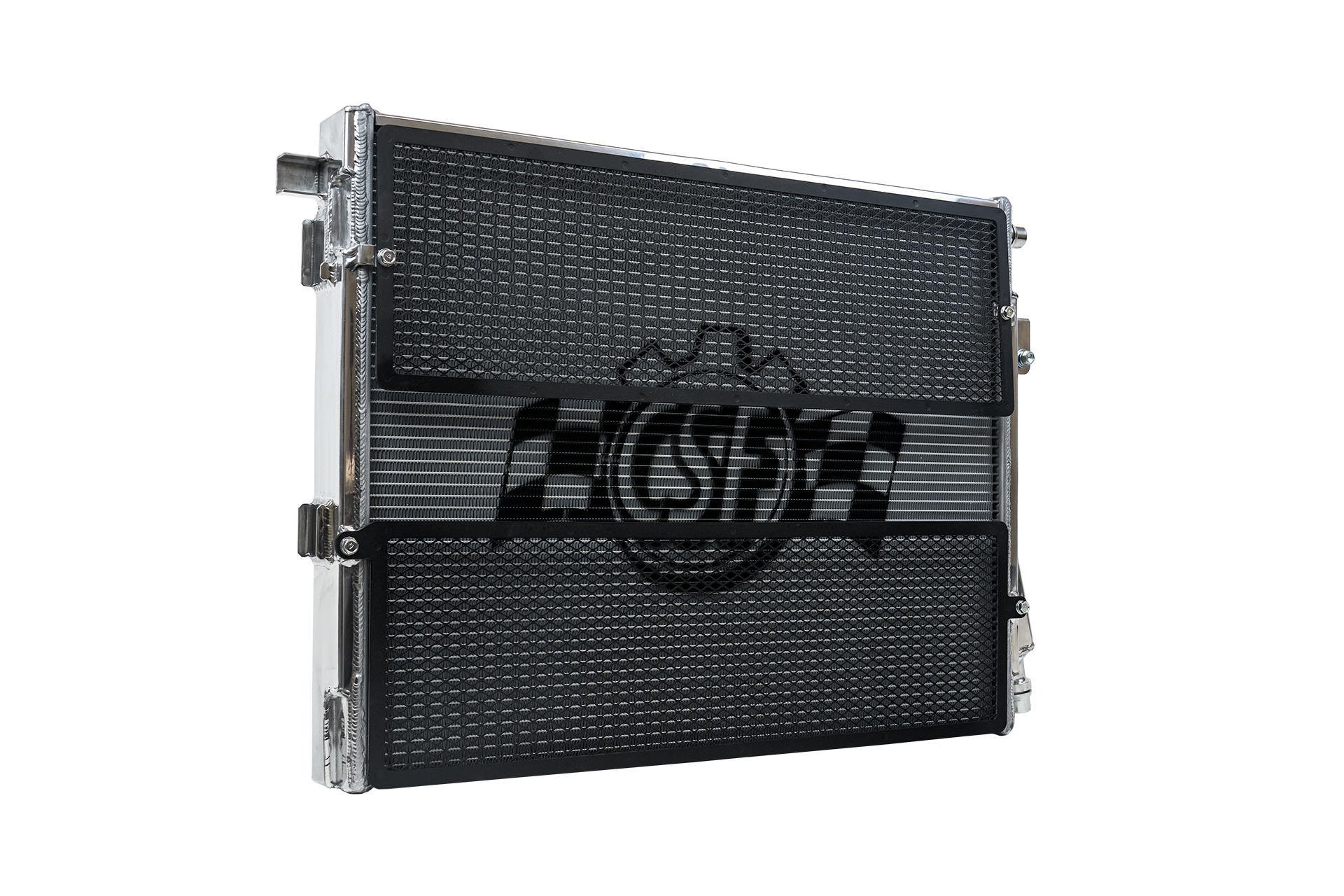

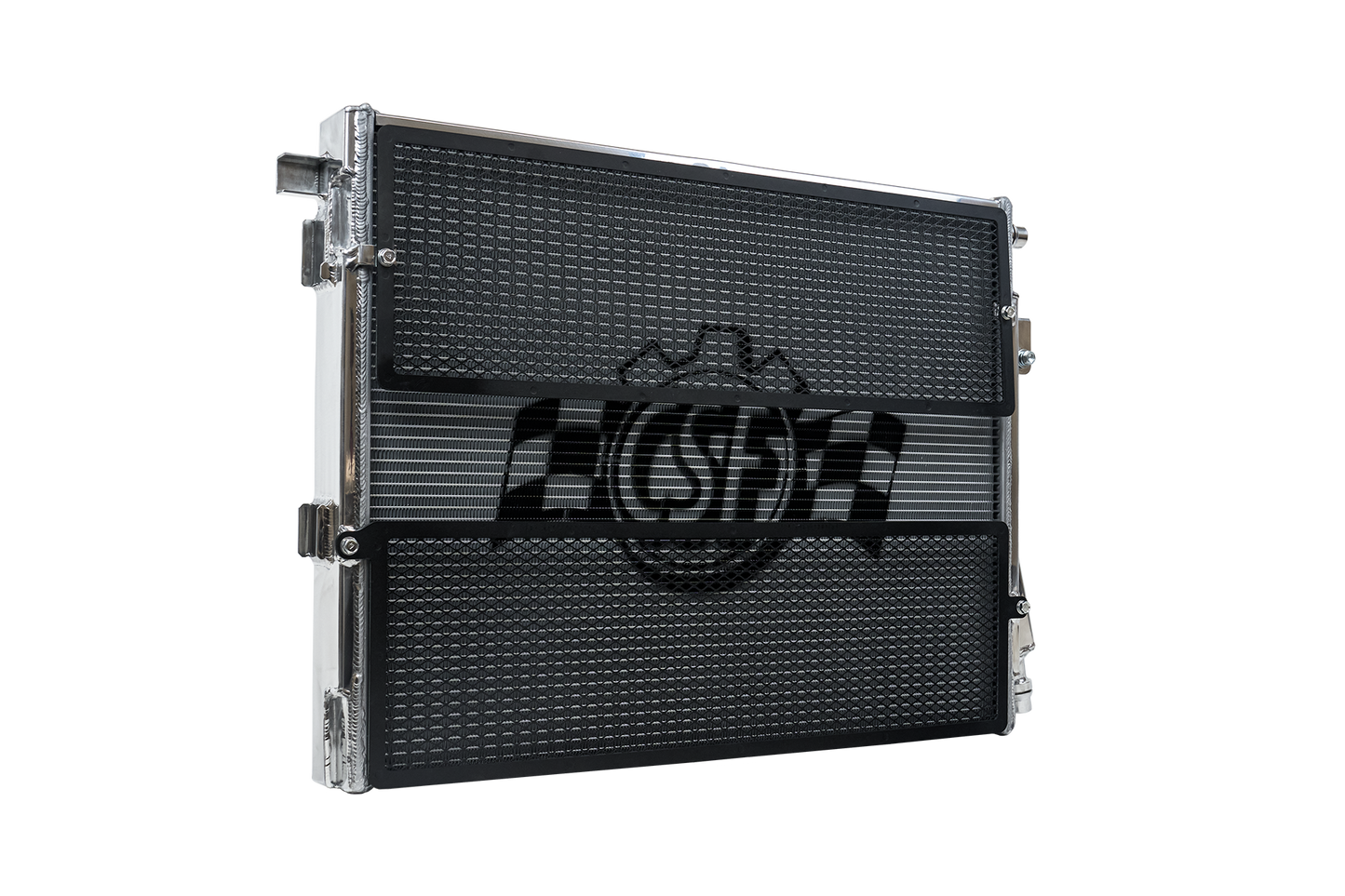

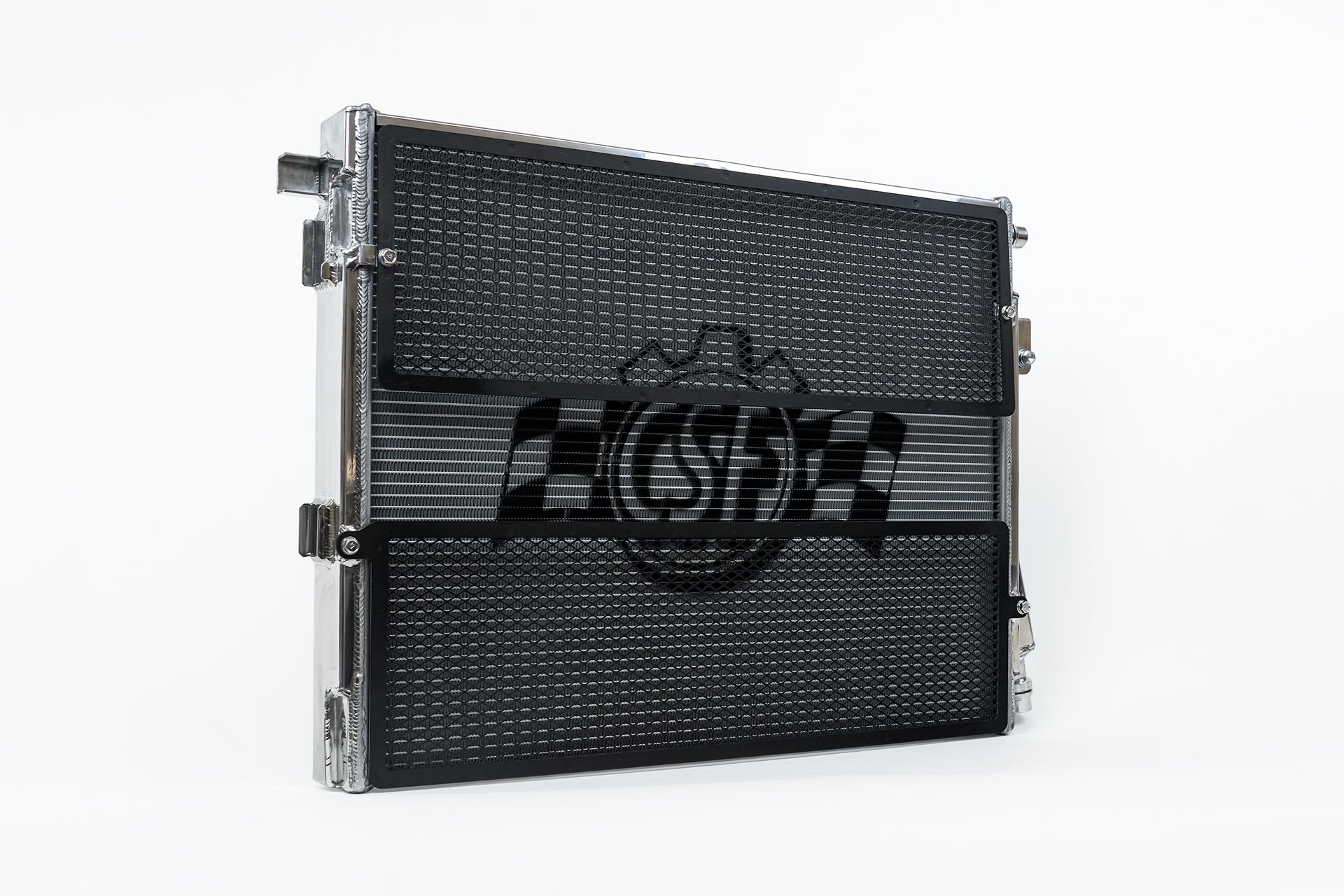

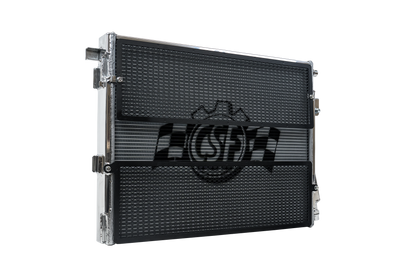

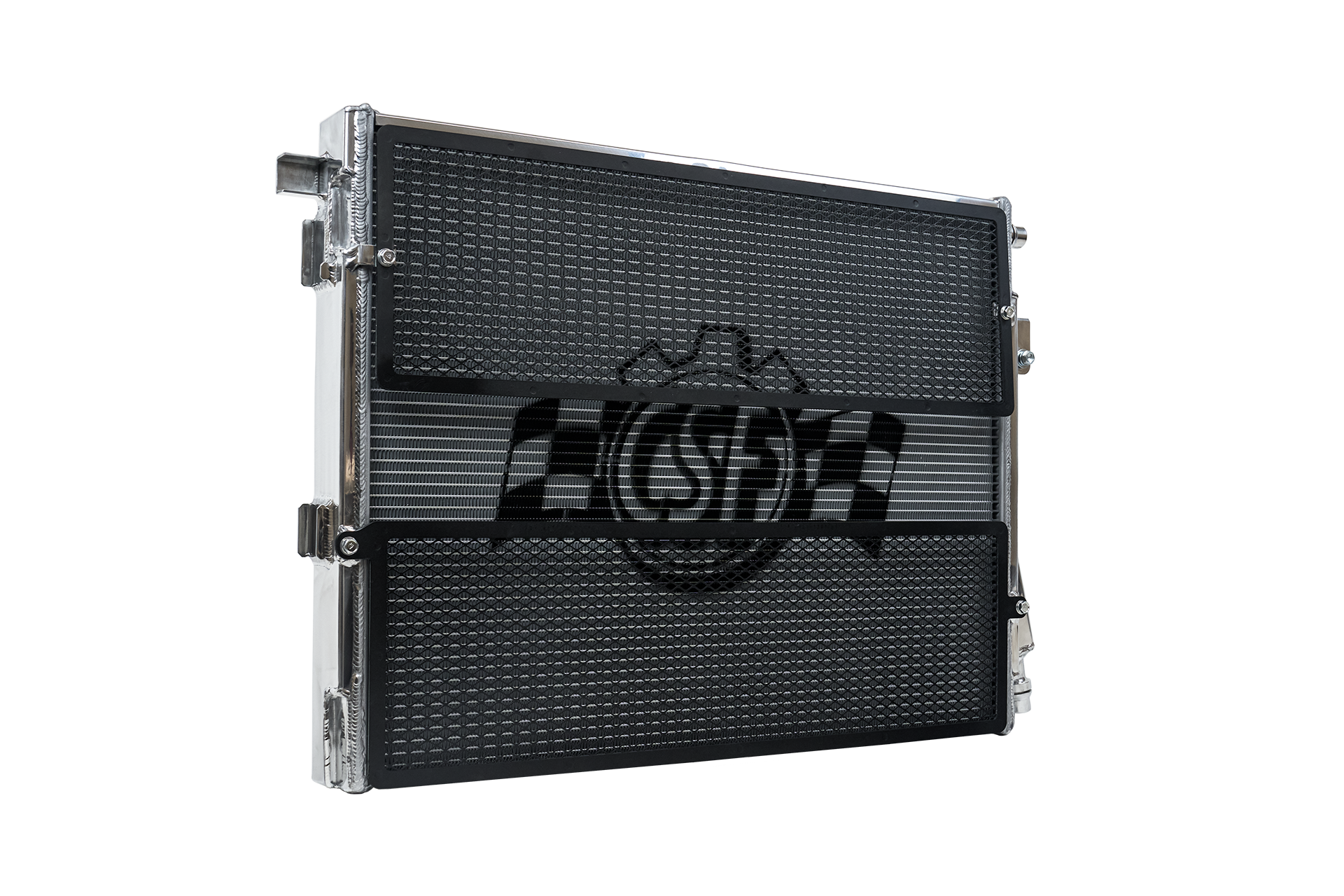

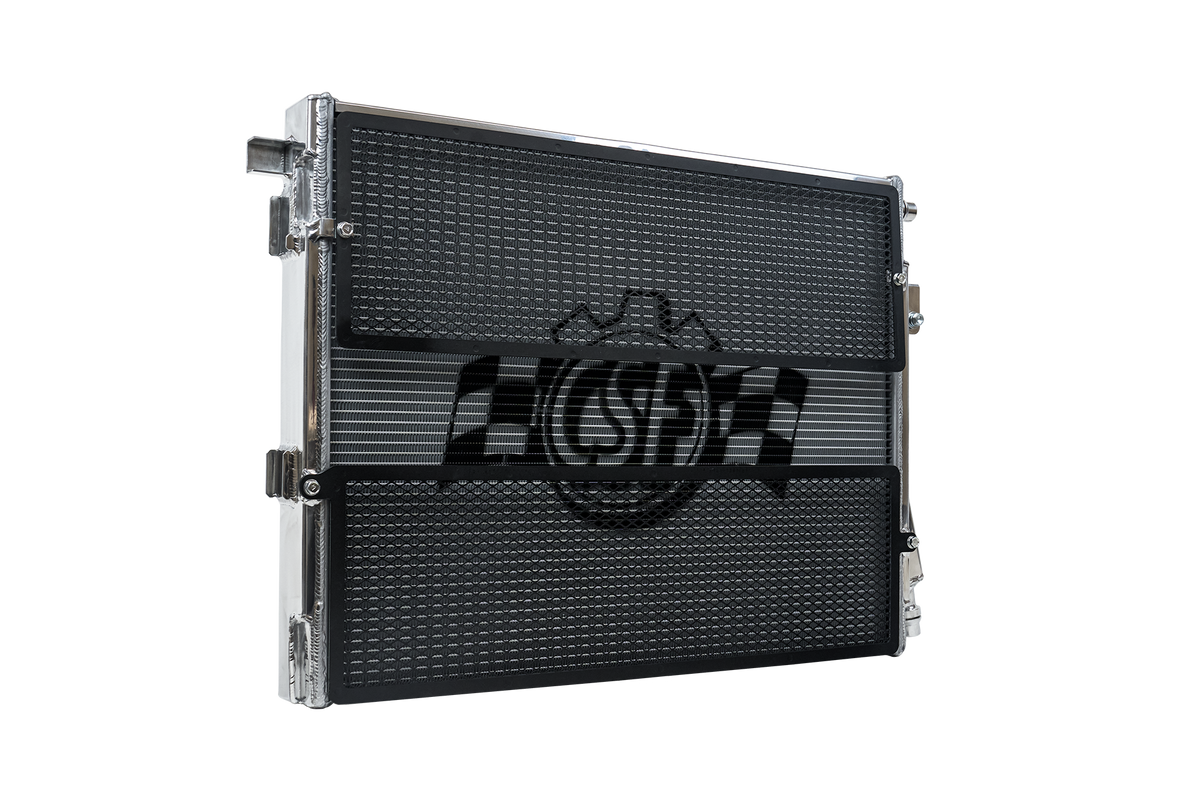

The CSF Heat Exchanger features a 2-Row (vs OEM single row) Core that is 42mm thick with CSF's Exclusive B-Tube Technology. Increasing the size of the core and end tanks adds to the overall volume of the system which helps absorb more heat. The more efficient core not only helps dissipate more heat from the system, but also provides better airflow into the radiator that sits behind the heat exchanger. For vehicles equipped with the ZF8 Automatic Transmission, the heat exchanger core specifications were design concurrently with CSF's new Race-Spec Dual Core Transmission Oil Cooler (CSF #8221). The two included Black Rock Guards offer full protection for the heat exchanger (above and below the crash bar), especially when paired with aftermarket "open face" race style grilles. These grilles have become quite popular for performance and aesthetics, and keeping your heat exchanger safe from debris is very important. With well over 100 track hours worth of testing and thousands of miles on the road, you can be assured that the CSF's new High-Performance Front Mount Heat Exchanger has been thoroughly tested and vetted.

Features

• Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
• Improves Air Flow to the Rest of the Cooling System for Lower Engine Coolant and Engine Oil Temperatures
• 2-Row, 42mm Ultra-High-Performance Core
• 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology

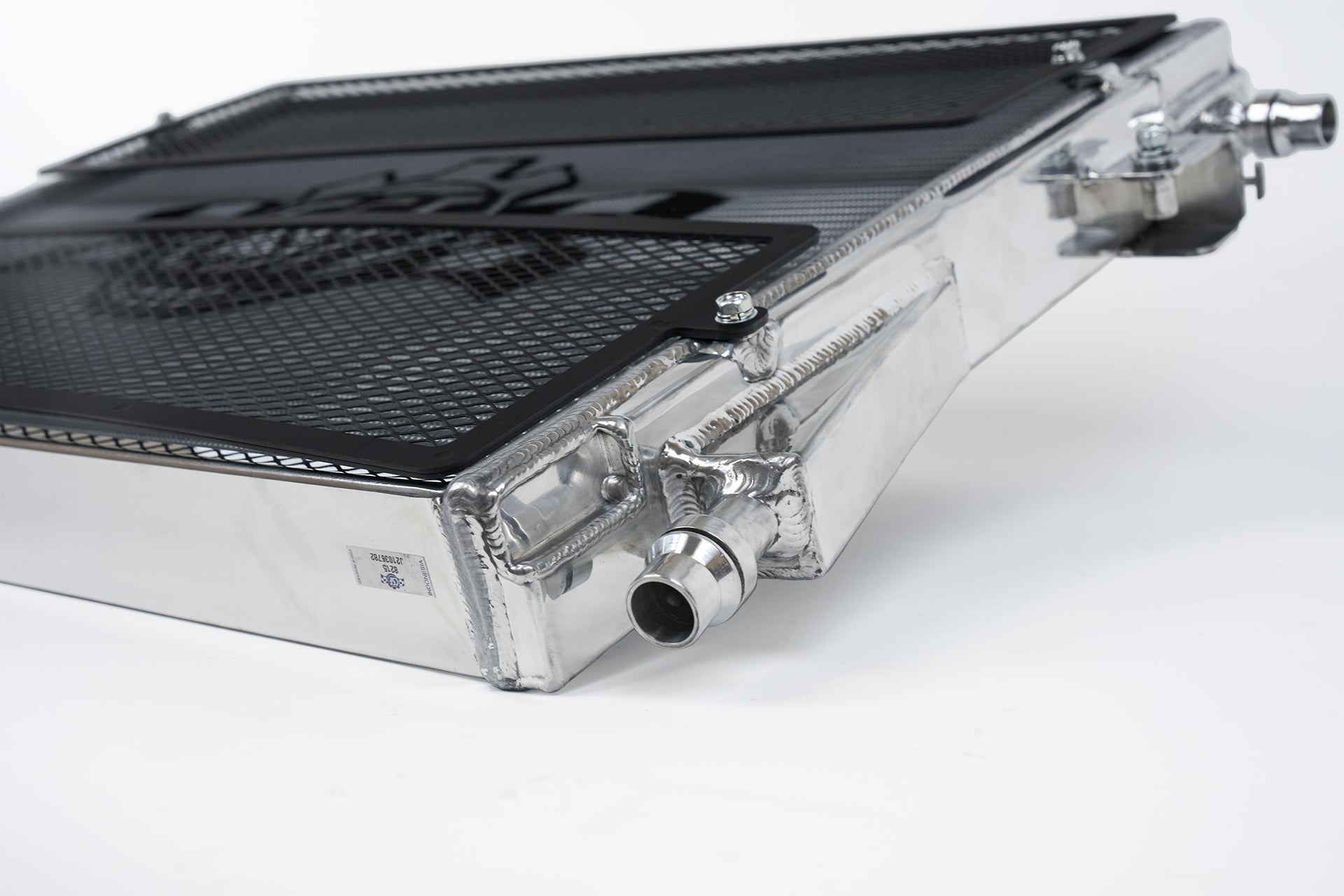

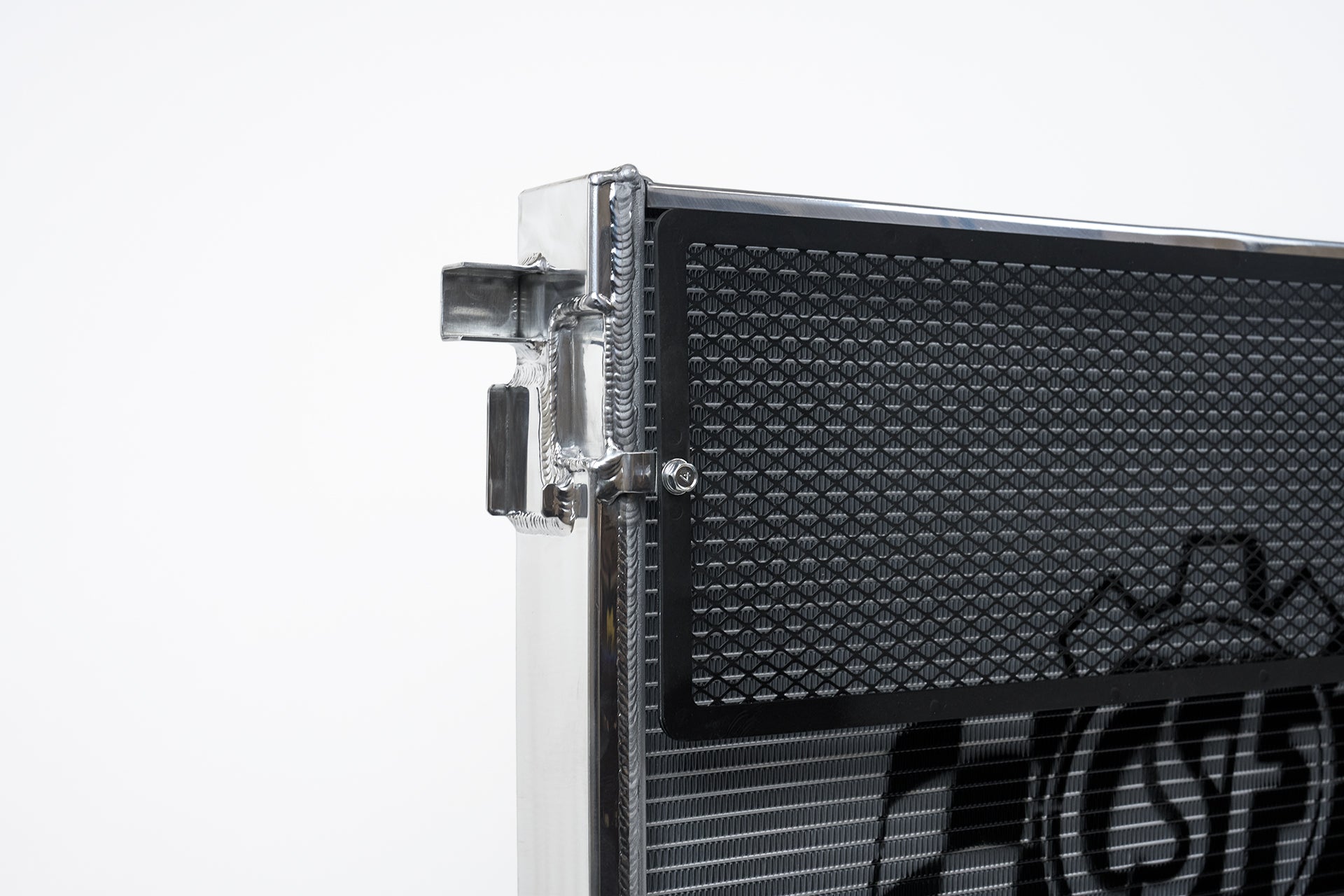

• CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction

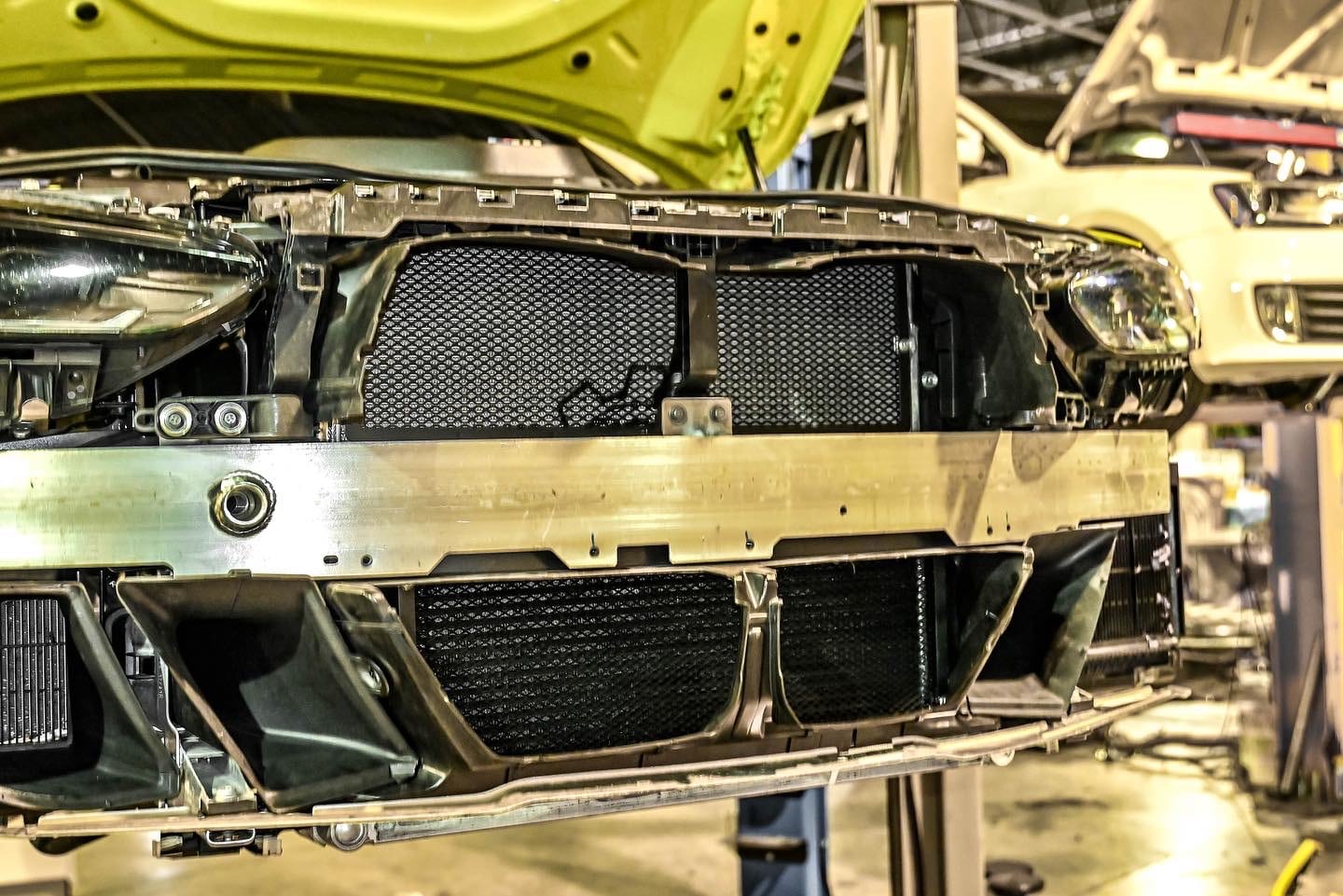

• Includes Black Rock Guards (upper and lower) & Transmission Cooler Mounting Kit - Upper and Lower Rock Guards for Manual Transmission / Upper Rock Guard and Transmission Cooler Mounting Kit for ZF8 Auto
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• 2-Year Limited Warranty
• 1-Hour "Mirror Finish" Hand Polish
• Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers

Applications

• 2024+ BMW G87 M2 - Turbocharged 3.0L L6
• 2021-2024 BMW G8X M3 Competition - Turbocharged 3.0L L6
• 2023+ BMW G8X M3 Competition xDrive - Turbocharged 3.0L L6
• 2024+ BMW G8X M3 CS - Turbocharged 3.0L L6
• 2021-2024 BMW G8X M3 - Turbocharged 3.0L L6
• 2021-2024 BMW G8X M4 Competition - Turbocharged 3.0L L6
• 2021-2024 BMW G8X M4 Competition xDrive - Turbocharged 3.0L L6
• 2024+ BMW G8X M4 CSL - Turbocharged 3.0L L6
• 2021-2024 BMW G8X M4 - Turbocharged 3.0L L6

OEM Part Numbers

• BMW: 17 11 8 095 283
• BMW: 17-11-8-095-283
• BMW: 17118095283
