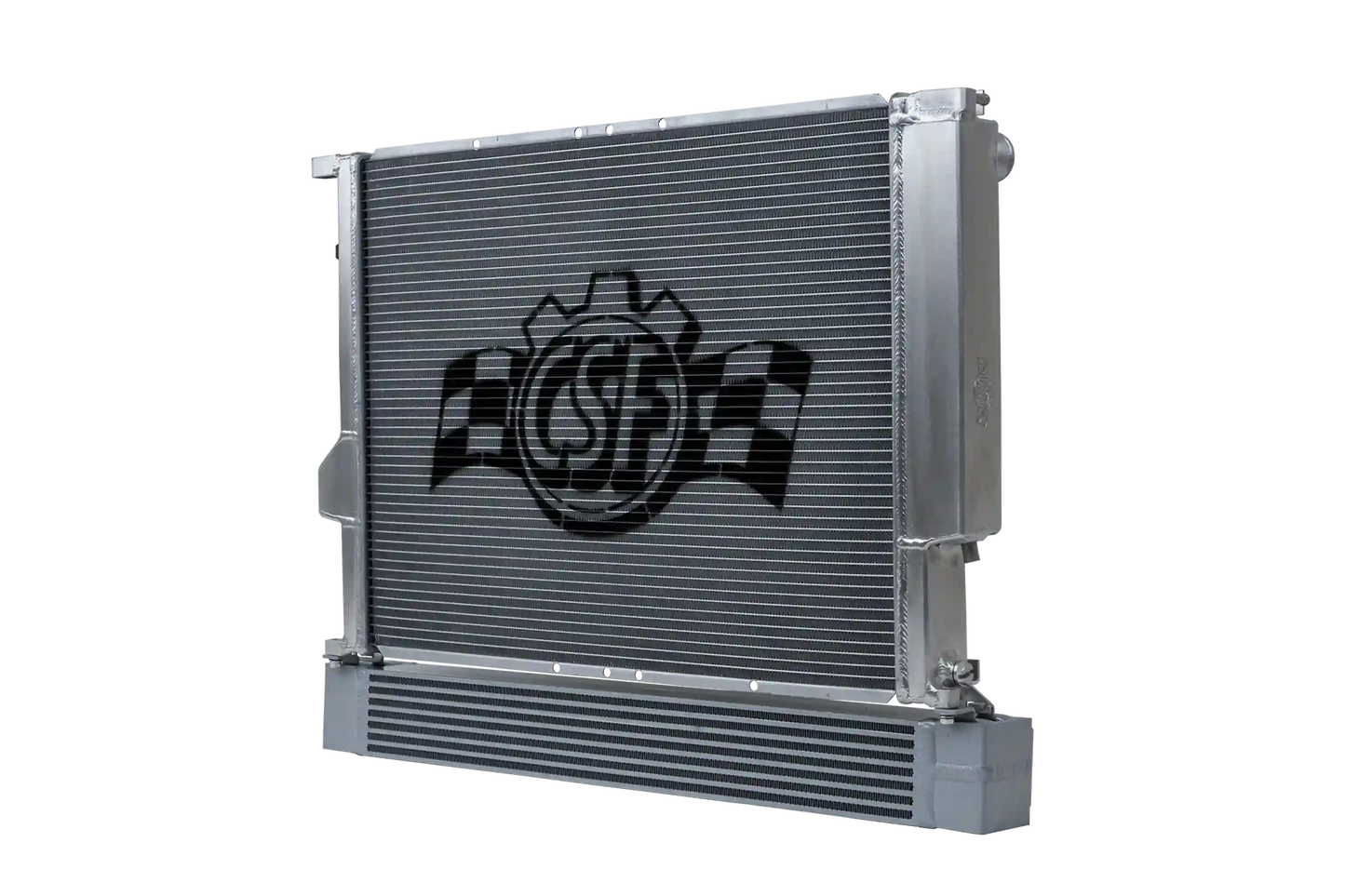

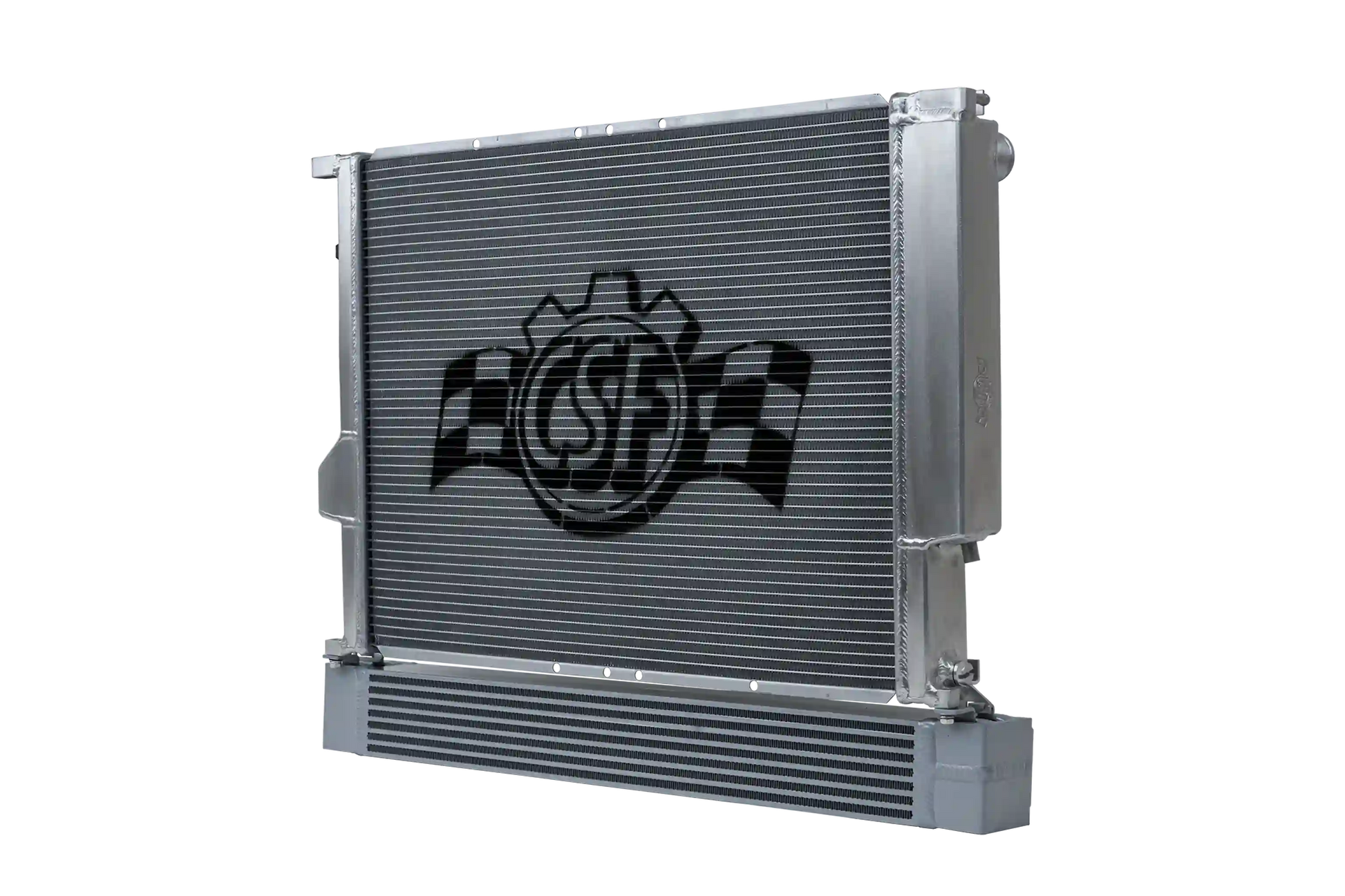

BMW S54 Swap E36 High-Performance All-Aluminum Radiator

CSF's industry-leading reputation and deep knowledge of high-performance BMW cooling systems offered an edge when designing such a unique cooling system. Combining the experience from producing the best cooling systems for the E36 and E46, CSF was able to design and produce an innovative solution that covers the widest range of S54 swap customers possible.

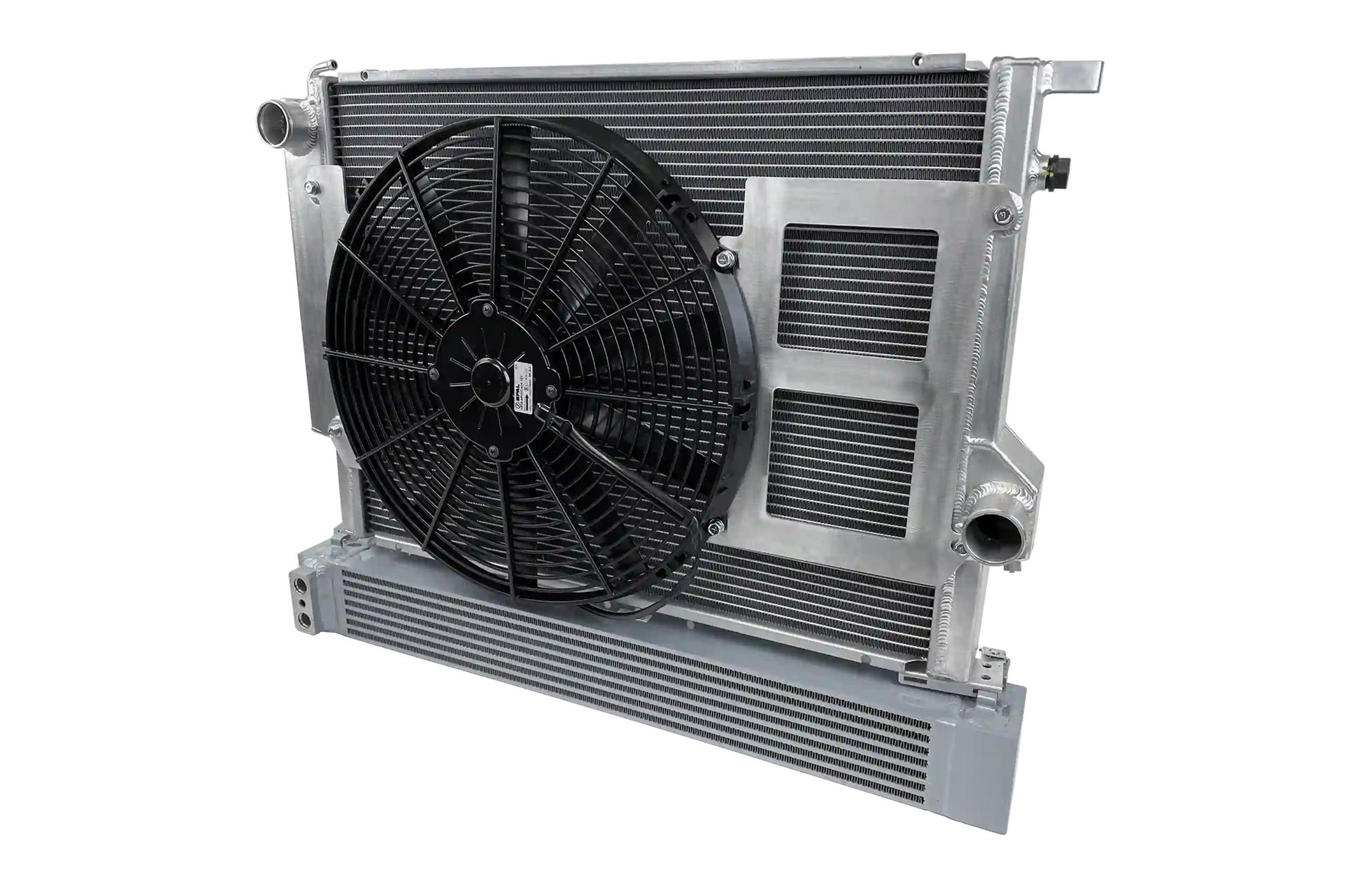

Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

Features

• 2-Row - 42mm Ultra-High-Performance Core
• CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• All-Aluminum Race Style Drain Plug
• Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
• Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)

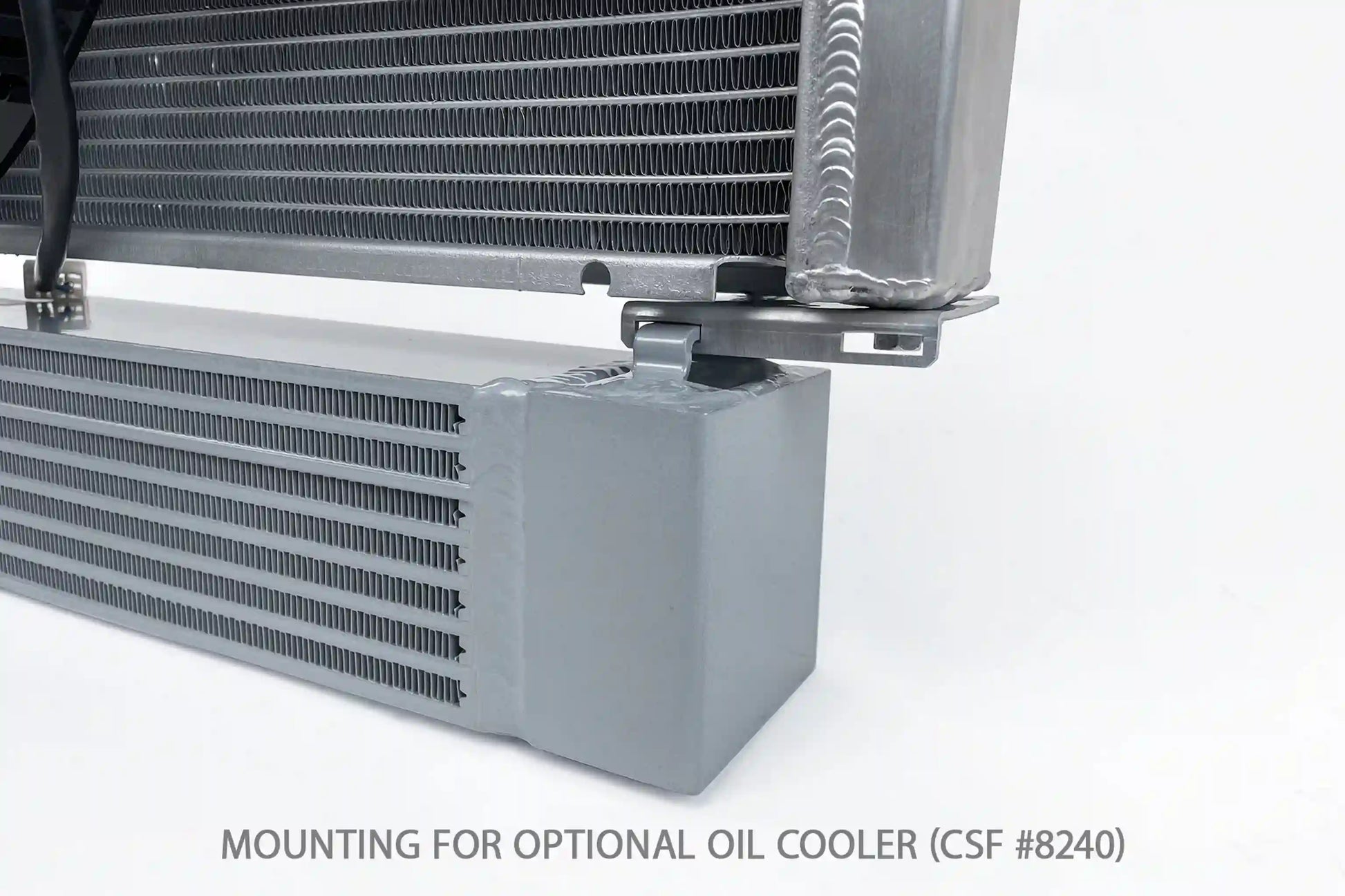

• Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

• 1992-1995 BMW E36 318i - 1.8L L4 *For BMW S54 Engine Swap
• 1996-1999 BMW E36 318i - 1.9L L4 *For BMW S54 Engine Swap
• 1992-1995 BMW E36 318is - 1.8L L4 *For BMW S54 Engine Swap
• 1996-1999 BMW E36 318is - 1.9L L4 *For BMW S54 Engine Swap
• 1995 BMW E36 318ti - 1.8L L4 *For BMW S54 Engine Swap
• 1996-1999 BMW E36 318ti - 1.9L L4 *For BMW S54 Engine Swap
• 1992-1995 BMW E36 320i - 2.0L L6 *For BMW S54 Engine Swap
• 2001-2005 BMW E46 320i - 2.2L L6 *For BMW S54 Engine Swap
• 2000 BMW E46 323Ci - 2.5L L6 *For BMW S54 Engine Swap
• 1998-2000 BMW E36 323i - 2.5L L6 *For BMW S54 Engine Swap
• 1999 BMW E46 323i - 2.5L L6 *For BMW S54 Engine Swap
• 1998-1999 BMW E36 323is - 2.5L L6 *For BMW S54 Engine Swap
• 2001-2006 BMW E46 325Ci - 2.5L L6 *For BMW S54 Engine Swap
• 1992-1995 BMW E36 325i - 2.5L L6 *For BMW S54 Engine Swap
• 2001-2005 BMW E46 325i - 2.5L L6 *For BMW S54 Engine Swap
• 1992-1995 BMW E36 325is - 2.5L L6 *For BMW S54 Engine Swap
• 2001-2005 BMW E46 325xi - 2.5L L6 *For BMW S54 Engine Swap
• 2000 BMW E46 328Ci - 2.8L L6 *For BMW S54 Engine Swap
• 1996-1998 BMW E36 328i - 2.8L L6 *For BMW S54 Engine Swap
• 1999-2000 BMW E46 328i - 2.8L L6 *For BMW S54 Engine Swap
• 1996-1999 BMW E36 328is - 2.8L L6 *For BMW S54 Engine Swap
• 2005 BMW E46 330Ci M - 3.0L L6 *For BMW S54 Engine Swap
• 2001-2006 BMW E46 330Ci - 3.0L L6 *For BMW S54 Engine Swap
• 2005 BMW E46 330i M - 3.0L L6 *For BMW S54 Engine Swap
• 2001-2005 BMW E46 330i - 3.0L L6 *For BMW S54 Engine Swap
• 2001-2005 BMW E46 330xi - 3.0L L6 *For BMW S54 Engine Swap
• 1995 BMW E36 M3 Lightweight - 3.0L L6 *For BMW S54 Engine Swap
• 1994-1995 BMW E36 M3 - 3.0L L6 *For BMW S54 Engine Swap
• 1996-1999 BMW E36 M3 - 3.2L L6 *For BMW S54 Engine Swap

OEM Part Numbers

• *BMW E36 Engine Swap
