CSF High-Performance All-Aluminum Radiator for Nissan R32 Skyline GT-R

Nissan R32 Skyline High-Performance All-Aluminum Radiator Features

• 2-Row – 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

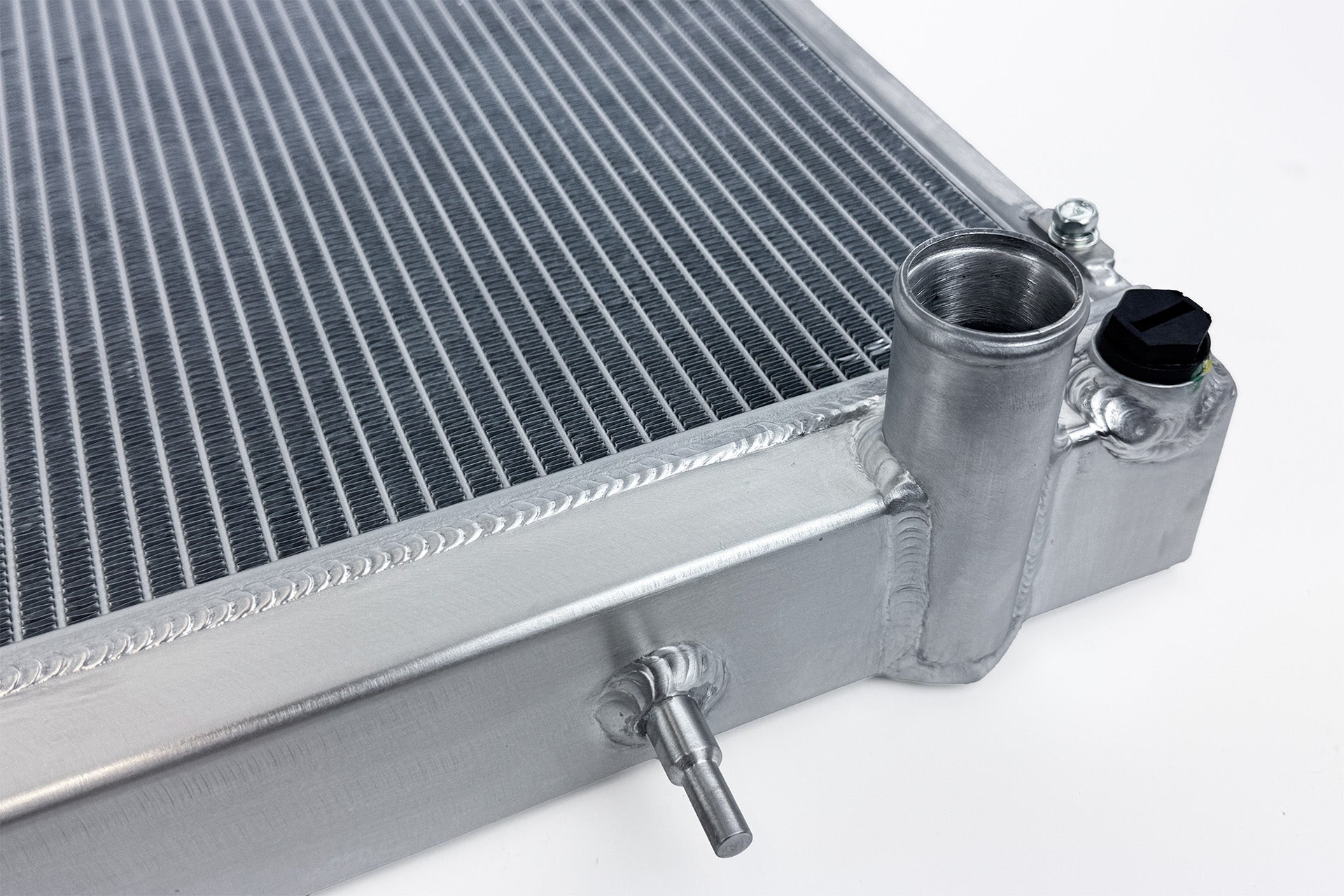

• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• M16 x 1.5P temperature sensor port with pre-installed plug
• 100% All Aluminum TIG-Welded Construction

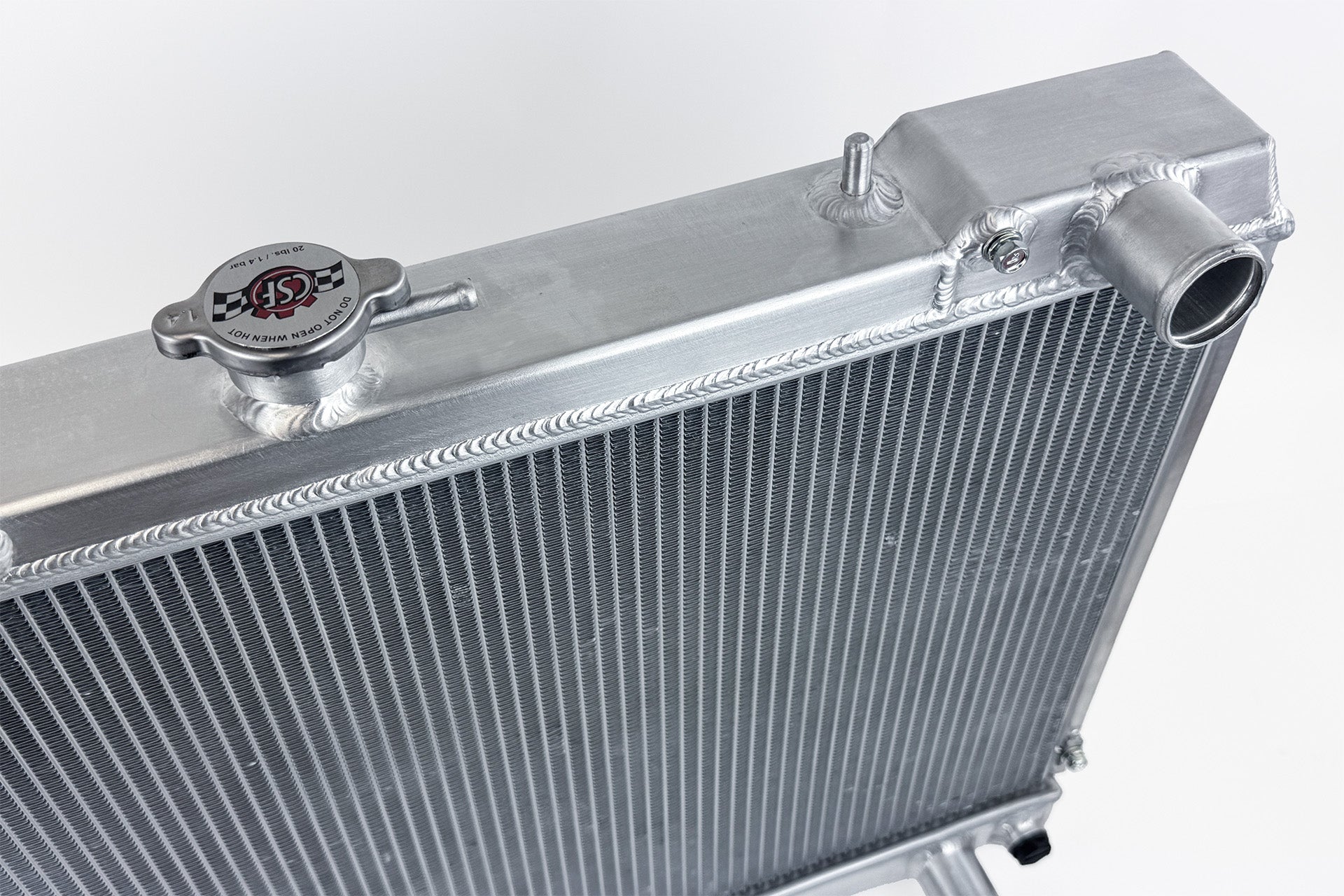

• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points

Applications:

• 1989-1994 Nissan R32 Skyline GT-R (incl. V-Spec & V-Spec II)
• 1989-1993 Nissan R32 Skyline GTS / GTS-t / GTS-4 / GTS-25
• 1989-1993 Nissan R32 Skyline GTE
• 1989-1993 Nissan R32 Skyline GXi

OEM Part Numbers:

• Nissan: 21410-04U01
