CSF is the world leader in cooling technology. From its experience starting with the transmission in the BMW F8X M3, M4, and M2 Comp, CSF applied several different features exclusive to its manufacturing technologies. An innovative dual-core design allows for a 240% increase in core volume, resulting in maximum performance and maintaining optimal shifting during extreme racing conditions - from road racing to the drag strip. During R&D, CSF consulted with a network of partners, including leading time attack teams, tuners, and more. Often, the feedback was gearbox fatigue and sluggish shifting with transmission temperatures overheating under prolonged or hard use. CSF has the answer with our industry-leading transmission cooler for the A90/91 Supra and BMW G-Series. Installed in one of the world's fastest A90 Supra - Titan Motorsports Drag Race Supra (first Supra to reach 8s in the 1/4 mile).CSF's industry-exclusive dual-core design allows for maximum performance and the largest core volume oil capacity without affecting airflow into the rest of the cooling system. No more transmission temperature overheating or expansion tank overflow during racing conditions. Designed as a drop-in fit to work with both the OEM Front Mount Heat Exchanger as well as CSF's High-Performance version (CSF #8154) with included rock guard. Also designed to utilize the OEM top/bottom rubber seals for optimal airflow into the cooling system.

Features

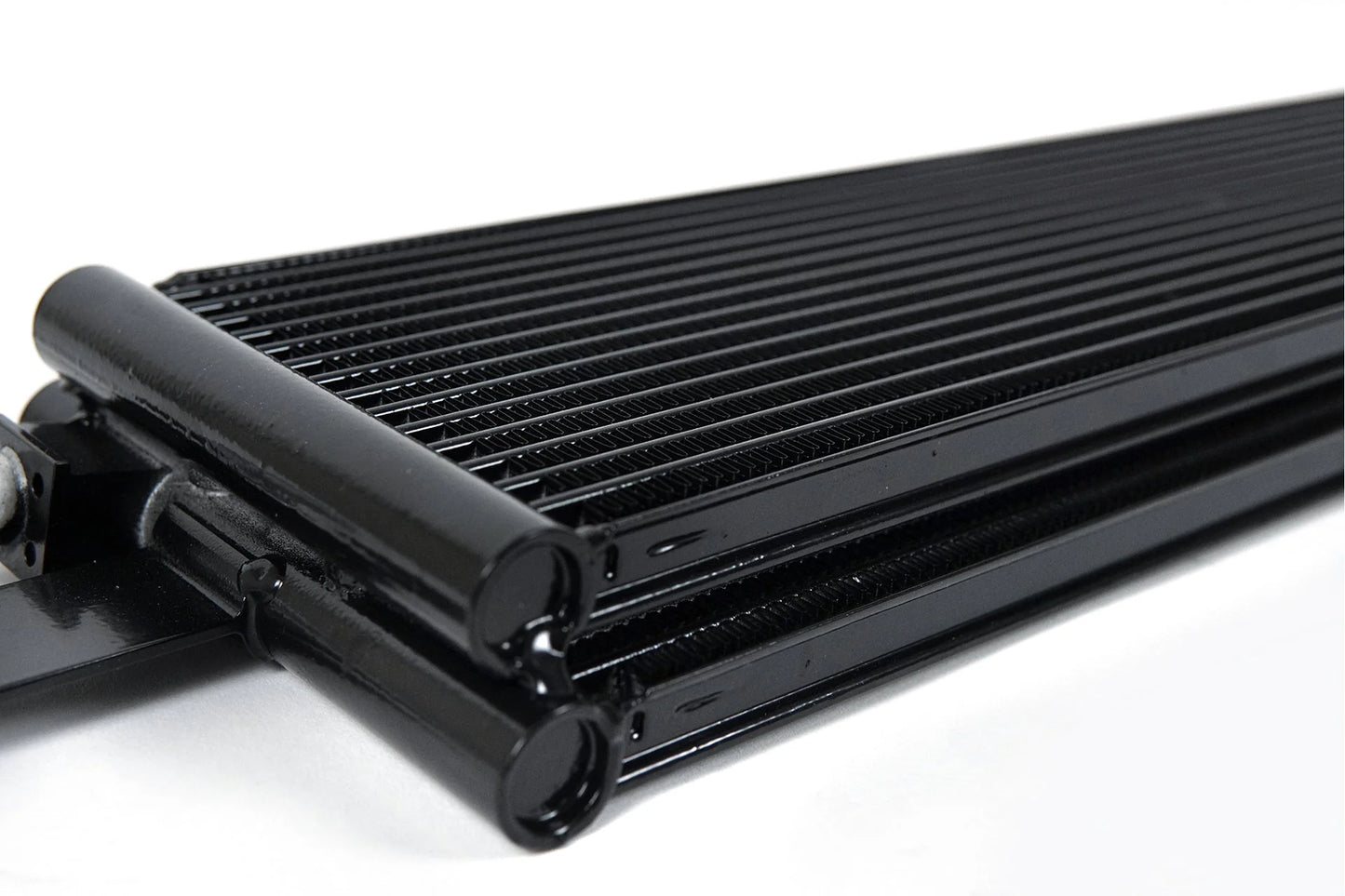

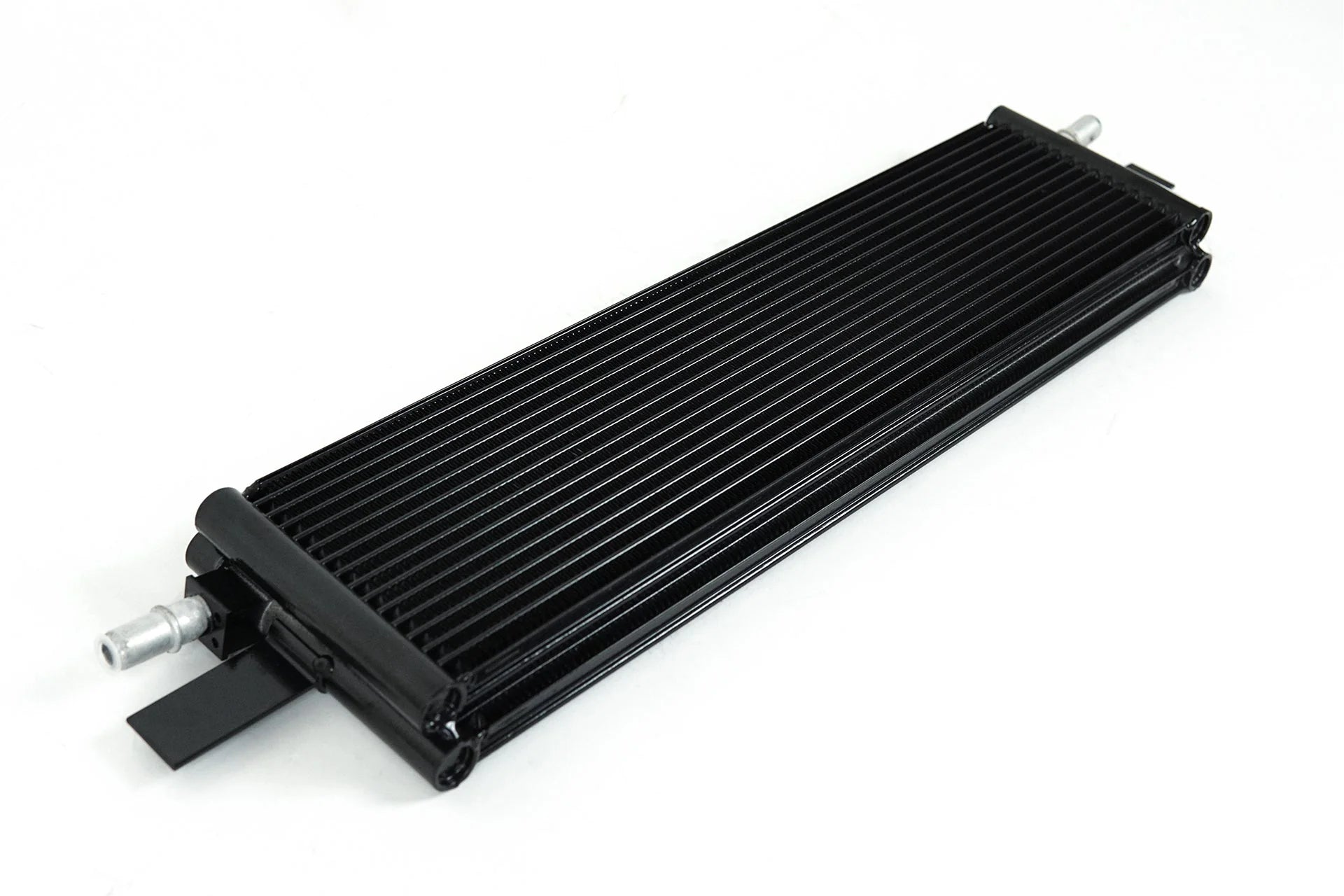

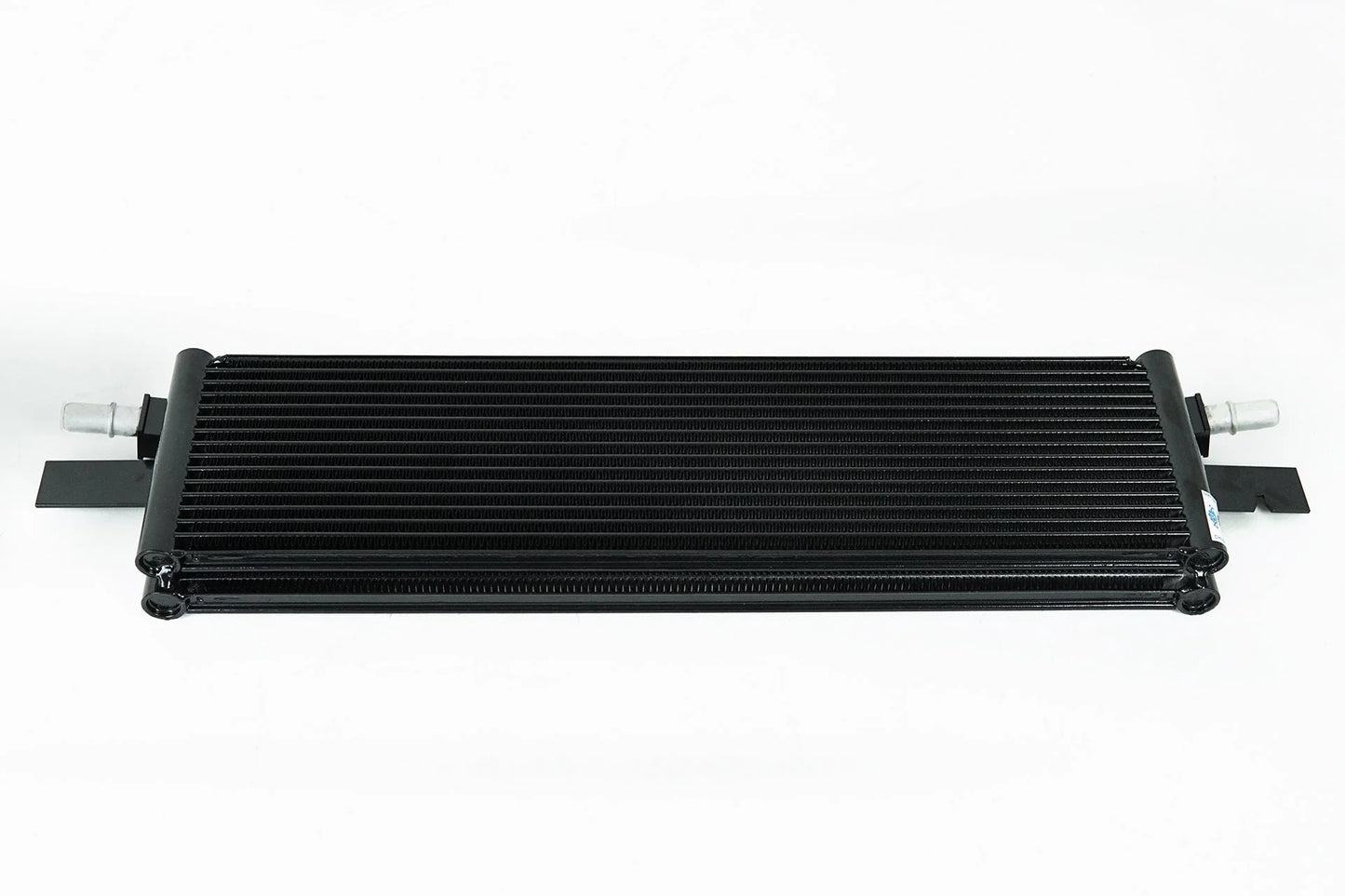

• Innovative Dual-Core Design (Industry Exclusive) vs. OEM Single Core - 240% Increase in Core Volume - 130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM 240ml)
• 5.4mm Tall Multi-Louvered Fin vs. OEM 7mm - Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width - Rear Cooler: 15 Rows vs. OEM 12 Rows - Front Cooler: Additional 12 Rows
• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
• Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
• OEM Style "Quick Connect" Inlet/Outlet Connections
• Drop-in Fit Requires No Modifications to Install

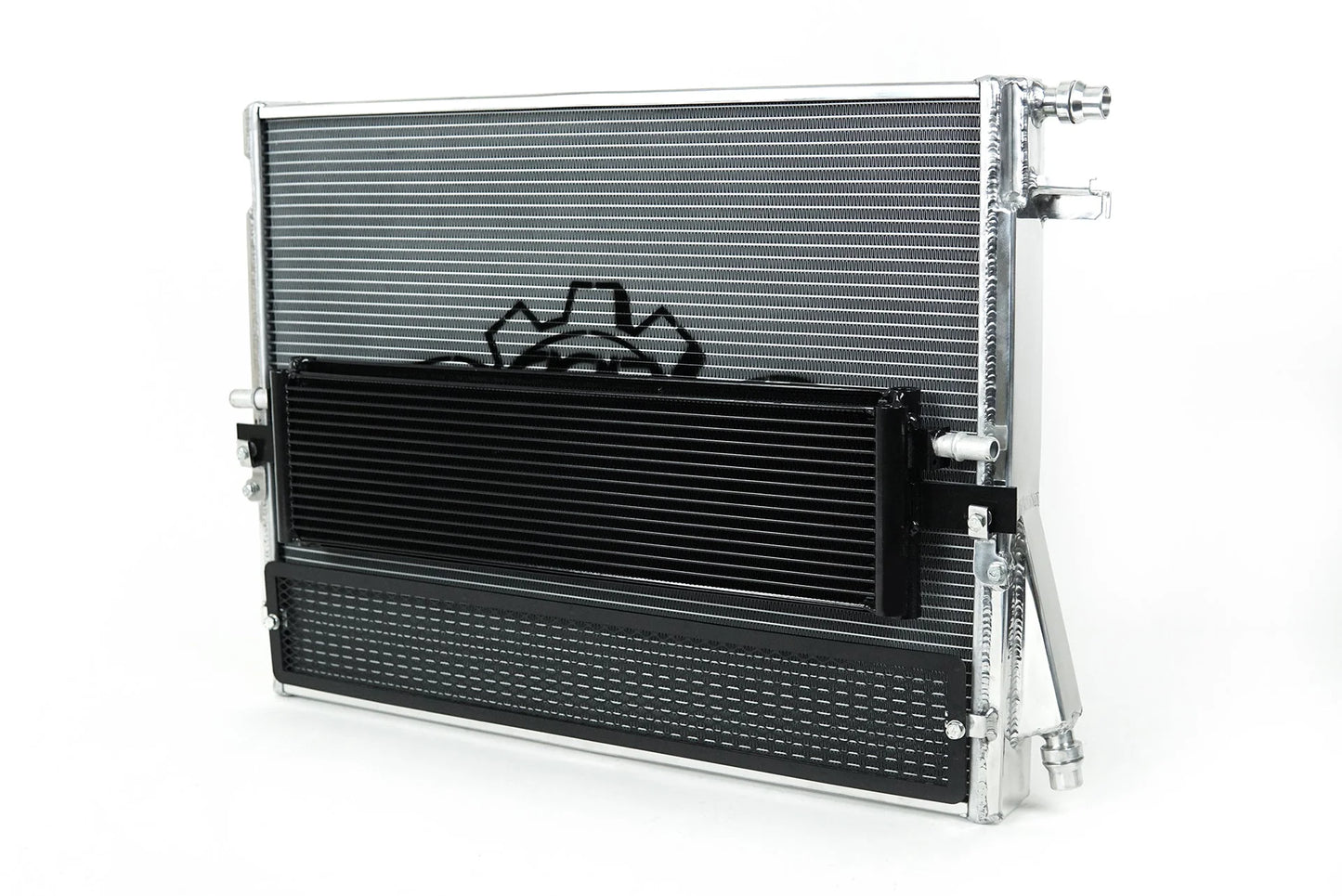

• Can be Installed With CSF's High-Performance Heat Exchanger (CSF #8154) or with the OEM Cooling System
• 2-Year Limited Warranty
• Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning

Applications

• 2023+ BMW G42 M240i - Turbocharged 3.0L L6
• 2023+ BMW M240i - Turbocharged 3.0L L6
• 2022+ BMW G42 M240i xDrive - Turbocharged 3.0L L6
• 2022+ BMW M240i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW G20 M340i - Turbocharged 3.0L L6
• 2020-2024 BMW G20 M340i xDrive - Turbocharged 3.0L L6
• 2021-2024 BMW M440i - Turbocharged 3.0L L6
• 2022+ BMW G23 M440i - Turbocharged 3.0L L6
• 2023+ BMW G22 M440i - Turbocharged 3.0L L6
• 2024+ BMW M440i Gran Coupe - Turbocharged 3.0L L6
• 2021-2024 BMW M440i xDrive - Turbocharged 3.0L L6
• 2022+ BMW G22 M440i xDrive - Turbocharged 3.0L L6
• 2022+ BMW G23 M440i xDrive - Turbocharged 3.0L L6
• 2024+ BMW M440i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2022+ BMW G29 Z4 M40i - Turbocharged 3.0L L6
• 2020 BMW G29 Z4 M40i First Edition - Turbocharged 3.0L L6
• 2020-2021 BMW G29 Z4 sDrive M40i - Turbocharged 3.0L L6
• 2024+ Toyota GR Supra 45th Anniversary Edition - 3.0L L6
• 2023+ Toyota GR Supra A91-MT Edition - 3.0L L6
• 2023+ Toyota GR Supra Premium - 3.0L L6
• 2024+ Toyota GR Supra Premium 45th Anniversary Edition - 3.0L L6
• 2020-2022 Toyota GR Supra - Turbocharged 3.0L L6
• 2020-2024 Toyota GR Supra - 3.0L L6

OEM Part Numbers

• BMW: 17 21 9 494 828 *M240i Yes
• BMW: 17-21-9-494-828 *M240i Yes
• BMW: 17219494828 *M240i Yes
• Toyota: 32910 WAA02
• Toyota: 32910-WAA02
• Toyota: 32910WAA02
