CSF Motorsport Dual-Pass Radiator with Shroud + 14" SPAL brushless fans & harnesses

CSF has been heavily involved in motorsports for years supporting teams and enthusiasts in Time Attack, GTC, SRO, Drifting, along with Drag and Roll Racing. Many of CSF’s “Drop-In” fit cooling systems are used in competition in addition to the Universal Systems. One thing that has been missing from the CSF catalog though was a large motorsport radiator; until now.

Key Features:

• Largest Motorsport Radiator on the market
• 100% TIG Welded Construction
• Massive 705mm x 448mm x 68mm Core
• CSF’s Exclusive B-Tube Technology and 8mm super-efficient mulit-louvered fins
• Dual Pass Core for maximum efficiency
• 20AN ORB Inlet/Outlet fittings for maximum flow
• 6AN ORB ports for sensor mounting and bleeding
• 8 (4 per tank) M8 x 1.25 Bosses Mounting Bosses
• Available as a full Cooling Module that includes a Shroud, 14” SPAL Brushless Fans, and Jumper Harnesses (CSF #8374)

Radiator Core

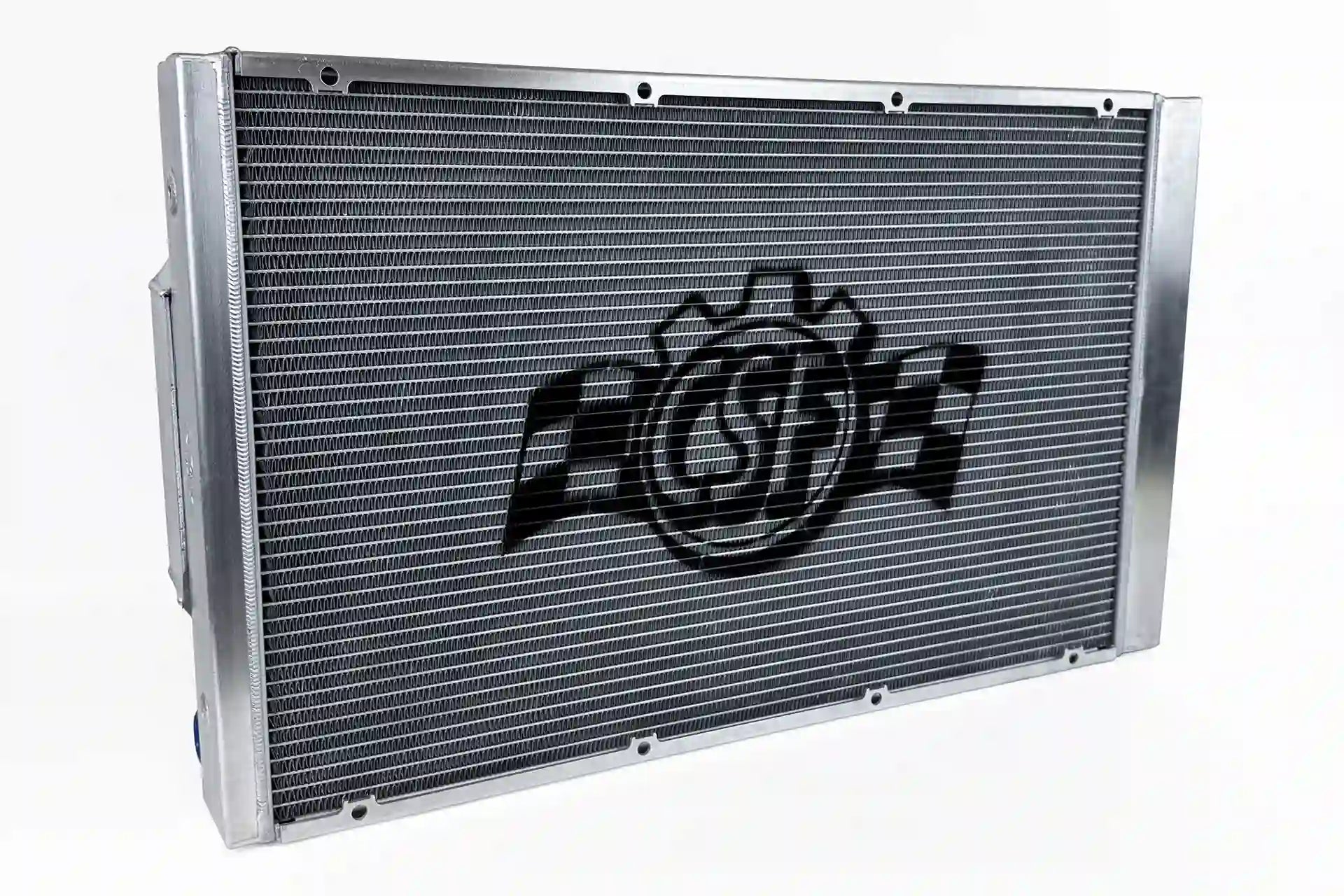

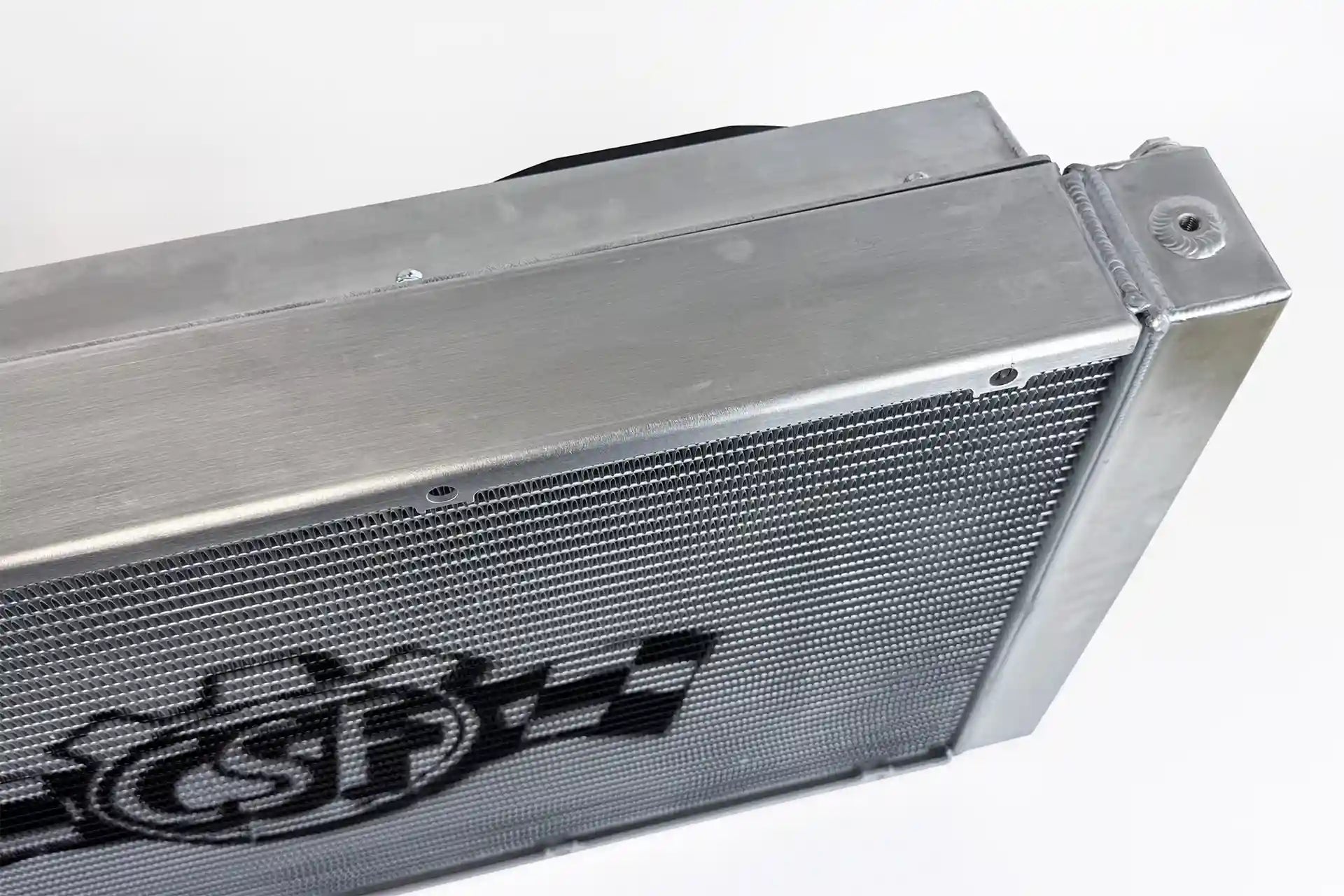

The new Motorsport Dual-Pass Radiator is the largest and most efficient cooler CSF has produced. It features a mammoth 705mm x 448mm (27×75” x 17.5”) core that is 68mm thick. The 68mm core is 24% thicker than the nearest competitor which uses a 55mm core. This means more heat transfer and thermal capacity than any other radiator on the market.

Dual Pass Design

A dual pass configuration was chosen for a number of reasons. The design has several benefits but mainly boils down to cooling performance and ideal configuration.

Performance

From the performance perspective; a dual pass core offers a great balance between optimal cooling and back pressure. By extending the coolant flow path, coolant stays in the radiator longer allowing for additional heat dissipation. While a triple pass may offer even more benefits in this regard, it also creates more resistance and in turn pressure drop. Depending on your setup, this might not be an ideal design. The dual pass design offers a nice balance between ultimate cooling performance and coolant pressure regulation.

Configuration

The other benefit of the dual pass design is it places both fittings on one side of the radiator. This configuration is much easier for setting up a remote or rear mounted radiator. Builders can run the inlet and outline lines together for simpler fabrication and overall shorter coolant lines. The fans can also be clocked in 4 different positions to make wire routing easier.

Fittings & Mounting

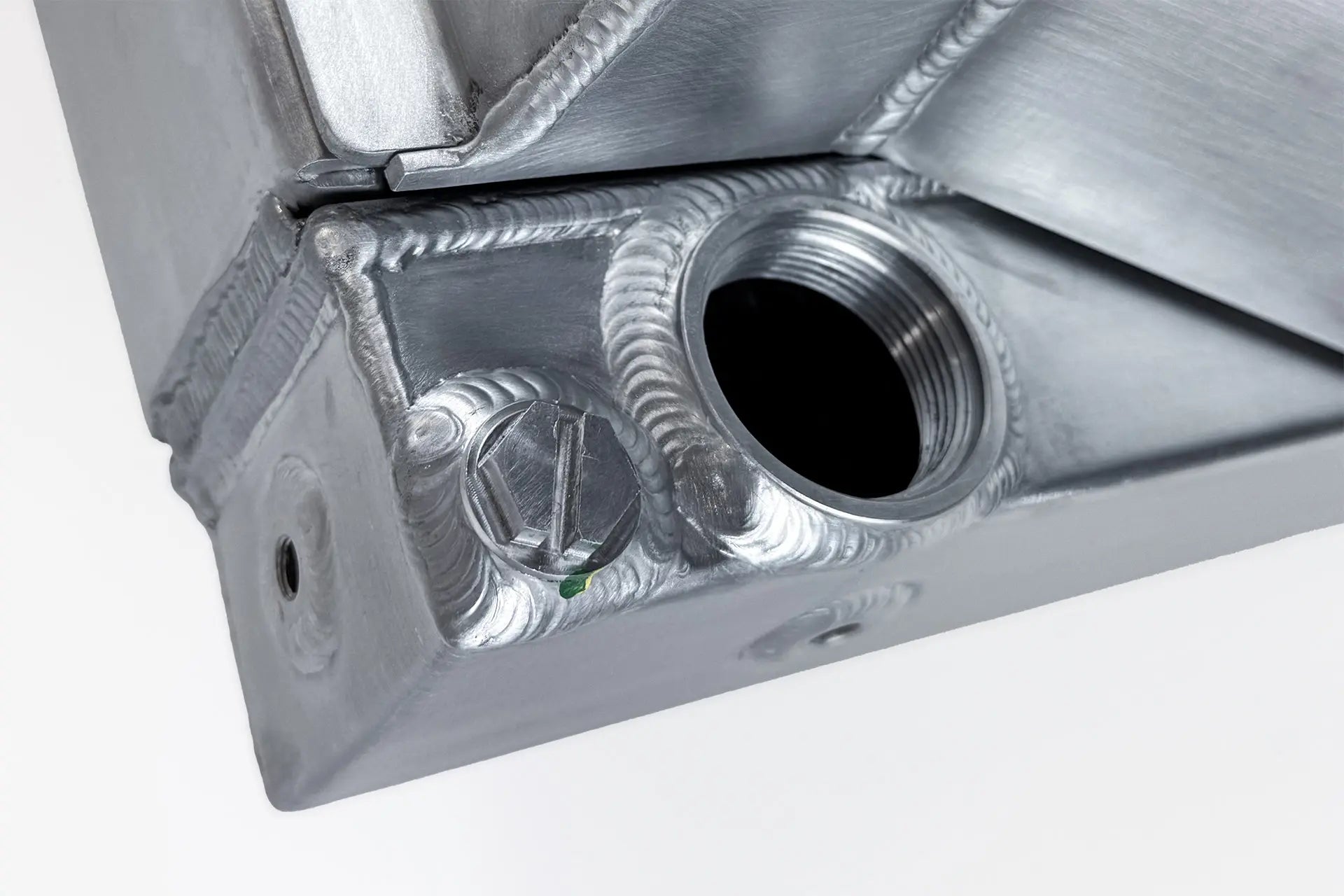

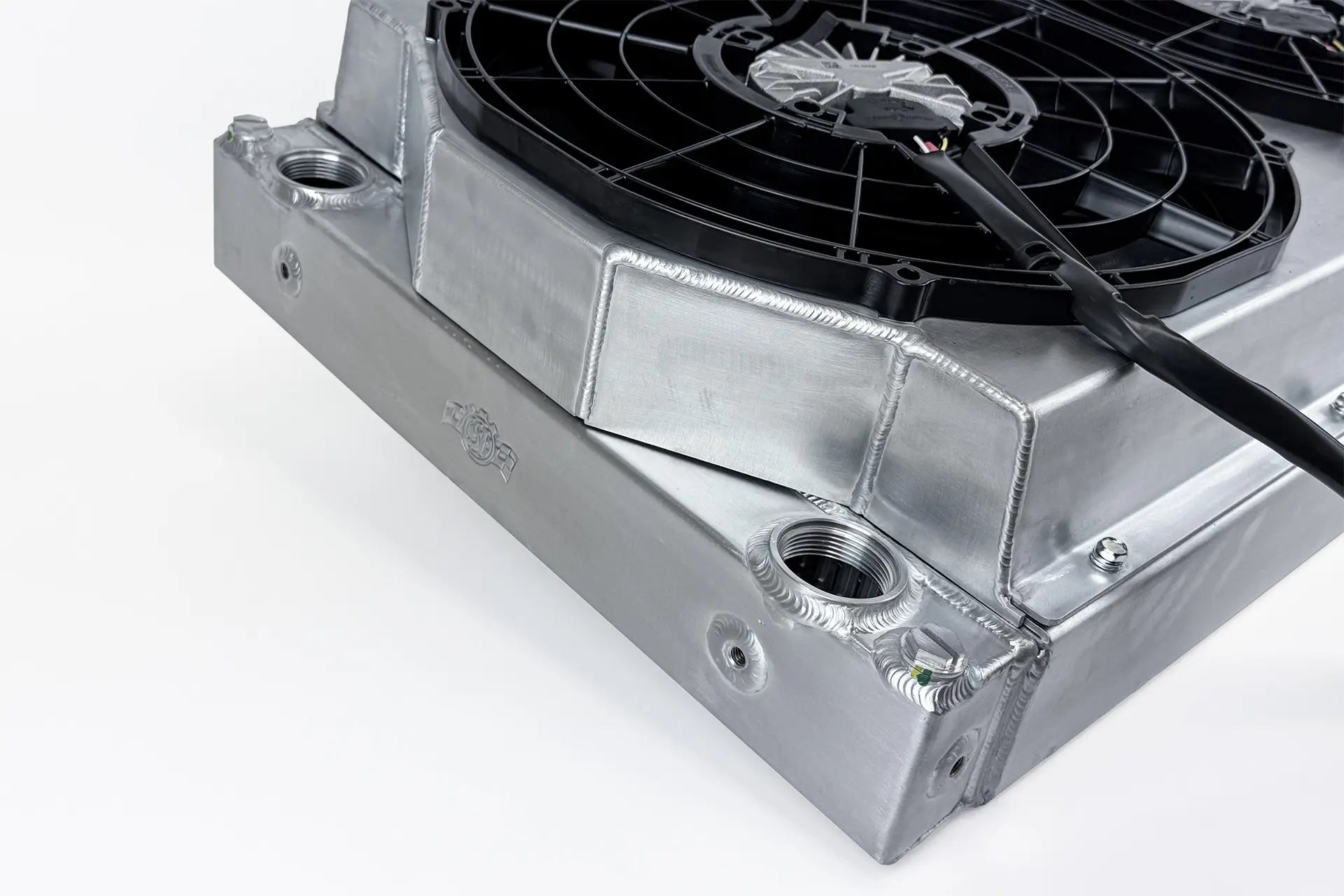

The radiator features threaded -20AN ORB ports for the main coolant inlet and outlet for maximum flow capabilities. One piece of feedback CSF has gotten over the years with the R-1 Triple-Pass “Ultimate Motorsports” Competition Radiator (CSF #8023) has been wanting something with -20AN capabilities instead of only -16AN.

Mounting Bosses

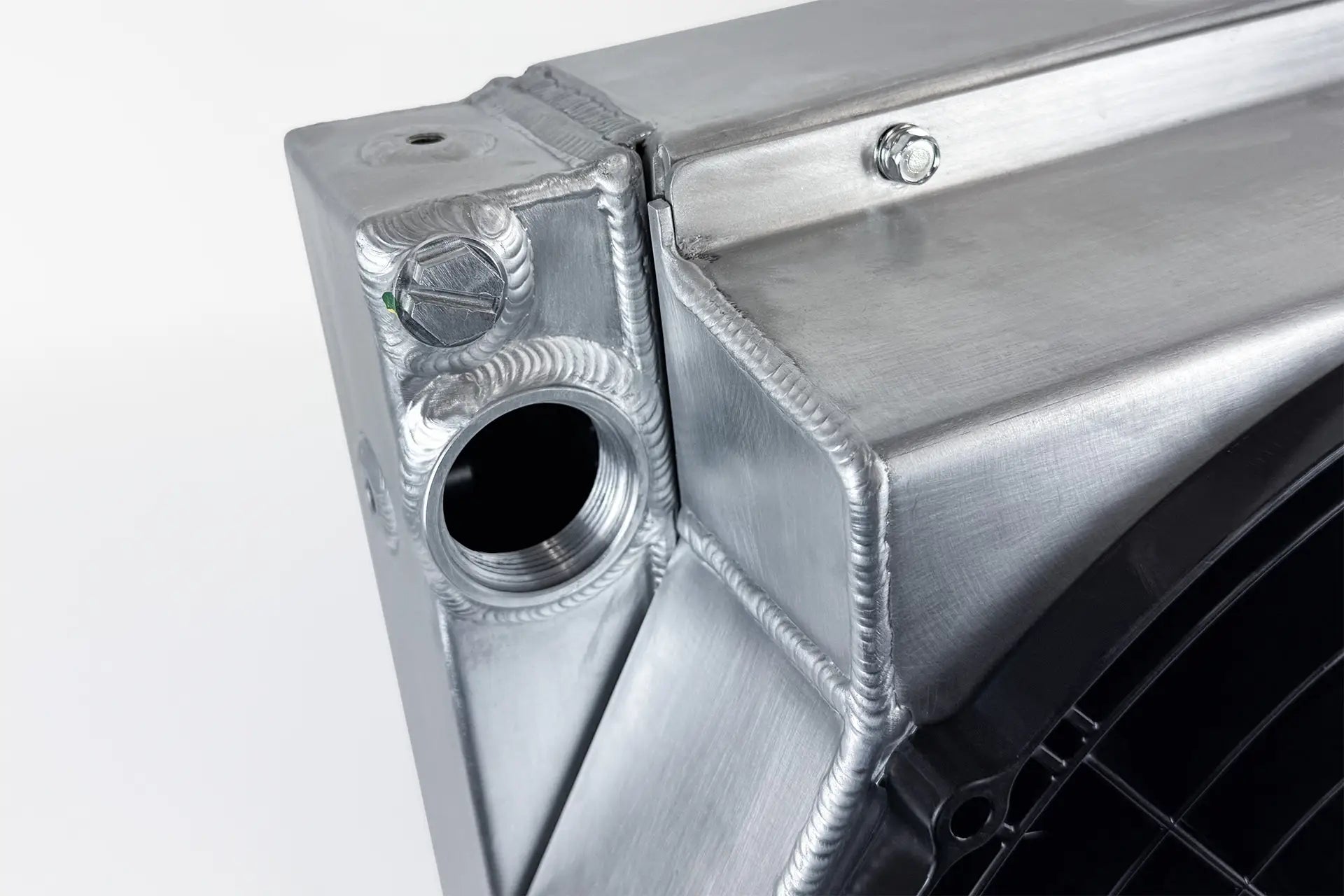

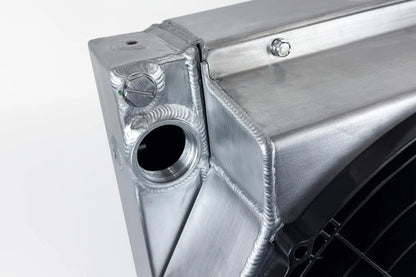

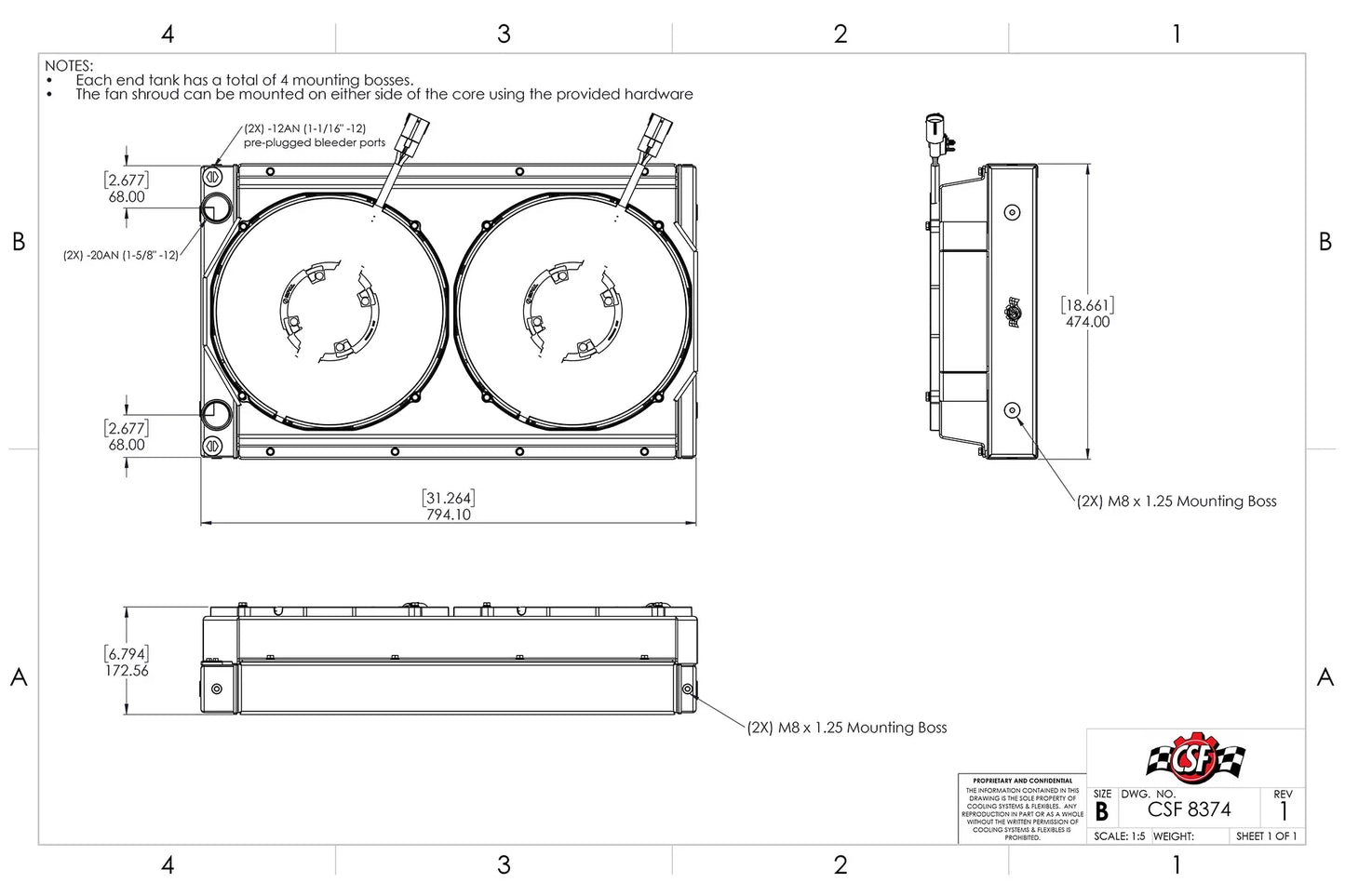

CSF designed the Motorsport Radiator to give fabricators and builders a wide variety of mounting options. Because this radiator will be mounted in different positions and orientations depending on the application, the engineers wanted to make sure there were mounting bosses for any type of setup. Each tank is equipped with four M8x1.25 mounting bosses. One on the top and bottom of each tank, and two on the sides. This allows for bolt-on mounting for any type of structural frame or cradle no matter how or where the radiator will be mounted.

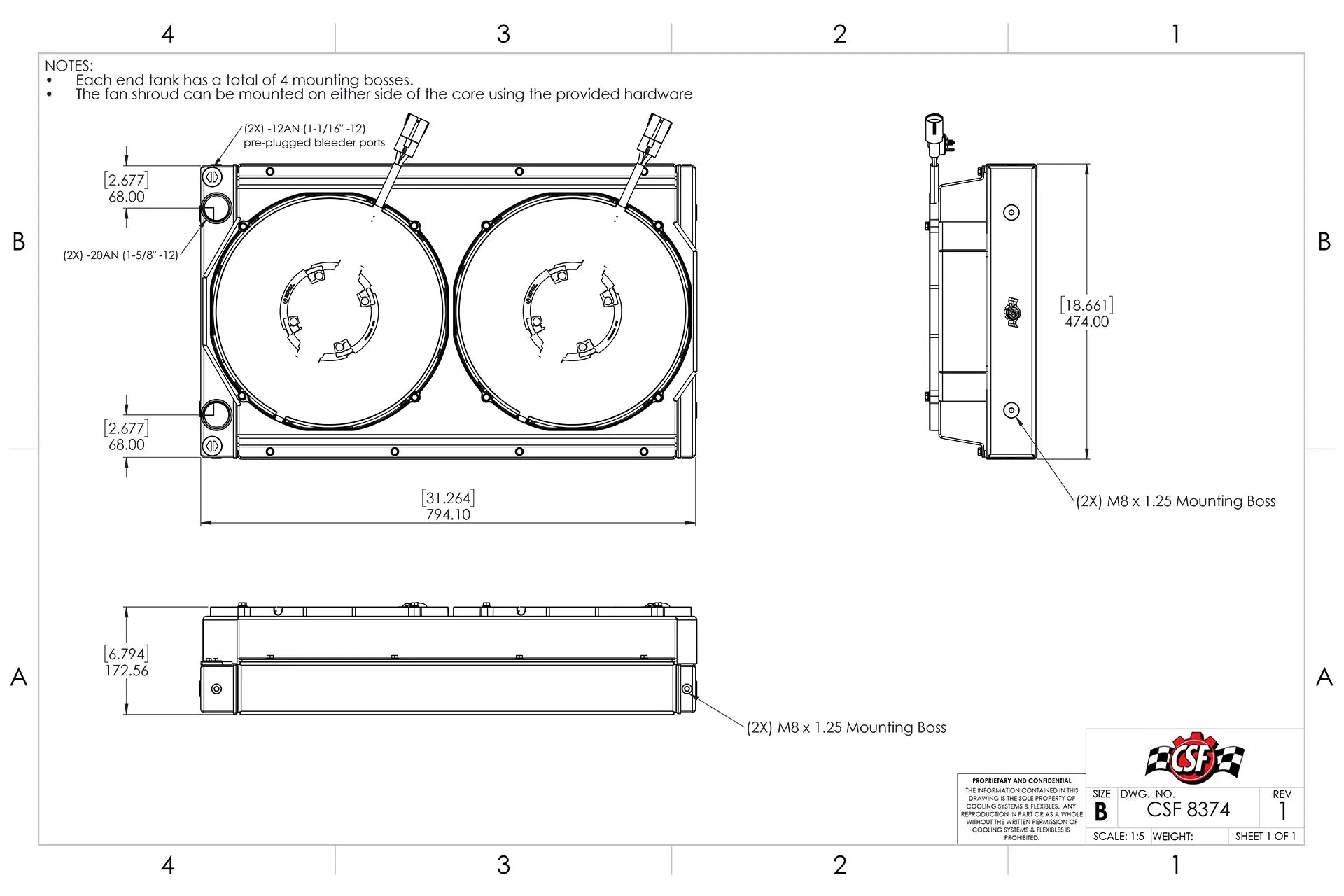

Shroud + 14” SPAL Brushless Fans & Harnesses

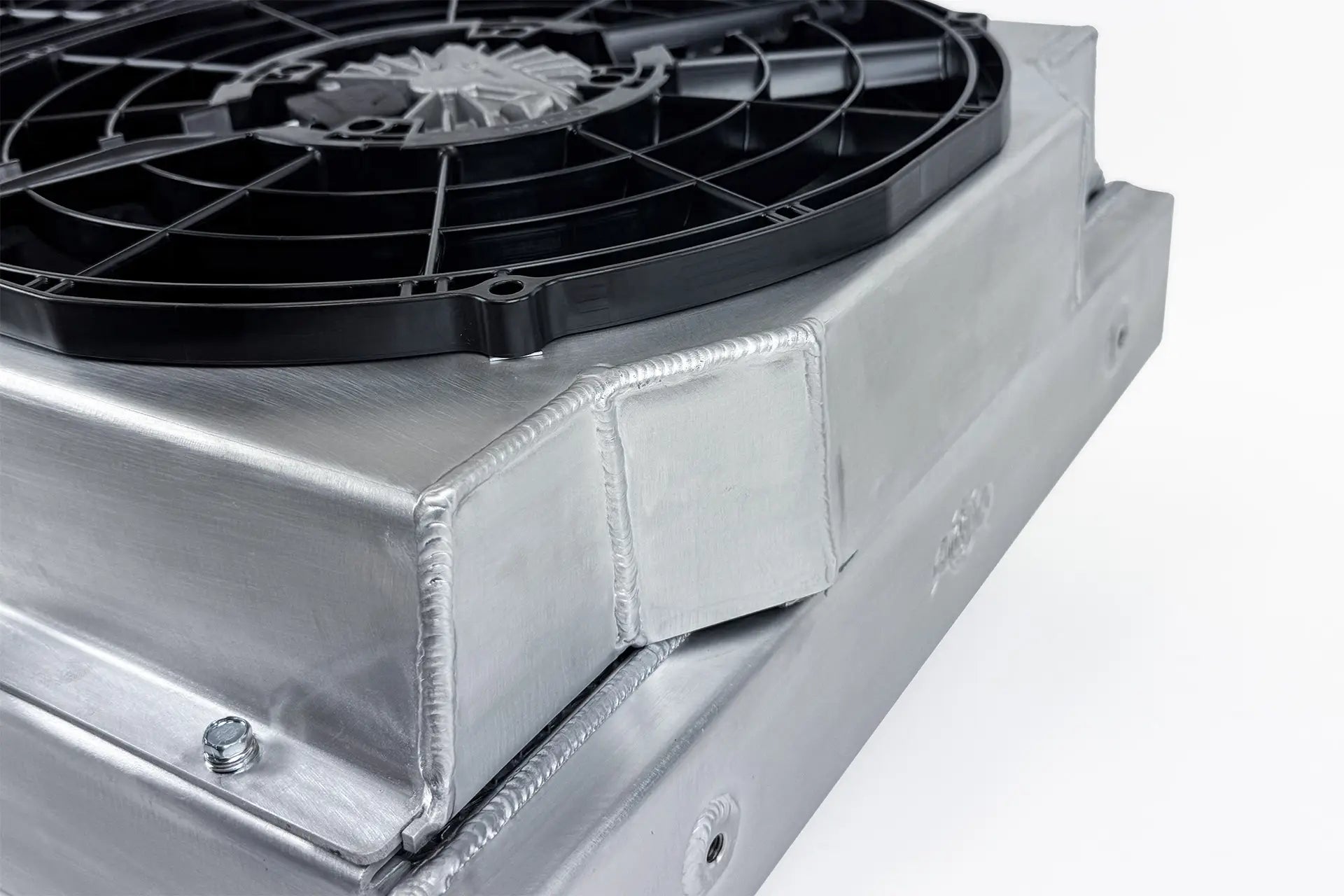

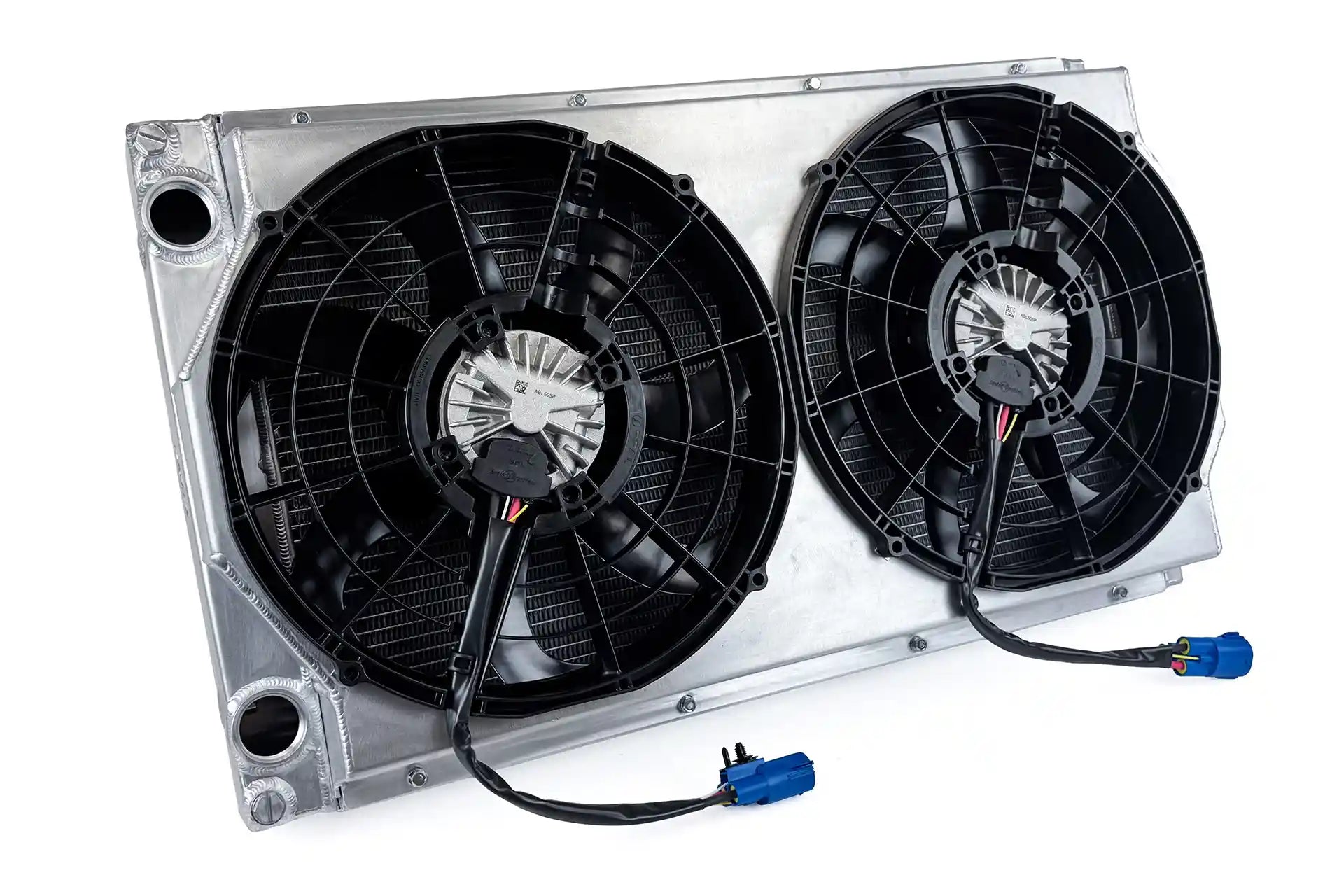

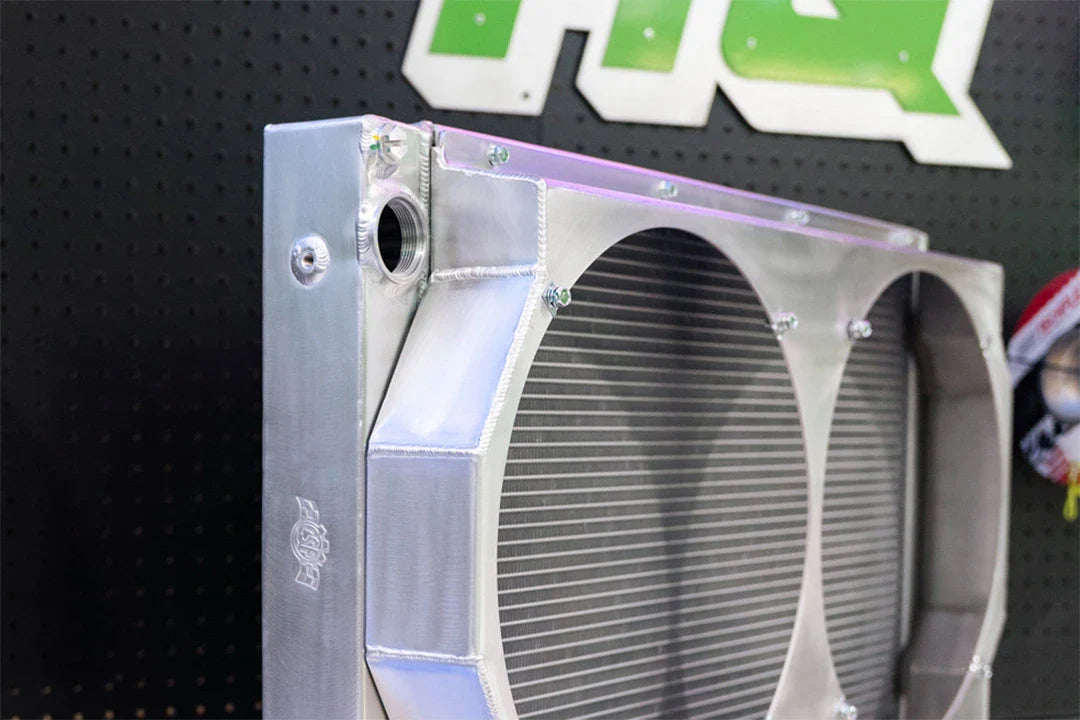

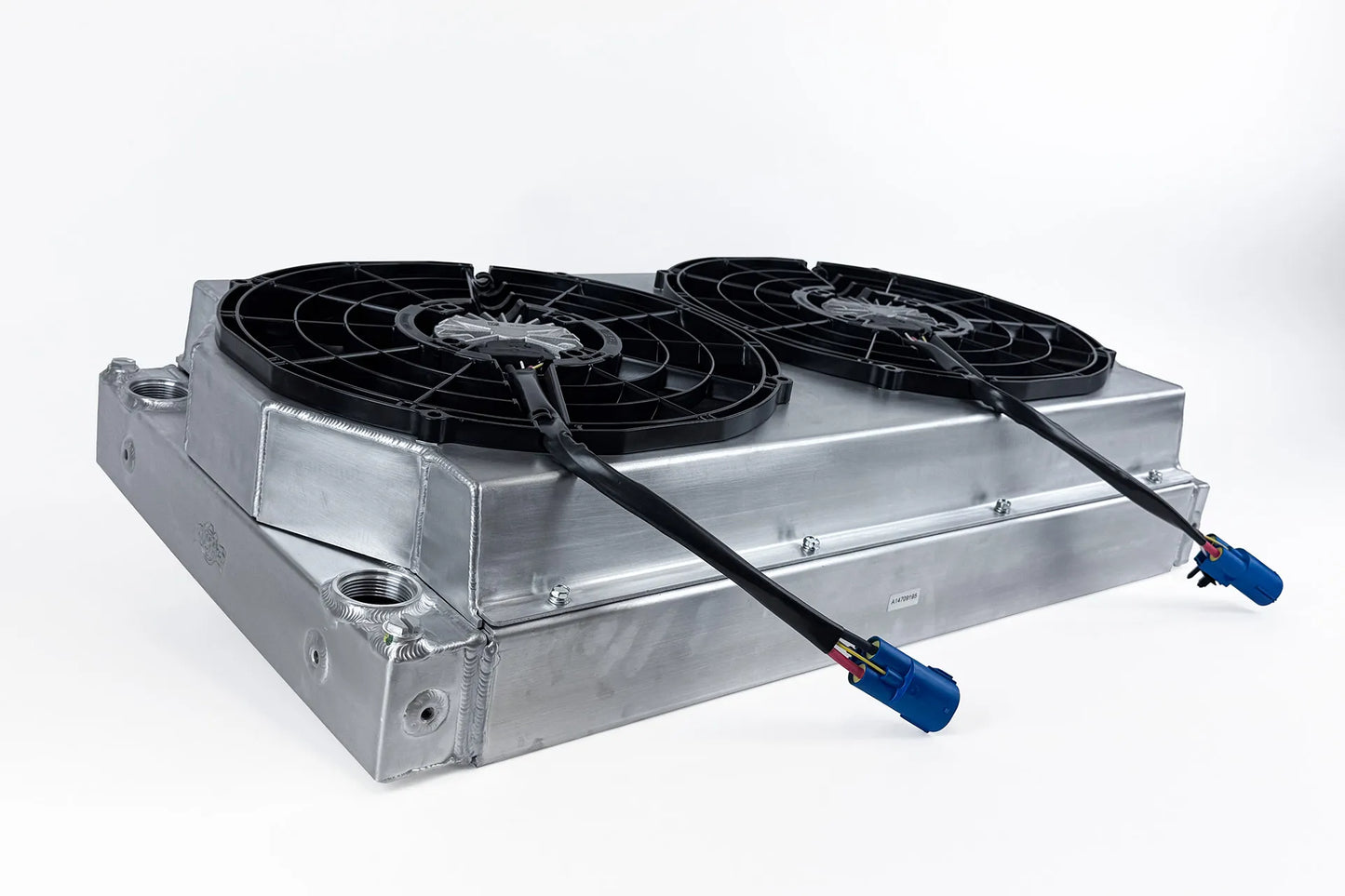

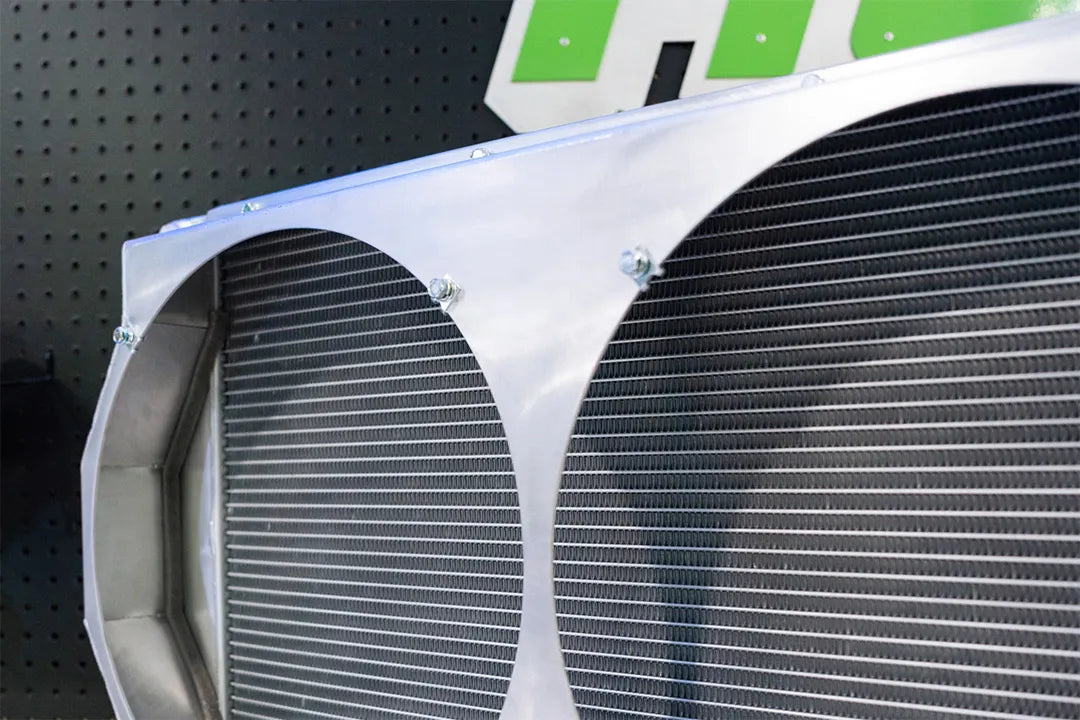

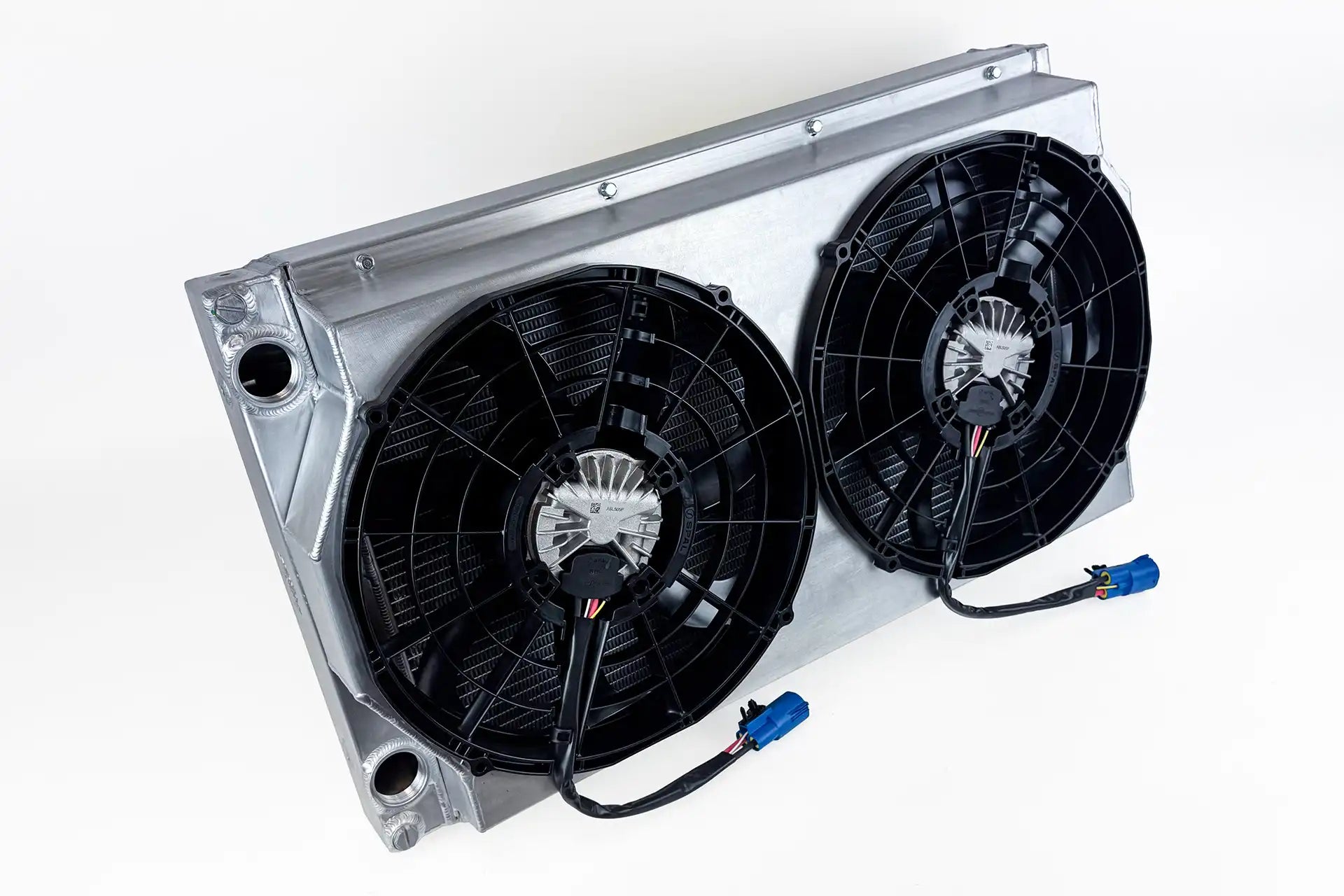

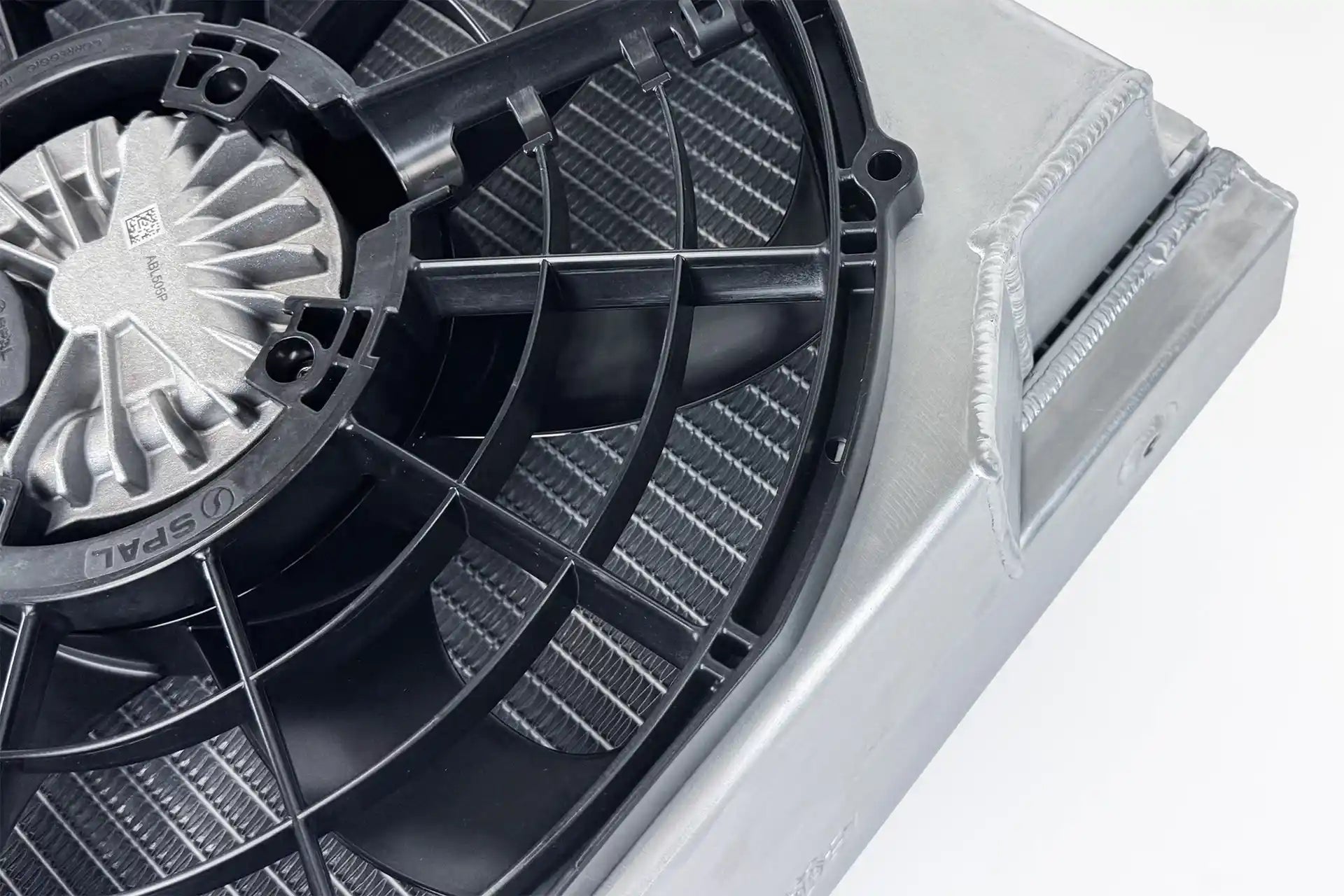

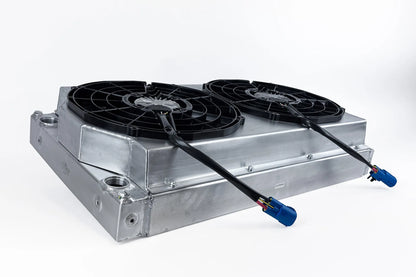

SPAL Brushless Fans (CSF #8374). The shroud is made of TIG welded laser cut aluminum that bolts to either side of the radiator. The fans are 14 inch (355mm) SPAL ABL505P 12V Brushless Puller Fans (SPAL 30107102). Each fan is capable of moving 2395 CFM (4060 m3/h) of air for a combined total of 4790 CFM (8120 m3/h). The shroud and fan module was designed with drifting in particular in mind. Due to the lack of airflow from racing sideways, there is a huge burden on the cooling system. These fans combined with a precision made shroud offer ample airflow for the radiator in the most adverse conditions and situations. This module is also well suited for high power rock crawlers that see minimal airflow as well as trophy trucks that deal with a lot of clogging from sand.

Wiring Harness Included

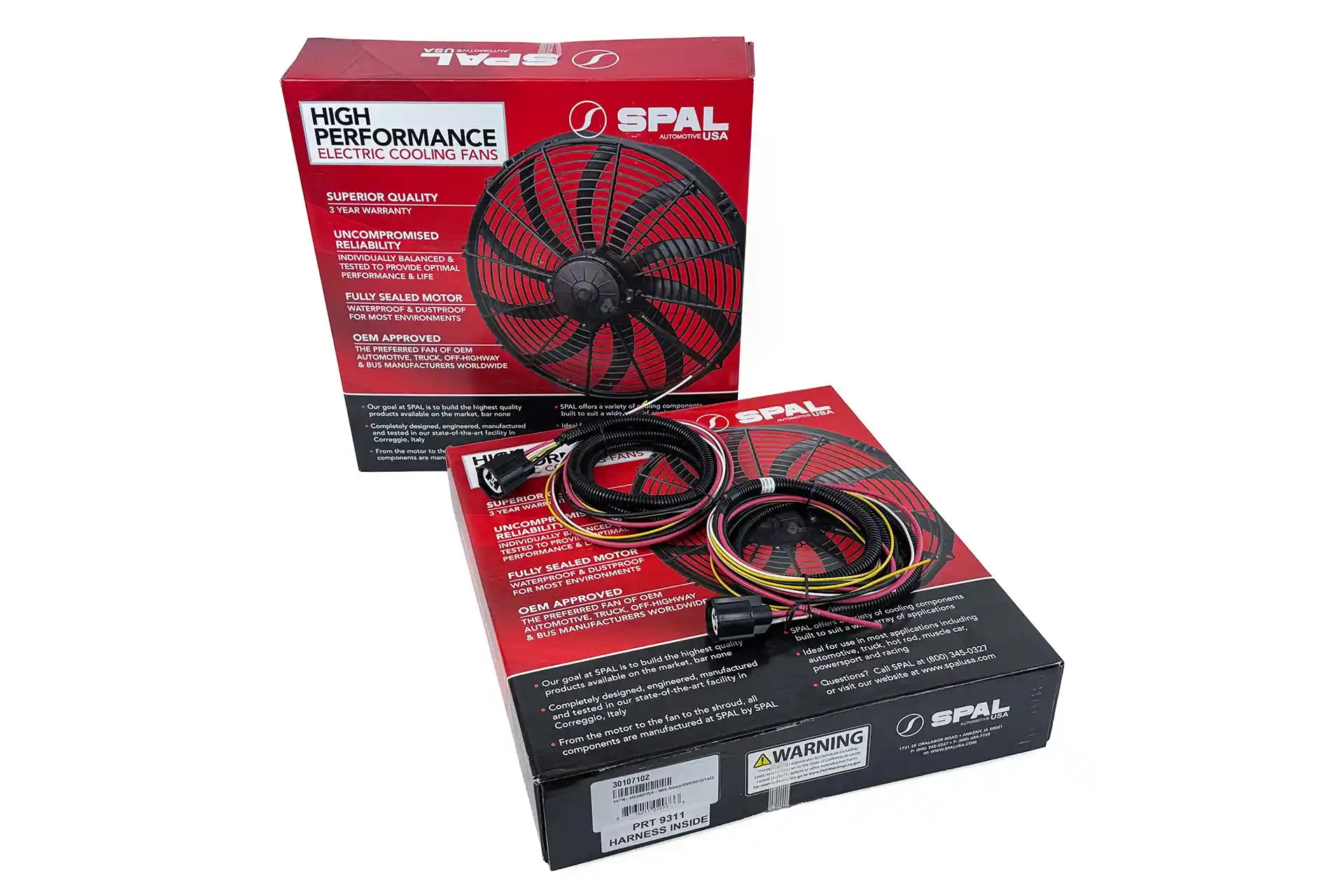

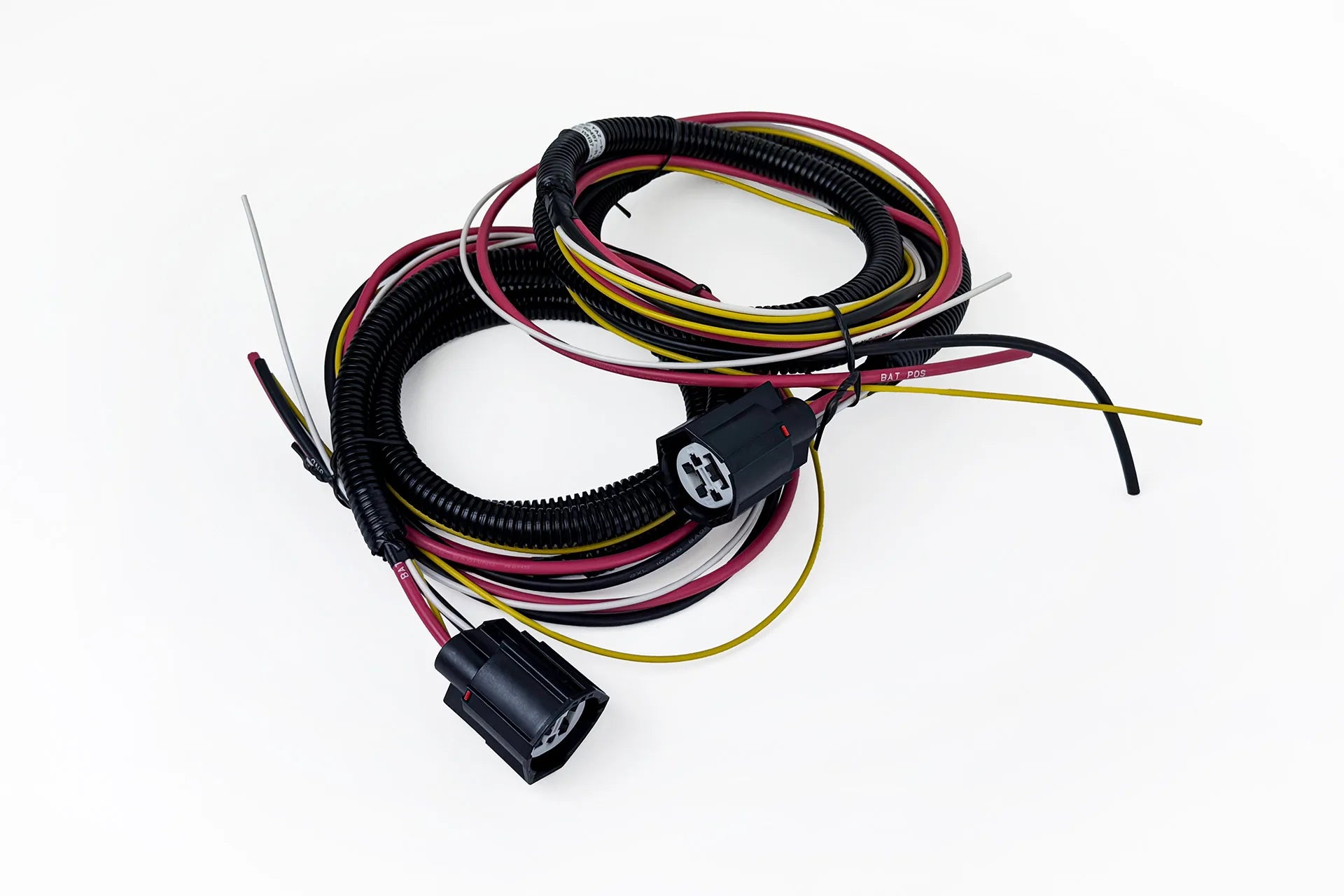

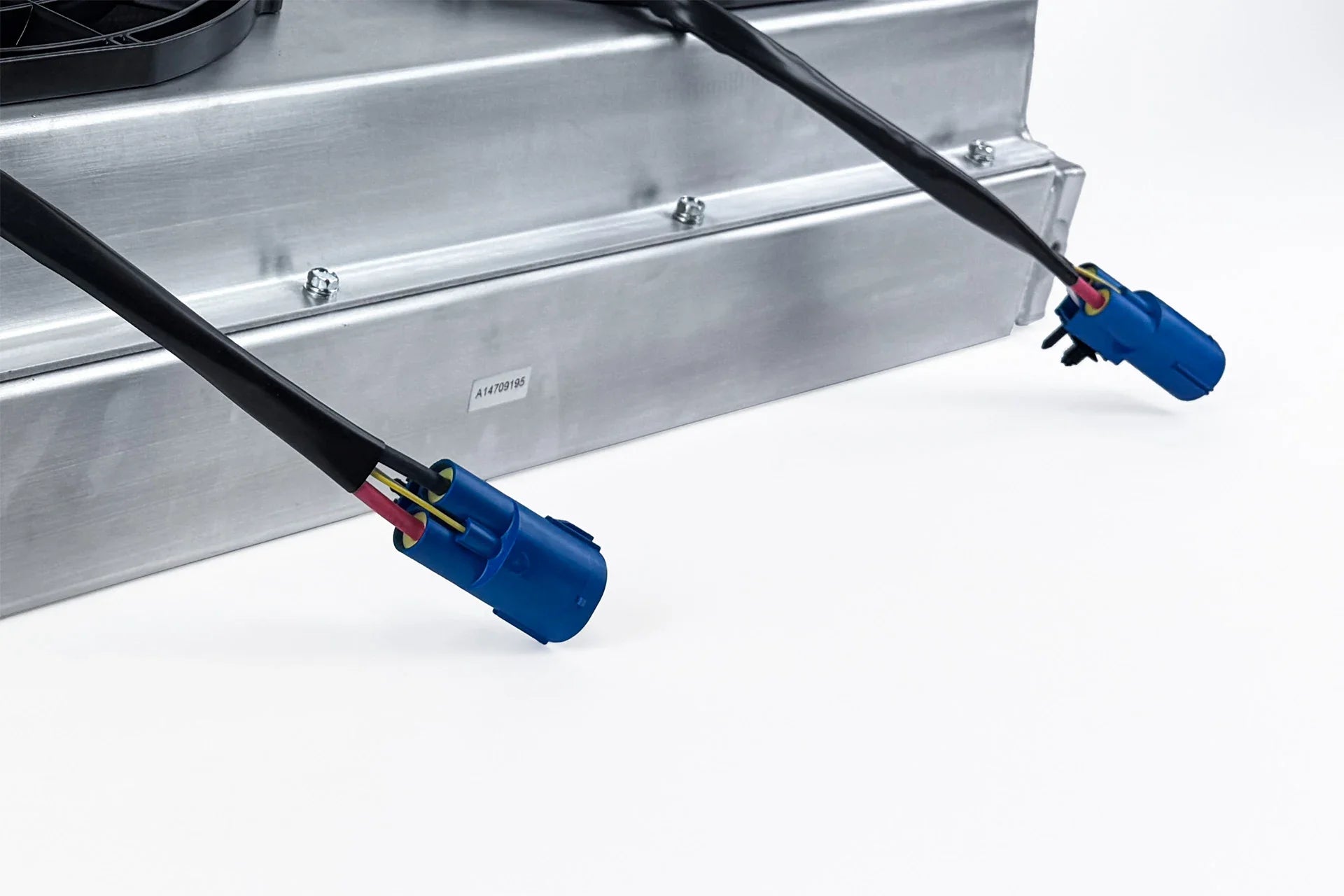

Most aftermarket fan kits don’t include the jumper harnesses (pig tails) and rely on the customer to source their own or rewire in the factory connectors. While this works when replacing factory cooling fans, custom race setups can’t always rely on this method. Especially when the radiator will not be mounted in the factory location. CSF includes the jumper harnesses (SPAL SBL-YAZ-PT10) with the #8374 to make the wiring process as easy as possible. These harnesses include the plug and play connectors that match the SPAL Fan (PN: 30107102) connectors. The large gauge wiring allows for sufficient power to be run to the fans and simplifies the fabrication and setup process. This kind of detail is often overlooked by manufacturers but CSF went the extra mile to make the installation process as easy as possible.

Custom Shroud Provisions

CSF understands that many customers would prefer to design and fabricate their own shroud in some cases. The Radiator only (CSF #8378) includes fasteners (8 U-Nuts and Bolts) for your convenience. This is a great option for those wanting a low profile design, different spec fans, or have specific space constraints.
