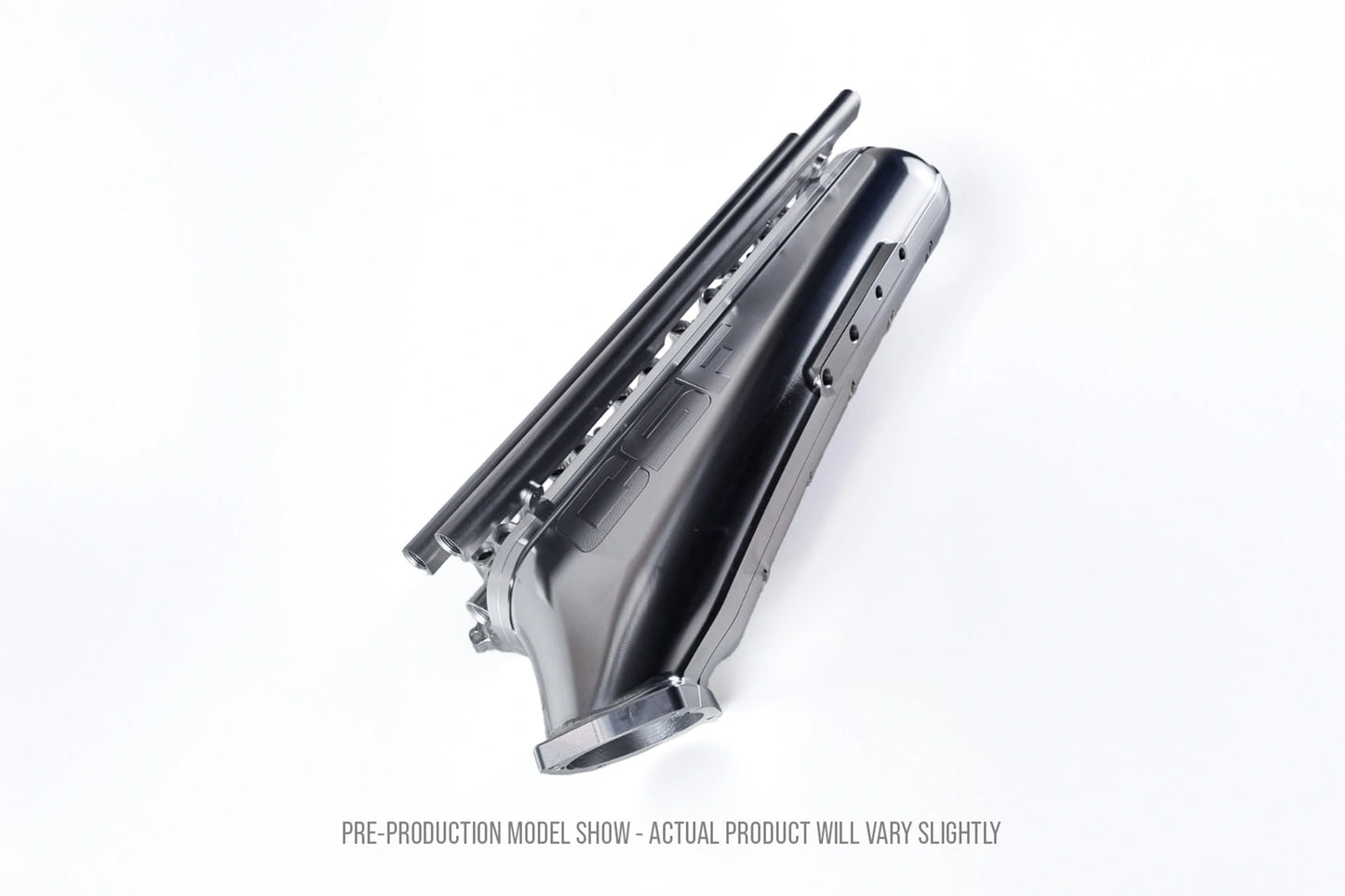

CSF No Limit BMW S58 Air-to-Air Competition Manifolds

The CSF S58 air-to-air competition manifold is built for high performance, improving airflow, cooling, and durability where it matters most. This BMW S58 CSF manifold is precisely designed for supporting high-boost and tuned engines by improving intake efficiency and reducing heat buildup. As a premium performance manifold BMW S58, it delivers consistent power and reliability for both track-focused builds and high-performance road cars.

Performance Highlights

• It is designed for high-boost and performance-driven S58 engines
• It improves airflow for enhanced engine response and efficiency
• Helps to maintain stable intake temperatures under demanding conditions
• Supports highly advanced fueling and performance upgrades

Features

• Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)
• Internal Velocity Stacks
• Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
  • CSF recommends using VTT-FAB Extension Harnesses – B58/S58 to S55 TB Conversion
• Top Feed Port Injection – capable of running 6 or 12 injectors.
• Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
• Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
  • Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
• Includes CSF’s proprietary Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
• High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
• Includes Hardware and Installation Kit with picture diagrams and BOM
• S58 version comes with billet oil filter housing adapter to make filter accessible without removing the manifold
• Plenum inlet angle optimally designed for easier intercooler pipe routing
• Comes Finished in Raw Billet Aluminum – Custom Finishes available (Powder Coat, Cerakote, or Anodizing)
• Includes:
  • One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
  • 6 Injector Block Off Plugs
• Optional Add-Ons (not included):

Includes:

• One Fuel Rail for Top Feed Port Injection (for 6 injector setup)
• 6 Injector Block Off Plugs

Optional Add-Ons (not included):

• 2nd Fuel Rail (for 12 Injector setup)
• Individual Runner Nitrous / Methanol adapter kit


CSF-8402 Applications:

• • S58 motors including swapped vehicles
    • 2021+ BMW G80 M3 (incl. Competition) – 6MT & ZF8 Auto
    • 2021+ BMW G82/G83 M4 (incl. Competition) – 6MT & ZF8 Auto
    • 2022+ BMW G81 M3 (incl. Competition) – 6MT & ZF8 Auto
    • 2020+ BMW F97 X3 M (incl. Competition)
    • 2020+ BMW F98 X4 M (incl. Competition)
    • 2022+ BMW G87 M2 (incl. Competition) – 6MT & ZF8 Auto

Key reasons to Choose CSF Engineering? (Trust Signals)

• Made by CSF, a globally recognised performance cooling specialist
• Precision-engineered for high-performance and motorsport applications
• Tested to handle extreme pressure and temperature conditions
• Designed to integrate with advanced tuning setups

FAQs

1. Why the CSF S58 air to air competition manifold is considered different from stock?

The CSF S58 air to air competition manifold is considered ideal for improving the airflow and cooling efficiency, helping reduce heat buildup and maintain consistent performance under load.

2. Does BMW S58 CSF manifold considered appropriate for high-performance builds?

Yes, this BMW S58 CSF manifold is designed for high-boost and modified engines, supporting advanced tuning and performance upgrades.

3. How does the CSF performance manifold BMW S58 boost the engine performance?

The CSF performance manifold BMW S58 promotes airflow as well as intake cooling, helping deliver more stable and reliable power output.

4. Does installation require additional upgrades?

Yes, for best results, it is recommended to pair this manifold with a larger throttle body and supporting performance modifications.
