CSF Radiators - CSF-7059

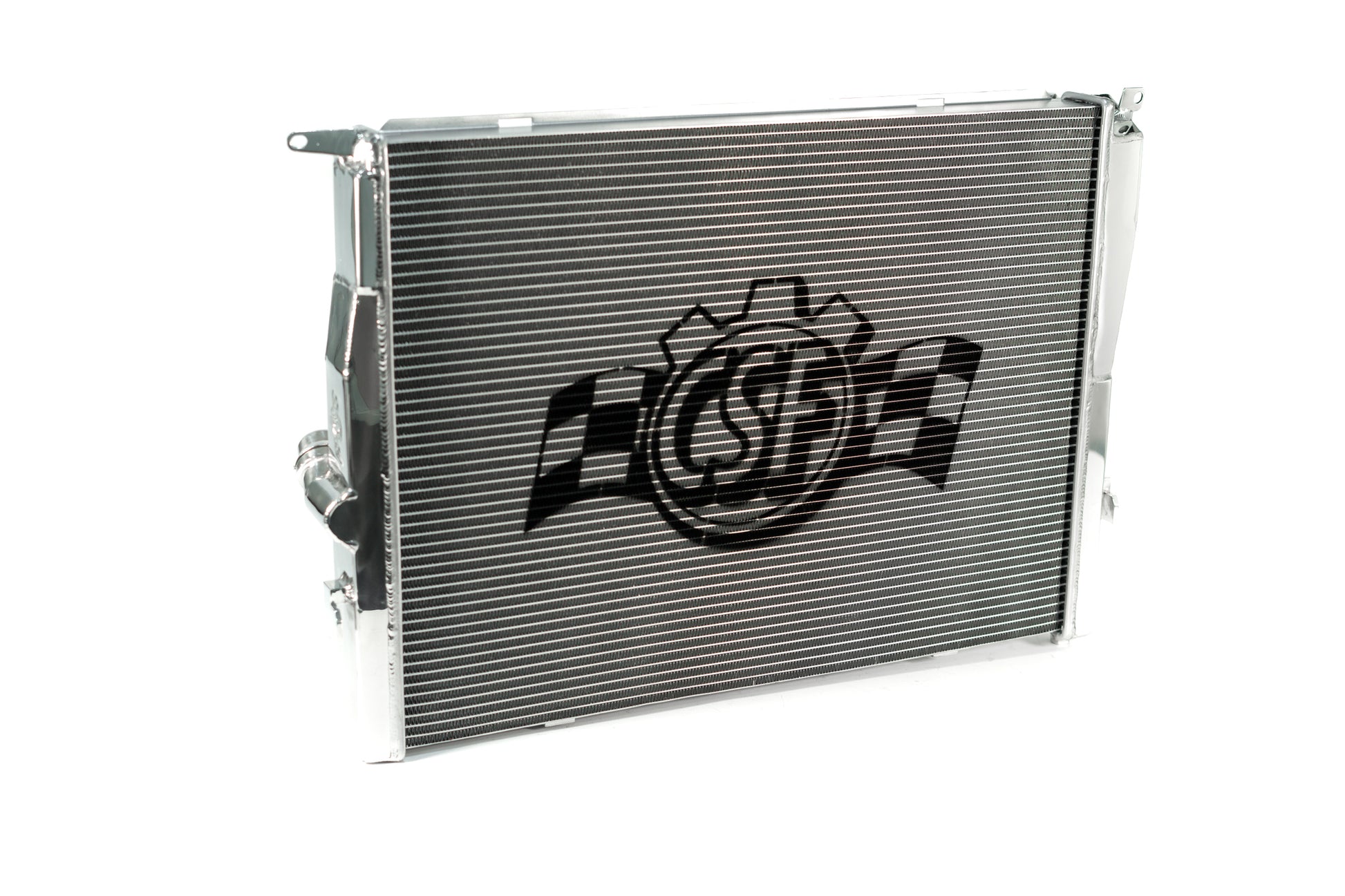

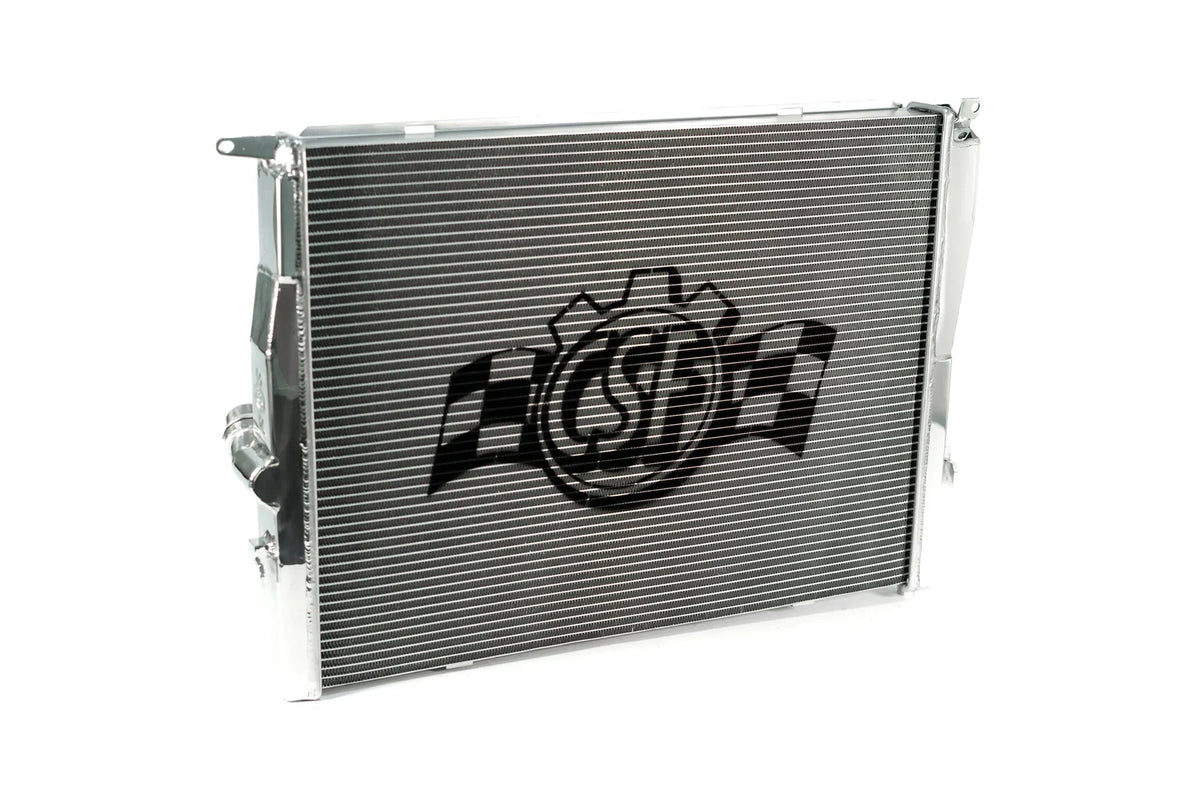

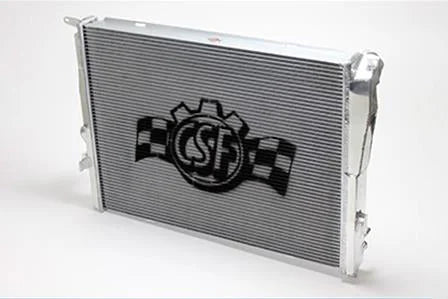

BMW E9X M3 Triple Pass High-Performance All-Aluminum Radiator

Regular price
£708.00 inc. VAT
(£590.00 ex. VAT)
In Stock Now!
Regular price Sale price £590.00 GBP
Sale Sold out
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your E9X M3 running at its best, a CSF High-Performance ...
Payment Icons
BUILD QUALITY AND PERFORMANCE IS GREAT
“Used these radiators to keep my track Porsche cool and also my supercharged E39 in check. Build quality and performance is great, so much so that I've got the engine oil cooler, DCT cooler, power steering cooler and radiator for my E92 M3”
Ryan Stewart
verified badge Verified purchase

Product Description

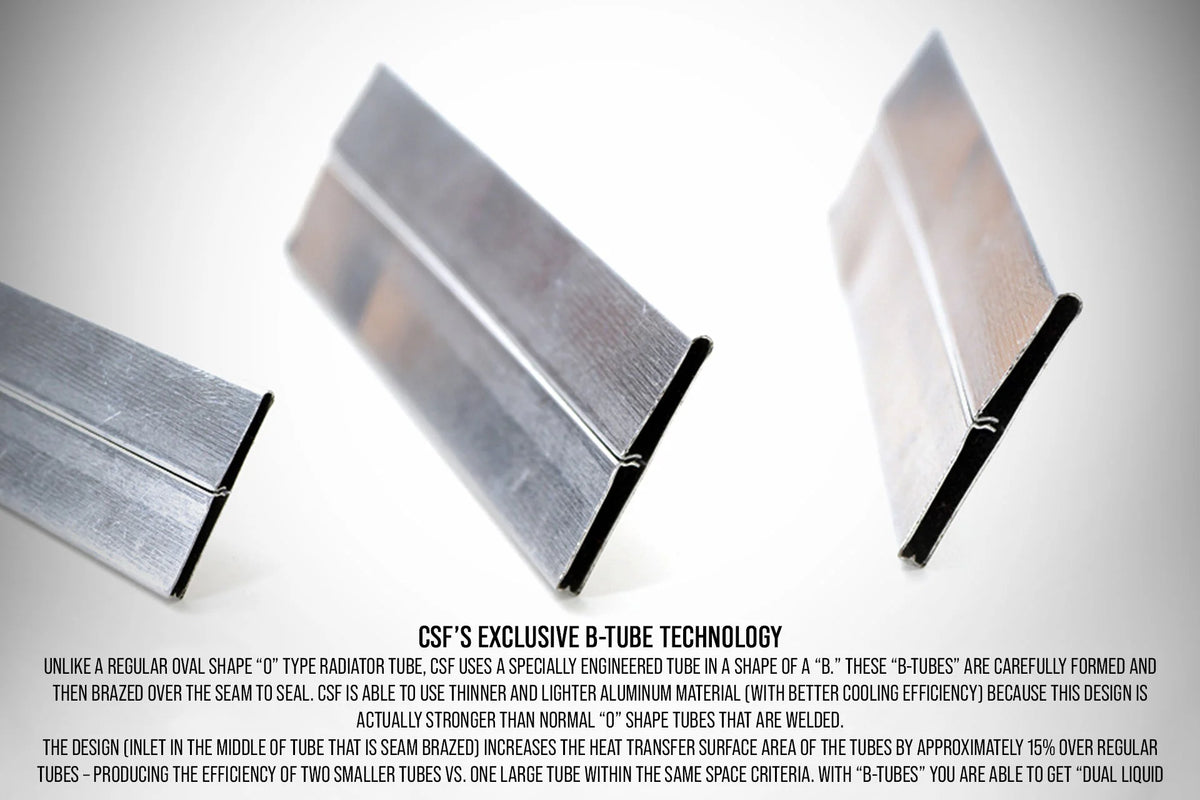

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your E9X M3 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.The CSF E9X M3 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

Features

  • 2 Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology

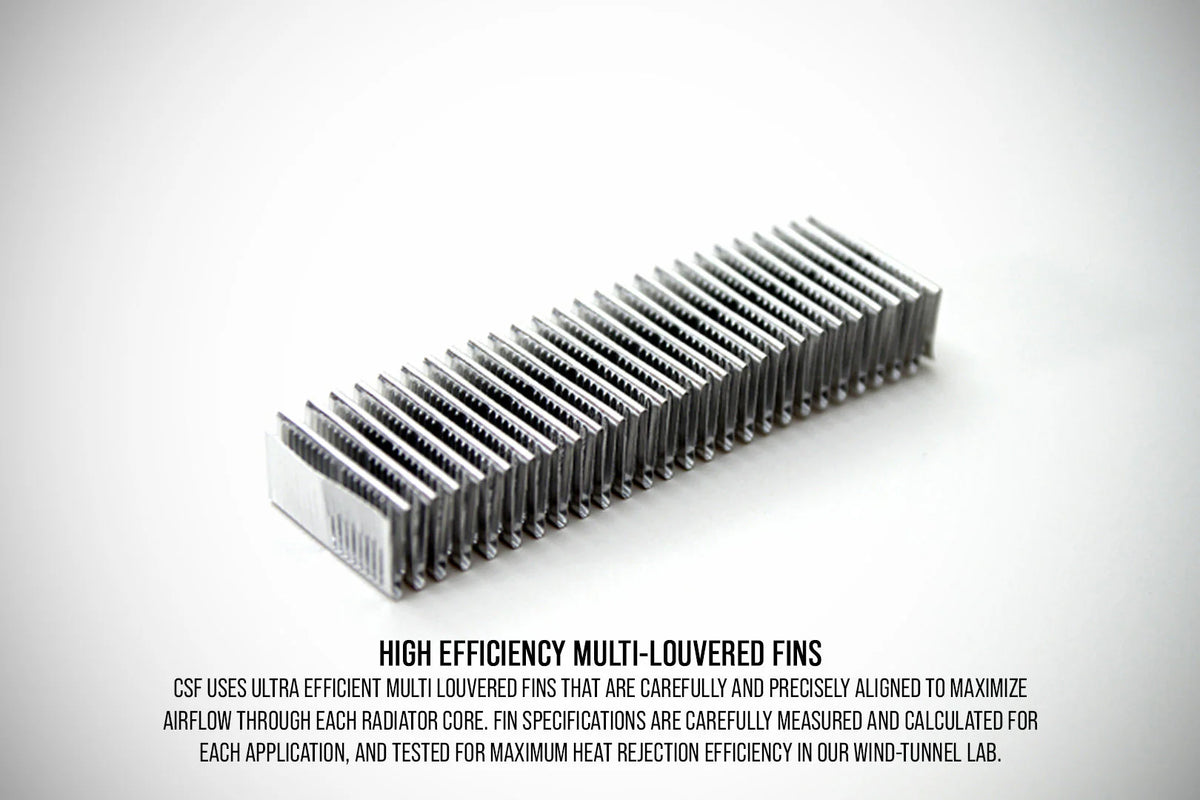

  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • Triple-Pass Flow Structure Allows the Coolant to Flow Across the Core of the Radiator Three Times Before Exiting for Lowest Outlet Temperatures Possible
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • All-Aluminum Race Style Drain Plug
  • Smooth Satin Finish
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • Replaces OEM Part Number: 17112283468

Applications

  • 2008-2013 BMW E90 M3 - 4.0L V8
  • 2009-2013 BMW E92 M3 - 4.0L V8
  • 2009-2013 BMW E93 M3 - 4.0L V8

OEM Part Numbers

  • BMW: 17112283468

Shipping Information

Same-day shipping for in-stock items when ordered before 2PM. UK delivery via DPD next day and European & Rest of World deliveries are carried out by DHL.

Returns & Guarantee

2 years warranty on CSF products. 14-day no quibble returns. See our warranty & returns pages for more information.

0 Reviews

BUILD QUALITY AND PERFORMANCE IS GREAT
star_rating

BUILD QUALITY AND PERFORMANCE IS GREAT

“Used these radiators to keep my track Porsche cool and also my supercharged E39 in check. Build quality and performance is great, so much so that I've got the engine oil cooler, DCT cooler, power steering cooler and radiator for my E92 M3”
 Ryan Stewart
verified badge Verified purchase

frequently asked questions

Does this radiator require any modifications to fit?

Unless noted in the listing, this radiator does not require any modifications to be made to fit.

Is this radiator in-stock?

We keep 1000s of radiators, intercoolers, cores and other cooling products in-stock at any one time. If you urgently require a product please message the team prior to ordering to confirm stock availability.

What is the installation procedure?

Installation is the reverse of removal. Installation will require some competence and skills to carry out . Manufacturers provide paid access to manuals whereby you can find detailed instructions on how to replace radiators, the tools required and any other specific notes.

I don’t want to fit myself, can you fit it for me?

Yes we have fitting facilities at our Southampton facility and throughout our specialist dealer network in the UK and Europe.

What coolant do you recommend using?

We recommend using the manufacturer specified with our radiators.
