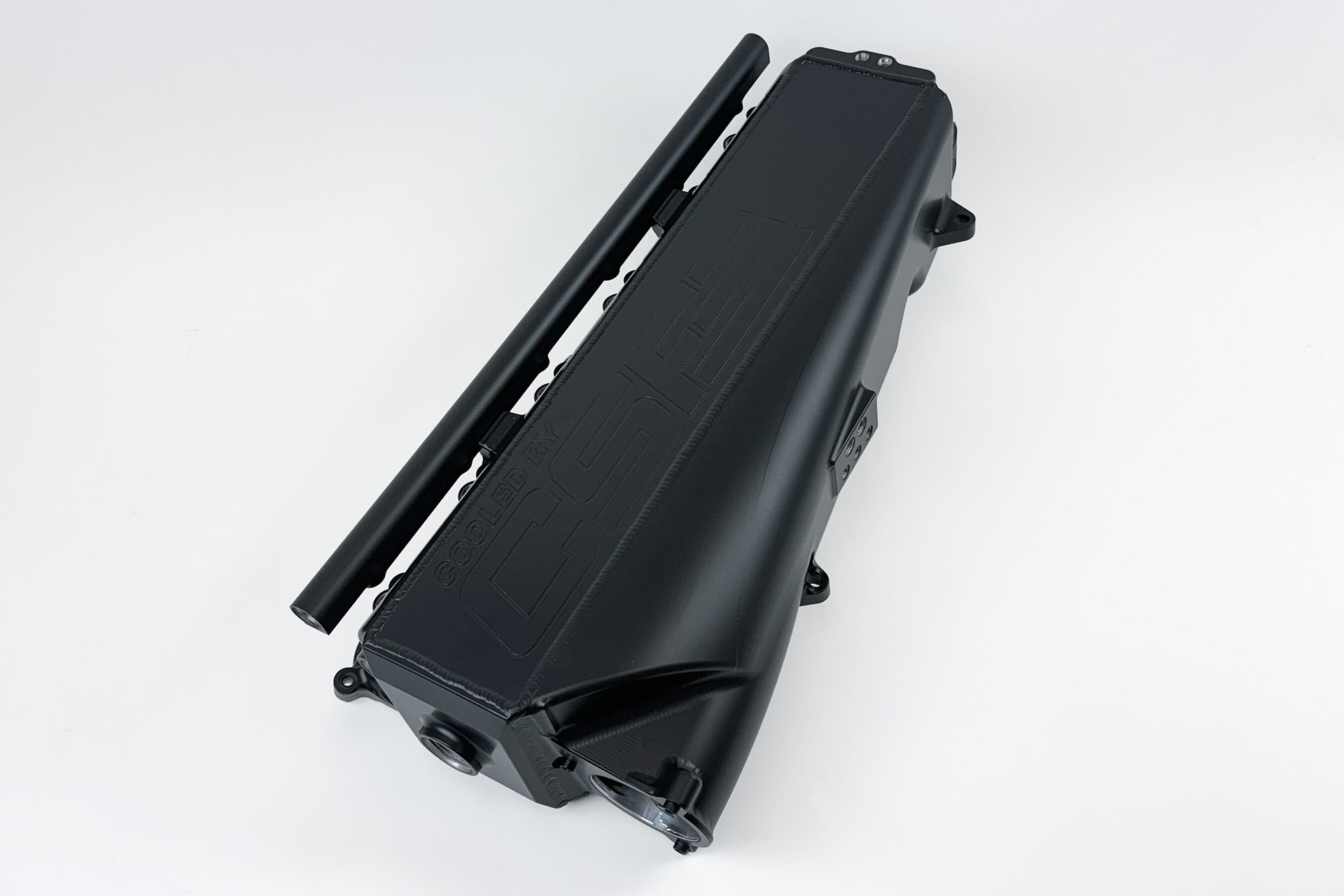

The Race X Manifold is designed for high level motorsports competition and racing applications. The limits of the current Super Manifold are very high and more than enough for many enthusiasts, tuners, and racers. However, those looking to push their Gen 2 B58s to the maximum have been asking for more. Race X features a 25% larger core, additional parameter ports, and an optimized water flow system. The manifold can be used in either dual or single pass configurations and features a new front port that has been optimized for ice box setups. This is the most versatile and largest manifold available on the market and has been race tested on some of the fastest B58 powered drag cars in the world.

The massive amount of research and development that went into the Super Manifold paid dividends when developing the Race X Manifold. That combined with all of the real world testing performed by race teams and tuners, CSF had all the information needed to begin the process of designing this brand new manifold. The main goals when designing the new manifold were to increase air flow capacity and cooling capacity. Using Computational Fluid Dynamics (CFD) software CSF's team of engineers worked tirelessly on producing a manifold that would meet the demands of the most serious competitive drivers while offering the most features possible.

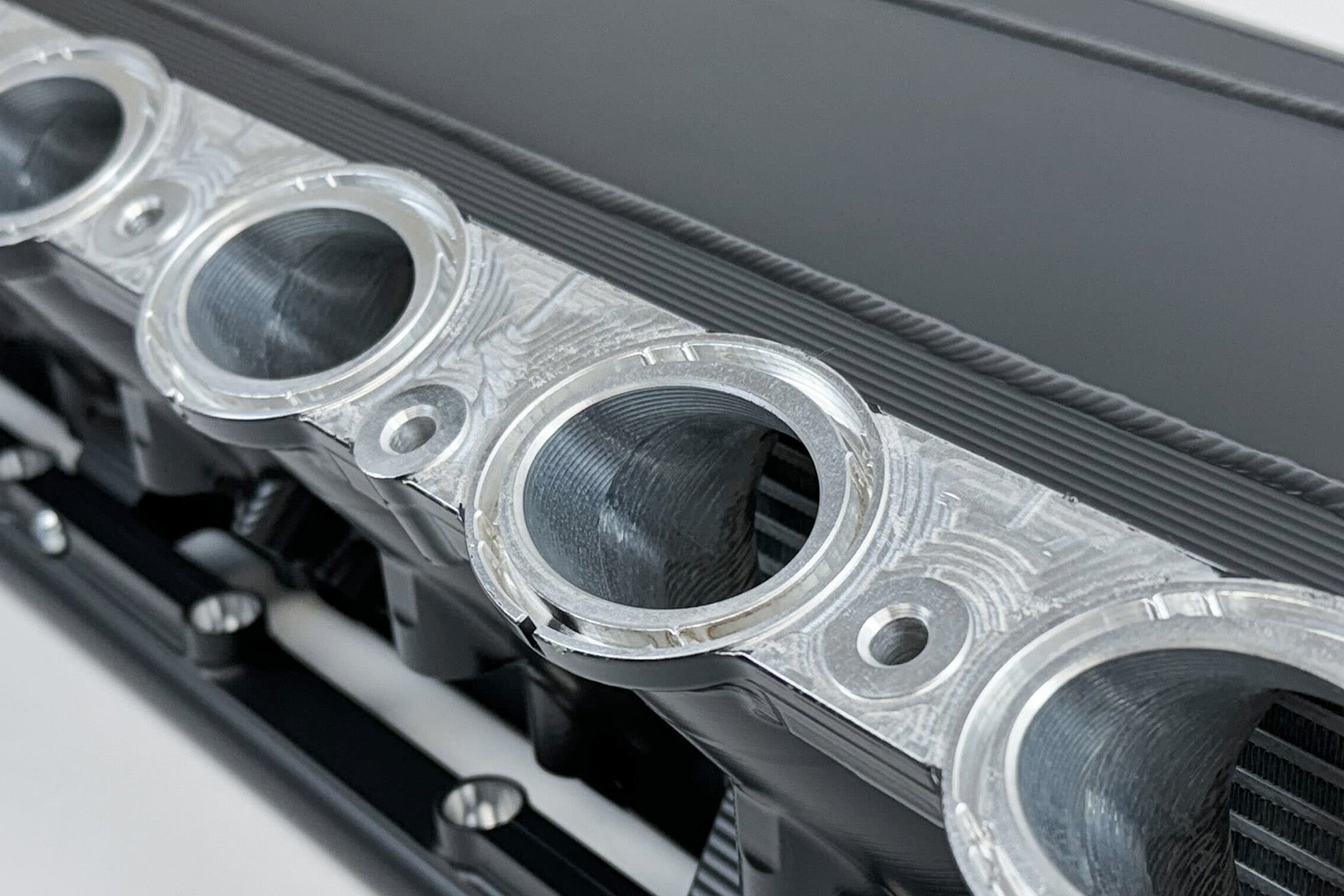

Once you get into that 1000hp+ range on the B58, most aftermarket manifolds have reached their limits in terms of flow and cooling capacity. To resolve both limitations, CSF increased the size of the core by 25% over the #8200. The larger core has 15 cooling rows (vs 12 rows on the CSF #8200) and keeps up with the air flow demand while also increasing the cooling capacity.

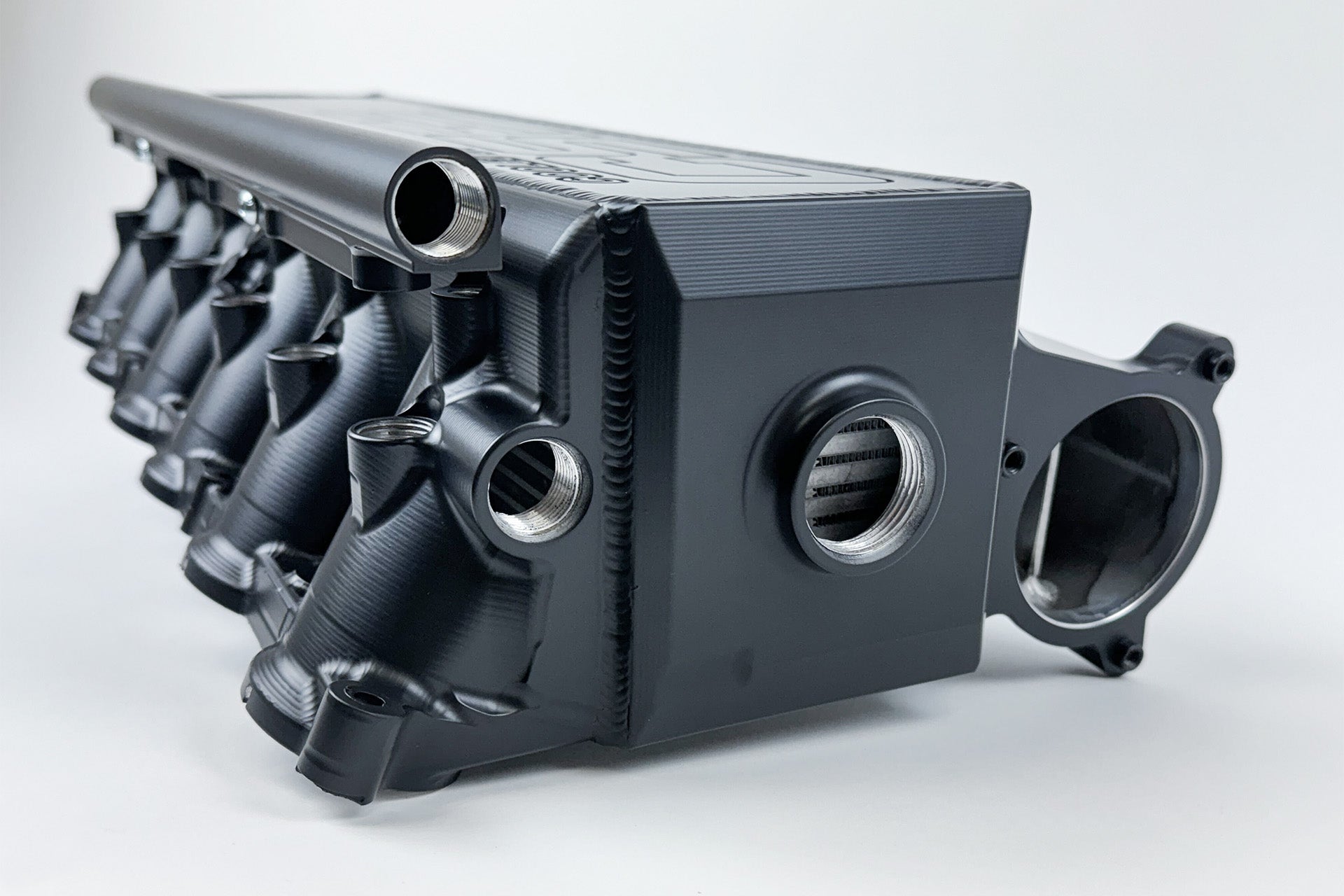

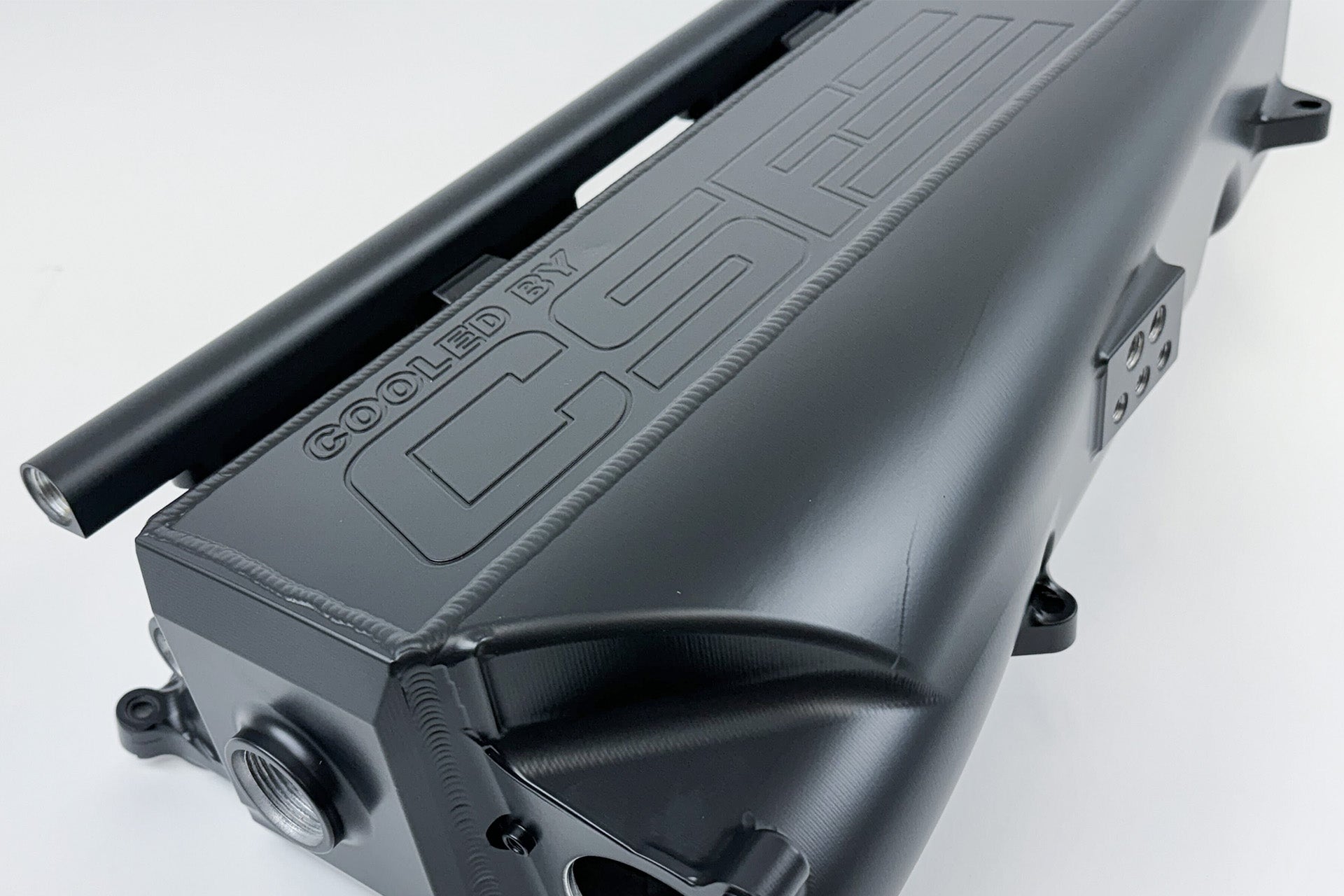

CSF specifically designed the front water end plate of the manifold to allow for a single pass setup or ice box setup. This -16 ORB bung found on the front water plate is the largest available on any aftermarket B58 manifold (competitor's unit uses a -12 fitting). CSF has teamed up with industry leading fitting and hose experts Brown and Miller (BRMS) to optimize the water flow out of the front plate. CSF recommends using the following BRMS fittings with a maximum fitting angle of 120 degrees. BRMS: AC-16-M3-120 (Black) and BRMS: AC-16-M4-120 (Blue). BRMS is recommended by CSF because there are no flow restrictions on their fittings and are highly regarded as the best in the motorsport industry.

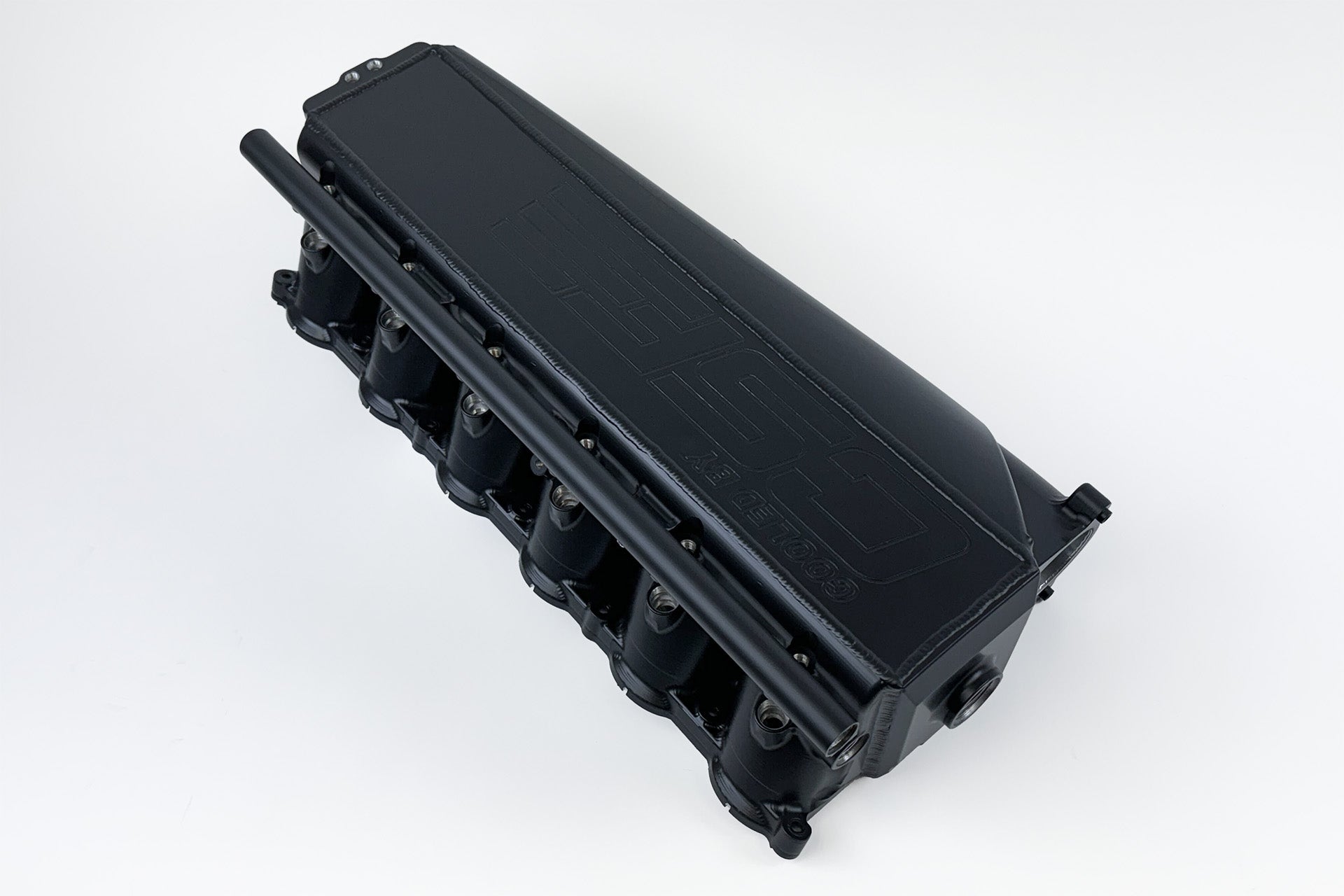

The CSF Manifold includes an extruded fuel rail which attaches to the outlet side of the manifold. The AN-8 fuel rail comes with a -8 internal hex plug fitting. This allows you to run a returnless fuel system or a full loop setup. A 1/8" NPT port on each cylinder runner can be used for nitrous or methanol injection. The CSF manifold allows for maximum spray control and even spray distribution throughout the engine.

CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4" NPT ports to go along with the standard three 1/8" NPT ports. Each port can be plugged with the included hardware kit if they are not used.

CSF incorporated a recessed design towards the back of the manifold that allows easy access to the spin-off oil filter. This means you do not have to remove your manifold every time you want to change your oil.

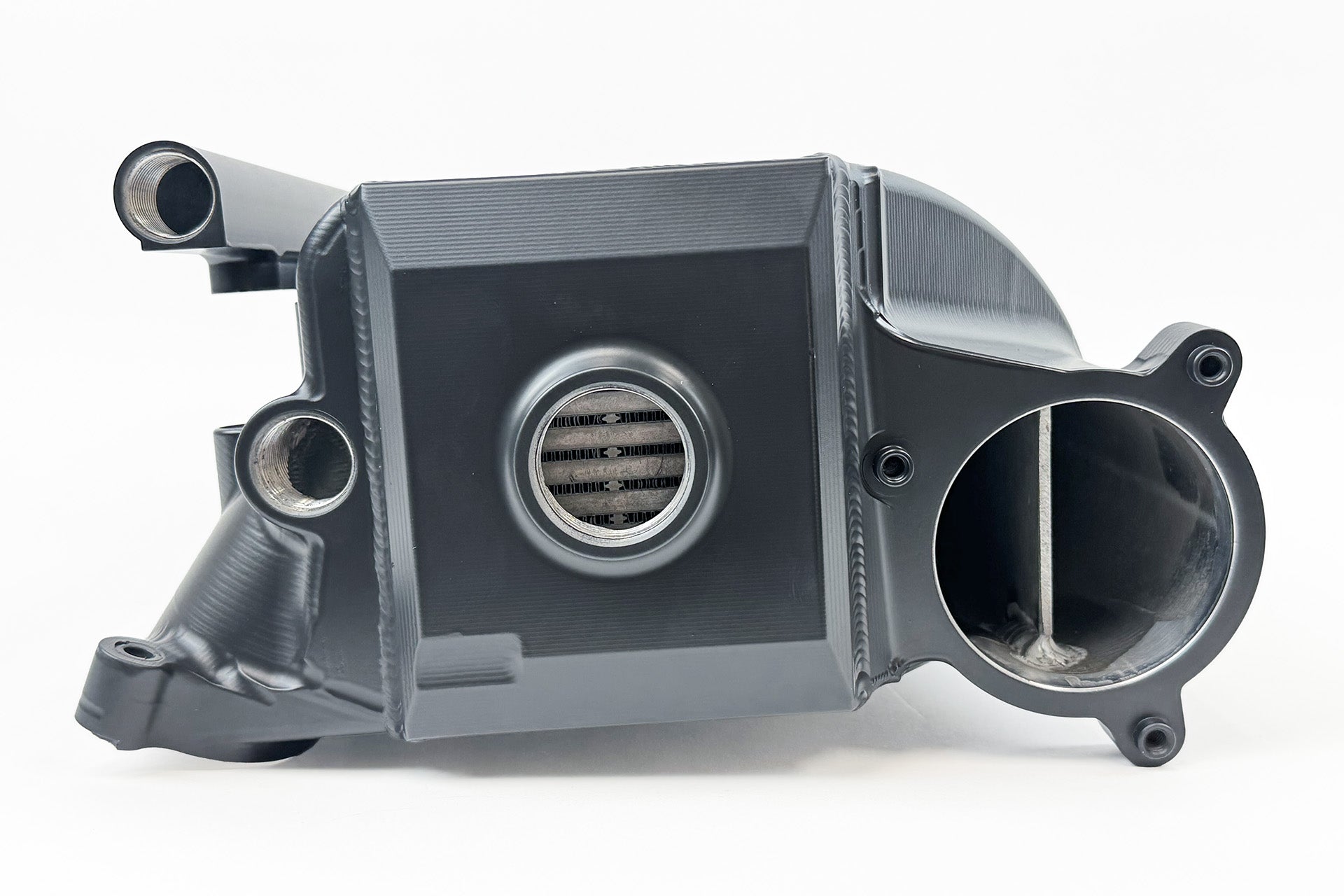

The inclusion of an air divider welded into the inlet side tank of the manifold is another exclusive feature of the CSF manifold. With the length of the manifold, the engineers at VF Engineering wanted to make sure that the volume and velocity of air was consistent to all cylinders. The inlet has an air divider to ensure the best possible airflow and equal cooling performance to each cylinder. Airflow to the back of the manifold (cylinders four, five, and six) should be equal to the airflow to the front of the manifold (cylinders one, two, and three) for the best possible performance.

Two 1/8" NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.

Positioning the manifold in the engine bay is fairly straightforward. However, it can be a little frustrating to get the bolt holes on the intake side mounting tabs lined up perfectly. After doing a few test fittings CSF realized this could be resolved by slotting the mounting tabs. This allows the bolts to be installed before final positioning adjustments and makes installation a bit easier.

Thermal Rejection Competition Spacer: Made from KIYLEX®, a patented revolutionary high-performance final stage polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX® Intake Manifold Spacer for the B58 Motor.

The supplied hardware kit includes all of the brackets, bolts, washers, and CNC machined fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind. This is a Racing Product and intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform

Features

• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
• Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
• Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Improved slotted mounting holes on throttle body side for easier installation
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes
• Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
• Included Fuel Rail for Top Feed Port Injection
• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance
• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
• Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
• Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
• Includes Hardware and Installation Kit with Picture Diagrams and Instructions
• Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet - CSF #8400 or Custom Finishes - CSF #8400C)
• Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

Applications

• 2020-2023 BMW 540i - Turbocharged 3.0L L6
• 2020-2023 BMW 540i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW 740i - Turbocharged 3.0L L6
• 2020-2022 BMW 740i xDrive - Turbocharged 3.0L L6
• 2020-2022 BMW 745e xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW 840i - Turbocharged 3.0L L6
• 2020-2024 BMW 840i Gran Coupe - Turbocharged 3.0L L6
• 2020-2024 BMW 840i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW 840i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2023+ BMW M240i - Turbocharged 3.0L L6
• 2023+ BMW M240i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW M340i - Turbocharged 3.0L L6
• 2020-2024 BMW M340i xDrive - Turbocharged 3.0L L6
• 2021-2024 BMW M440i - Turbocharged 3.0L L6
• 2022+ BMW M440i Gran Coupe - Turbocharged 3.0L L6
• 2021-2024 BMW M440i xDrive - Turbocharged 3.0L L6
• 2022+ BMW M440i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2020-2024 BMW X3 M40i - Turbocharged 3.0L L6
• 2020-2024 BMW X4 M40i - Turbocharged 3.0L L6
• 2020-2024 BMW X5 sDrive40i - Turbocharged 3.0L L6
• 2019-2023 BMW X5 xDrive40i - Turbocharged 3.0L L6
• 2021-2023 BMW X5 xDrive45e - Turbocharged 3.0L L6
• 2020-2021 BMW X6 sDrive40i - Turbocharged 3.0L L6
• 2020-2024 BMW X6 xDrive40i - Turbocharged 3.0L L6
• 2019-2024 BMW X7 xDrive40i - Turbocharged 3.0L L6
• 2024+ Toyota GR Supra 45th Anniversary Edition - Turbocharged 3.0L L6
• 2021-2022 Toyota GR Supra A91 Edition - Turbocharged 3.0L L6
• 2023+ Toyota GR Supra A91-MT Edition - Turbocharged 3.0L L6
• 2020 Toyota GR Supra Launch Edition - Turbocharged 3.0L L6
• 2020-2024 Toyota GR Supra Premium - Turbocharged 3.0L L6
• 2024+ Toyota GR Supra Premium 45th Anniversary Edition - Turbocharged 3.0L L6
• 2020-2024 Toyota GR Supra - Turbocharged 3.0L L6

OEM Part Numbers

• BMW: 11 61 8 647 977
• BMW: 11-61-8-647-977
• BMW: 11618647977
• Toyota: 17101 WAA01
• Toyota: 17101-WAA01
• Toyota: 17101WAA01
